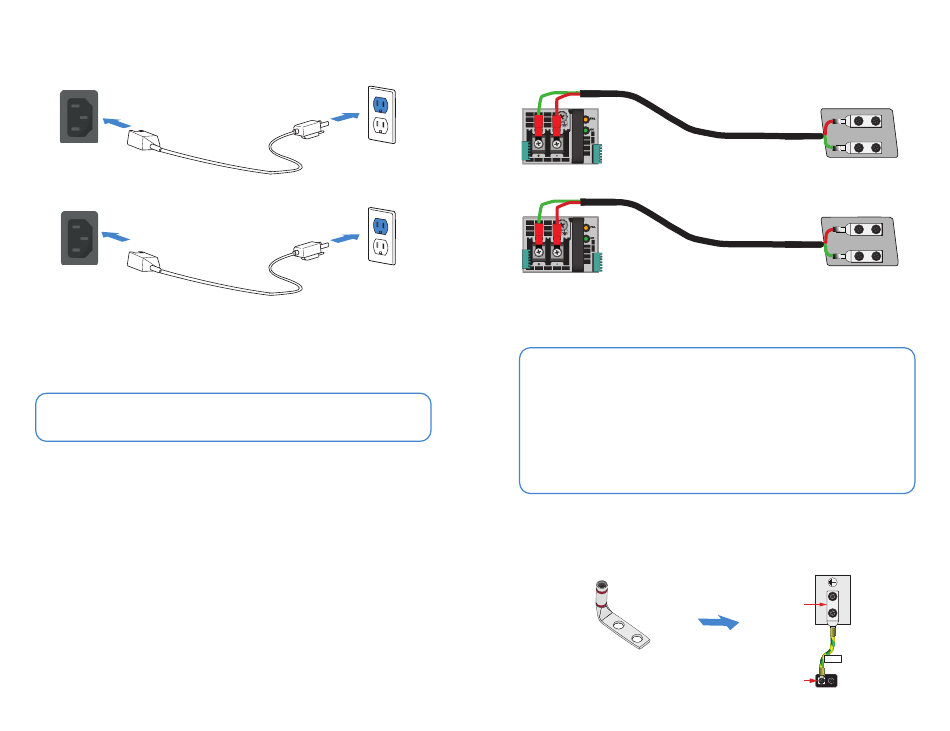

Basic Connections - AC Model
PSU1
PSU2
Plug in your device to a power outlet
Note: We recommend connecting your FortiGate to an
supply (UPS) in case of a power outage
14
Power Outlet
or UPS
Supplied Power Cable
Power Outlet
or UPS
Supplied Power Cable
using the provided power cables.
uninterruptible power
Basic Connections - DC Model
Power Cable (not included, min 12AWG)
PSU 1
Power Cable (not included, min 12AWG)
PSU 2
WARNING:
■ This product is only intended for installation and use in a Restricted Access
Location.
■ The DC power cables are intended to be used only for in-rack wiring; must
be routed away from sharp edges, and must be adequately fixed to prevent
excessive strain on the wires and terminals.
■ DC cables must be a minimum of 12 AWG.
■ Ensure the terminal rings are securly and safely fastened to the PSU terminals.
Ground connection
A grounding lug is provided with DC models to be used with a 12 AWG ground wire.
Supplied Grounding Lug
DC Power Terminals
DC Power Terminals
FortiGate
Chassis
ground
ground
connector
connector
(green)
(green)
12 AWG
Data
GND
Center
ground Central office
connector ground system
