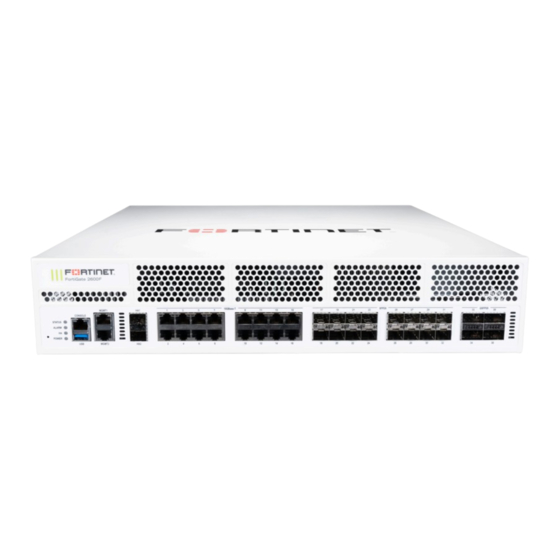

- Page 1 QuickStart Guide FortiGate 2600F / 2601F -DC...
-
Page 2: Before You Begin
Copyright© 2021 Fortinet, Inc. All rights reserved. Fortinet®, FortiGate®, FortiCare® and FortiGuard®, and certain other marks are registered trademarks of Fortinet, Inc., in the U.S. and other jurisdictions, and other Fortinet names herein may also be registered and/or common law trademarks of Fortinet. All other product or company names may be trademarks of their respective owners. -
Page 3: Box Includes
Box Includes FortiGate 2600F/2601F -DC 2x AC Power Cables 1x Console Cable (AC models only) QuickStart Guide 1x Ethernet Cable 2x SFP+ Transceivers 12x Bracket Screws 2x Grounding Lugs 6x DC Terminal Rings (DC models only) (DC models only) 2x Rack-Mount Brackets 6x Rubber Feet... - Page 4 Front Panel FG-2600F Series FortiGate 2600F 10GBase-T SFP28 QSFP28 MGMT1 CONSOLE MGMT2 Ports 1 to 16 (RJ45) Bottom LED Indicators Port LED Port LED STATUS ALARM Green: Connected at 10Gbps or 1Gbps Green: Operating normally Red: Major alarm Flashing Green: Transmitting data Flashing Green: Booting up Amber: Minor alarm...
- Page 5 Rear Panel AC Models CAUTION/ATTENTION SHOCK HAZARD. DISCONNECT ALL POWER SOURCES. RISQUE D’ÉLECTROCUTION. DÉBRANCHEZ TOUTES LES SOURCES D’ALIMENTATION. PSU2 PSU1 Redundant Power Supplies (x2) 100-240 VAC, 7-3A, 50/60Hz PSU LED Status Green: Power supply providing power Flashing Green: Power supply not providing power Off: Error or no power Red: AC cord unplugged or AC power lost Flashing...
- Page 6 Rear Panel DC Models CAUTION/ATTENTION SHOCK HAZARD. DISCONNECT ALL POWER SOURCES. RISQUE D’ÉLECTROCUTION. DÉBRANCHEZ TOUTES LES SOURCES D’ALIMENTATION. PSU2 PSU1 Redundant DC Power Supplies (x2) -48Vdc to -60Vdc, 12-14A max PSU LED Status Green: Input and output operating normally Flashing Green: Input power present, no output Off: Error or no power Amber: No input power, redundant supply is on Flashing Amber: Power supply warning events...
-
Page 7: Rack Installation
Mounting Rail Assembly Caution: Ensure there is at least 1.5 inches of space above and below the device Warning: For safety, it is recommended that two people install the device For more information, please visit http://docs.fortinet.com Note: The optional rail kit... - Page 8 Basic Connections - DC Model Basic Connections - AC Model Power Outlet Power Cable (not included, min 12AWG) PSU1 or UPS DC Power Terminals PSU 1 Supplied Power Cable Power Cable (not included, min 12AWG) Power Outlet DC Power Terminals PSU2 PSU 2 or UPS...
-
Page 9: Sfp Installation
SFP Installation Setup Options To install the SFP transceivers: Set up your device locally. Choose one of the following options to complete your setup. Slide the SFP into the cage socket until it clicks into place Lift the latch to lock the SFP Cage Socket easy-to-use... - Page 10 5. When prompted to register, enter your Fortinet credentials 1. Connect MGMT to the Management Computer using the supplied Ethernet cable 2. Enable DHCP or set the Management Computer’s subnet Static IP Address: 192.168.1.1 255.255.255.0 Subnet Mask: 3. Visit https://192.168.1.99 in a web browser 6.
- Page 11 Parity: None your device when it appears in FortiExplorer Flow Control: None Log in using your Fortinet credentials 5. You can now configure your device Console Port Management Computer USB Console Cable 1. Connect the Console Port with a console cable...
- Page 12 Avertissement: Le matériel est conçu pour être installé dans un endroit où l’accès 限用物質含有情況表 (RoHS Table) 請到以下 網址下載： est restreint. https://www.fortinet.com/bsmi Warning: A readily accessible disconnect device shall be incorporated in the 此為甲類資訊技術設備，於居住環境中使用時，可能會造成射頻擾動，在此種情 building installation wiring.
- Page 13 Fortinet.com...
