Summary of Contents for Fortinet FortiAP 231FL

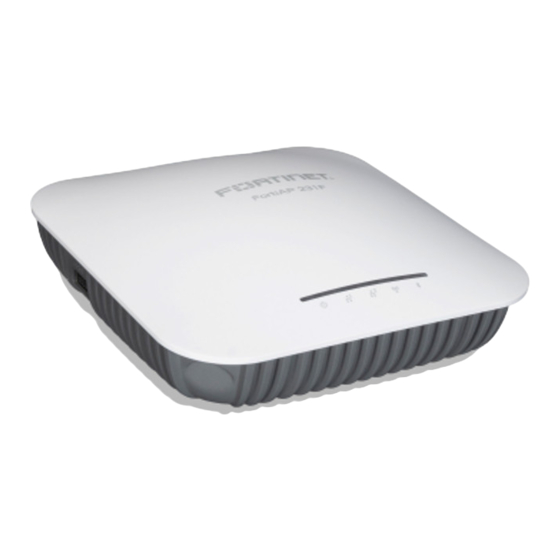

- Page 1 QuickStart Guide FortiAP 231FL FAP-231FL...
-
Page 2: Before You Begin
Fortinet. For absolute clarity, any such warranty will be limited to performance in the same ideal conditions as in Fortinet’s internal lab tests. -
Page 3: Package Contents
For contracts, licensing, product registration and account management, contact FortiCare Support at https://www.fortinet.com/support/contact Self-service Resources Access our knowledge base, forums, videos and technical experts at https://www.fortinet.com/support/support-services/forticare-support 9/16” Ceiling 15/16” Ceiling Thank you for choosing Fortinet Mounting Bracket Mounting Bracket 8x Mounting Screws with 8x Anchors... -
Page 4: Setup Options
Setup Options Power the FortiAP device with a 802.3af/at PoE injector, FortiGate PoE port or Network Connection the optional (not included) 12V 2.5A power adapter. FortiAP Cloud Ethernet Cable ( not included ) FortiAP FortiGate FortiAP Cloud LAN Port Ethernet Port Same Network https://fortilan.forticloud.com FortiAP... -
Page 5: Bracket Installation
Bracket Installation The FortiAP mounts on a ceiling using the provided T-rail mounting brackets which come in two standard sizes: 1.43cm (9/16in) and 2.38cm (15/16in). 1. Select the bracket for the T-rail size: 1.43cm (9/16in) or 2.38cm (15/16in) 2. With the ports facing you, slide the bracket left to right 3. - Page 6 Interfaces - FAP 231FL System Status LED Indicators WiFi (5GHz & 2.4GHz 2x2 MU-MIMO) Power (PoE 802.3at or 12V DC 2.5A) Off: Radio 1 & 2 are off Off: Device is off Green: Device is on Blue: Radio 1 is on Blinking Blue: Radio 1 is transmitting data Green: Booting up...
- Page 7 This declaration is only valid for Fortinet products (including, combinations of software, firmware and hardware) provided by Fortinet or Fortinet’s authorized partners to the end customer directly for use within the EU or countries that have implemented the EU Directives and/or spectrum regulation.
- Page 8 Denna produkt överensstämmer med direktiv 2014/53/EU. Note: The full declaration of conformity for this product is available at the link below: https://site.fortinet.com/ProductRegulatory/EU The device is restricted to indoor use only when operating in the 5150 to 5350 MHz frequency range in the following countries: Compliance with 2014/53/EU Radio Equipment Directive (RED) In accordance with Article 10.8(a) and 10.8(b) of the RED, the following table provides information on the frequency bands used and the...
- Page 9 Fortinet.com...
