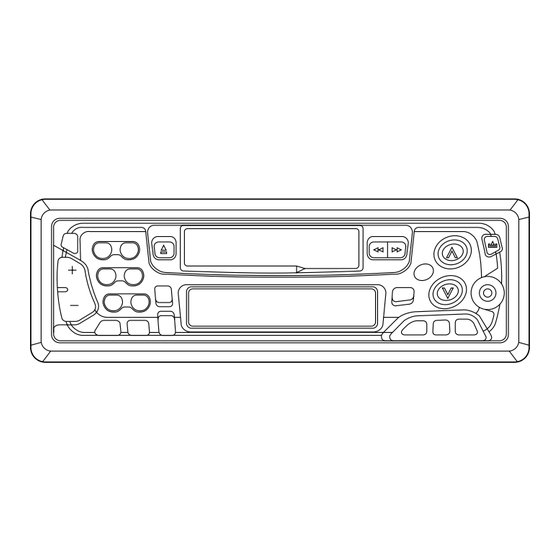

Sanyo MAR-B3089 Operating Instructions Manual

Am/fm stereo radio with full detachable panel and auto-reverse cassette player iso mounting with removable trim ring
Hide thumbs

Advertisement

Quick Links

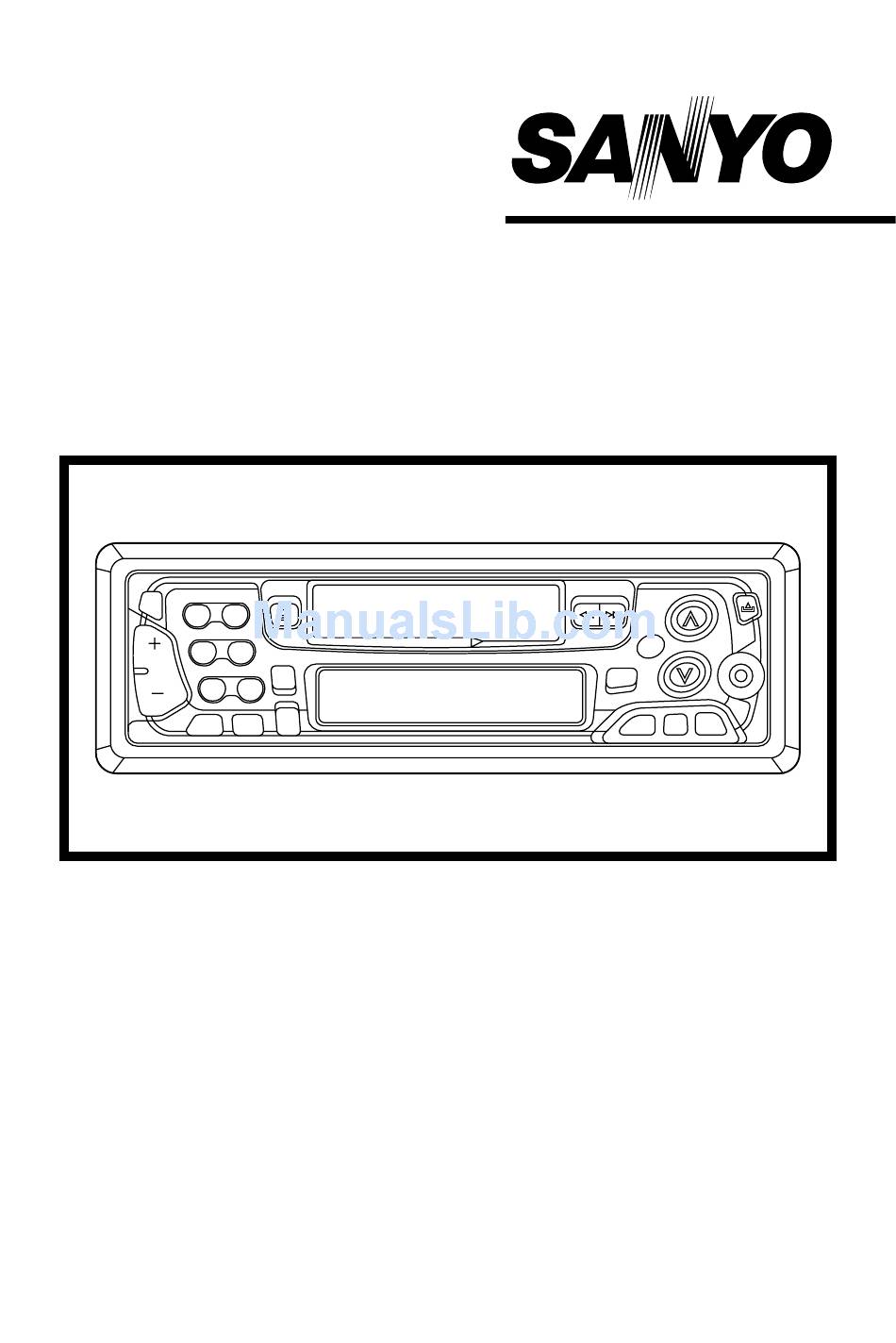

OPERATING
INSTRUCTIONS
MAR-B3089
AM/FM Stereo Radio with
Full Detachable Panel and
Auto-Reverse Cassette Player
ISO Mounting with
Removable Trim Ring

Advertisement

loading

  Related Manuals for Sanyo MAR-B3089

  Summary of Contents for Sanyo MAR-B3089

  • Page 1 OPERATING INSTRUCTIONS MAR-B3089 AM/FM Stereo Radio with Full Detachable Panel and Auto-Reverse Cassette Player ISO Mounting with Removable Trim Ring...
  • Page 2: Table Of Contents

    CONTENTS Accessories ...1 DIN Front-Mount (Method A) ...2 Installation...3 Electrical Connections...4 - 5 Using the Detachable Front Panel...6 - 7 Operation...8 - 11 Specifications ...12 Warranty...13...
  • Page 3: Accessories

    If servicing is required, return the unit to an authorized SANYO mobile audio dealer. • Changes or modifications not expressly approved by SANYO may void the user’s authority to operate this equipment. • This device complies with Part 15 of the FCC Rules. Operation is subject to the...
  • Page 4: Din Front-Mount (Method A)

    DIN FRONT-MOUNT (METHOD A) Installation with the rubber bushing Installation without the rubber bushing Removing the unit 1. Dashboard 2. Half Sleeve After inserting the sleeve into the dashboard, select the appropriate tabs according to the thickness of the dashboard material, then bend them outward to secure the sleeve in place.
  • Page 5: Installation

    Note: • Before installing the unit, connect the wiring temporarily and verify that the unit is operating properly. • Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions. • Consult your dealer if the installation requires drilling of holes, or other modifications to the vehicle.
  • Page 6: Electrical Connections

    ELECTRICAL CONNECTIONS WIRING FOR MAR-B3089 Caution • DO NOT connect any speaker wires to the metal body or chassis of the vehicle. • Connect each speaker wire directly to each speaker terminal. • All speaker common (–) wires must remain floating.
  • Page 7 - When fuse replacement is necessary, remove the blown fuse by opening the Filter Box, then install a new 10 amp fuse (switched power supply) or 0.5 amp fuse (constant power supply). - RCA Line Out Jacks Connect a patch cable (not supplied) from the White (left channel) and Red (right channel) RCA line output jacks to the line input terminals of an external amplifier.
  • Page 8: Using The Detachable Front Panel

    USING THE DETACHABLE FRONT PANEL To Detach the Front Panel 1. Press the release button (REL). The right side of the panel will release from the main unit. 2. Remove the front panel by pulling the left-hand side outward. 3. For safekeeping, store the front panel in the supplied protective case immediately after removing it.
  • Page 9 To Reinstall the Front Panel 1. First, align the left side of the panel with the front of the unit, then press the right side against the unit until it clicks into place. Do not force the panel into place. 2.
  • Page 10: Operation

    CONTROLS AND FUNCTION KEYS 1. PWR (=POWER) Press the button to turn on the unit, press again to turn it off. 2. REL (=RELEASE) Press the button to detach the faceplate. 3. SEL (=SELECT) Press to select audio control mode. The desired mode can be selected as below: Volume Each mode is indicated on display.
  • Page 11 • In treble mode: While “TRE” is shown on display, press ‘ ‘ ’ to decrease the level. The treble level is updated correspondingly and its status is shown on display. • In balance mode: While “BAL” is shown on display, press ‘ press ‘...
  • Page 12 11. MOD (=MODE) Press the button to select radio, tape or CD mode. When a tape is inserted, each time the button is pressed, the next input source is selected in the following order: 12. + TUNE – (=TUNE UP/DOWN) •...
  • Page 13 16. EJECT Push down to eject the cassette tape. 17. CASSETTE COMPARTMENT Insert a cassette tape into the cassette compartment. The cassette mechanism will load it in play mode. 18. FREQUENCY DISPLAY Exhibits the current frequency and activated function state. 19.
  • Page 14: Specifications

    Operating Current Maximum ...10A Installation Size (W x H x D)...180 x 50 x 165 mm IMPORTANT INFORMATION Because its products are subject to continuous improvement, SANYO reserves the right to modify product designs and specifications without notice and without incurring any obligation.
  • Page 15: Warranty

    In order to obtain warranty service, the product must be delivered to and picked up from an Authorized Sanyo Factory Service Center at the user’s expense, unless specifically stated otherwise in this warranty. The names and addresses of Authorized Sanyo Service Centers may be obtained by calling the toll-free number listed below.
  • Page 16 21605 Plummer Street Chatsworth, CA91311 MAR-B3089. Issue Number 1. Printed in Hong Kong 88-P1020-15...
