Sealey S717 Instructions

thank you for purchasing a sealey product. manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
refer to Wear
instruction eye
manual protection
1. safety
familiarise yourself with the application, limitations and potential hazards peculiar to the spray gun.
9
Warning! disconnect the spray gun from the air supply before changing accessories, servicing or performing any maintenance.
‰
maintain the spray gun in good condition (use an authorised service agent).
9
replace or repair damaged parts. use authorised parts only. unauthorised parts may be dangerous and will invalidate the warranty.
9
Keep the spray gun clean for best and safest performance.
9
ensure that the compressed air system can supply the spray gun air consumption.
9
Wear approved safety respiratory protection and safety eye goggles.
9
if spraying isocynate based finisher, wear approved respirator/clean air breathing apparatus and cover exposed skin with latex gloves and
9
an impervious hooded coverall.
remove ill-fitting clothing. remove ties, watches, rings and other loose jewellery and tie back long hair.
9
locate the spray gun in a suitable work area. Keep area clean and tidy and free from unrelated materials and ensure that there is
9
adequate ventilation and lighting.
Keep children and unauthorised persons away from the work area.
9
When not in use, ensure that the air supply is turned off.
9
Avoid unintentional operation of spray gun.
9
the spray gun has been treated with an anti-corrosive agent at the factory and must be flushed out thoroughly with thinners before use.
9
do not point spray gun at yourself, other persons or animals.
8
do not direct air from the air hose at yourself, other persons or animals.
8
do not carry the spray gun by the hose, or yank the hose from the air supply.
8
do not exceed the maximum air pressure of 70psi.
8
do not use the spray gun for any purpose other than that for which it is designed.
8
do not allow untrained persons to operate the spray gun.
8
do not get the spray gun wet or use in damp or wet locations or in areas where there is condensation.
8
do not operate the spray gun if any parts are missing or damaged as this may cause failure and/or personal injury.
8
When not in use, disconnect the spray gun from the air supply, clean thoroughly and store safely.
9
2. introduction

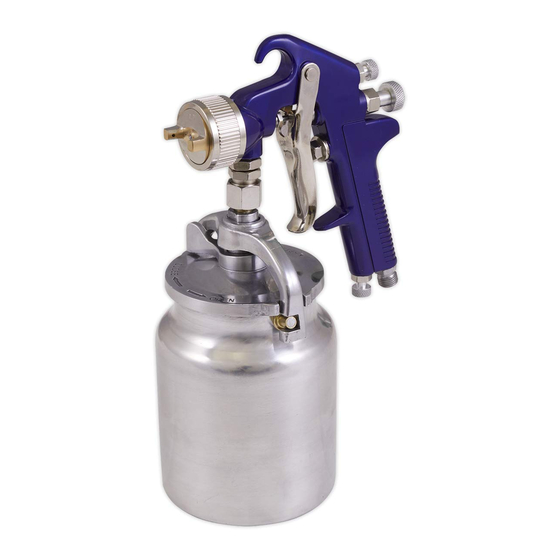

suction feed spray guns, ideal for automotive refinishing. two-stage trigger control. Adjustable spray width and fluid flow. maintenance tools
supplied. Available in three standard set-up sizes 1.7, 2 and 2.5mm each finished in different colour for easy identification. supplied with 1000ml
aluminium cup.
3. specification
model no. s717
Available set ups 2, 2.5mm
Air pressure 57psi
Air consumption 3-4cfm
Pot capacity 1000ml
4. air supply
4.1. for recommended hook-up, see fig.1. Ensure the air valve is in the "off" position before connecting to the air supply.
4.2. You will require an air supply capable of providing a pressure 60psi and an air volume of 11cfm to operate the gun.
Warning! Ensure the air supply is clean and is regulated to a maximum of 60psi. Too high an air pressure and unclean
‰
air will shorten the life of the gun due to excessive wear and may be dangerous, causing damage and/or personal injury.
4.3. drain the air supply tank and pressure regulator daily. Water in the air line will damage the gun and contaminate the paint.
4.4. clean the compressor air inlet filter weekly.
4.5. line pressure should be increased to compensate for unusually long air hoses (over 8 metres). the minimum hose diameter should be
10mm (3/8") I.D. and fittings must have the same inside dimensions.
© Jack sealey limited
instructions for
suction feed spray gun
1.7, 2.0, 2.5mm set up
model no:
Wear respiratory Wear
protection when protective
spraying gloves
isocynate
s720 s725
1.7, 2.5mm 1.7, 2.0mm
57psi 57psi
3-4cfm 3-4cfm
1000ml 1000ml
Original Language Version
s717, s720, s725
Wear Wear
protective protective
clothing footwear
Wear
face
mask
s717, s720, s725 | issue 1 08/01/19
