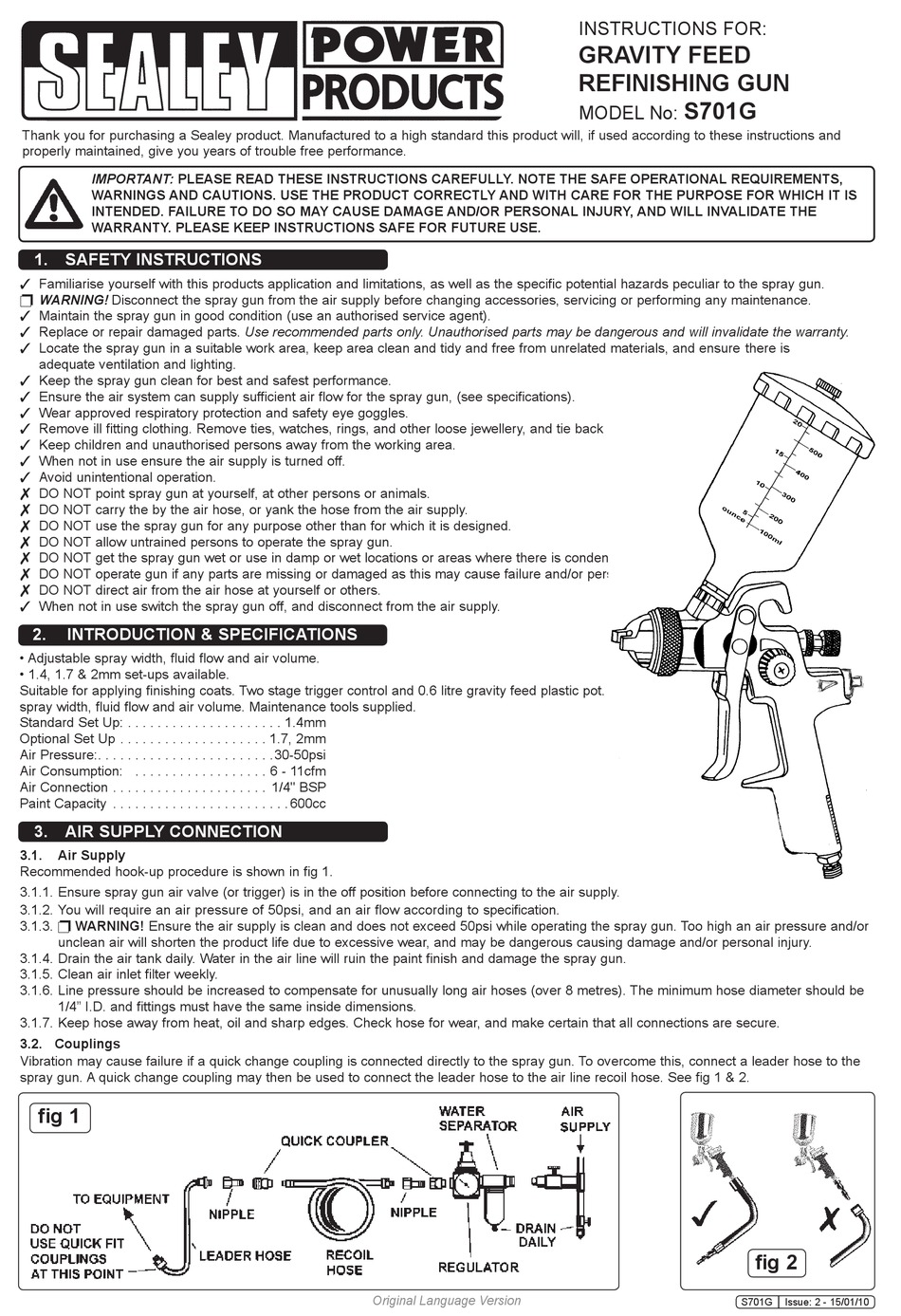

Sealey S701G Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions and
properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS,
WARNINGS AND CAUTIONS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS
INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY, AND WILL INVALIDATE THE
WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
3 Familiarise yourself with this products application and limitations, as well as the specific potential hazards peculiar to the spray gun.
p WARNING! Disconnect the spray gun from the air supply before changing accessories, servicing or performing any maintenance.
3 Maintain the spray gun in good condition (use an authorised service agent).
3 Replace or repair damaged parts. Use recommended parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
3 Locate the spray gun in a suitable work area, keep area clean and tidy and free from unrelated materials, and ensure there is
adequate ventilation and lighting.
3 Keep the spray gun clean for best and safest performance.
3 Ensure the air system can supply sufficient air flow for the spray gun, (see specifications).
3 Wear approved respiratory protection and safety eye goggles.
3 Remove ill fitting clothing. Remove ties, watches, rings, and other loose jewellery, and tie back long hair.
3 Keep children and unauthorised persons away from the working area.
3 When not in use ensure the air supply is turned off.
3 Avoid unintentional operation.
7 DO NOT point spray gun at yourself, at other persons or animals.
7 DO NOT carry the by the air hose, or yank the hose from the air supply.
7 DO NOT use the spray gun for any purpose other than for which it is designed.
7 DO NOT allow untrained persons to operate the spray gun.
7 DO NOT get the spray gun wet or use in damp or wet locations or areas where there is condensation.
7 DO NOT operate gun if any parts are missing or damaged as this may cause failure and/or personal injury.
7 DO NOT direct air from the air hose at yourself or others.
3 When not in use switch the spray gun off, and disconnect from the air supply.
2. INTRODUCTION & SPECIFICATIONS
• Adjustable spray width, fluid flow and air volume.
• 1.4, 1.7 & 2mm set-ups available.
Suitable for applying finishing coats. Two stage trigger control and 0.6 litre gravity feed plastic pot. Adjustable
spray width, fluid flow and air volume. Maintenance tools supplied.
Standard Set Up: . . . . . . . . . . . . . . . . . . . . . 1.4mm
Optional Set Up . . . . . . . . . . . . . . . . . . . . 1.7, 2mm
Air Pressure:. . . . . . . . . . . . . . . . . . . . . . . .30-50psi
Air Consumption: . . . . . . . . . . . . . . . . . . 6 - 11cfm
Air Connection . . . . . . . . . . . . . . . . . . . . . 1/4" BSP
Paint Capacity . . . . . . . . . . . . . . . . . . . . . . . . 600cc
3. AIR SUPPLY CONNECTION
3.1. Air Supply
Recommended hook-up procedure is shown in fig 1.
3.1.1. Ensure spray gun air valve (or trigger) is in the off position before connecting to the air supply.
3.1.2. You will require an air pressure of 50psi, and an air flow according to specification.
3.1.3. p WARNING! Ensure the air supply is clean and does not exceed 50psi while operating the spray gun. Too high an air pressure and/or
unclean air will shorten the product life due to excessive wear, and may be dangerous causing damage and/or personal injury.
3.1.4. Drain the air tank daily. Water in the air line will ruin the paint finish and damage the spray gun.
3.1.5. Clean air inlet filter weekly.
3.1.6. Line pressure should be increased to compensate for unusually long air hoses (over 8 metres). The minimum hose diameter should be
1/4" I.D. and fittings must have the same inside dimensions.
3.1.7. Keep hose away from heat, oil and sharp edges. Check hose for wear, and make certain that all connections are secure.
3.2. Couplings
Vibration may cause failure if a quick change coupling is connected directly to the spray gun. To overcome this, connect a leader hose to the
spray gun. A quick change coupling may then be used to connect the leader hose to the air line recoil hose. See fig 1 & 2.
fig 1
Original Language Version
INSTRUCTIONS FOR:
GRAVITY FEED
REFINISHING GUN
S701G
MODEL No:
S701G
fig 2
Issue: 2 - 15/01/10
