Sealey SG1.3G Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
Wear eye
instruction
protection
manual
1. SAFETY
Familiarise yourself with the application, limitations and potential hazards peculiar to the spray gun.
9
WARNING! Disconnect the spray gun from the air supply before changing accessories, servicing or performing any maintenance.
‰
Maintain the spray gun in good condition (use an authorised service agent).
9
Replace or repair damaged parts. Use authorised parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
9
Keep the spray gun clean for best and safest performance.
9
Ensure that the compressed air system can supply the spray gun air consumption.
9
Wear approved safety respiratory protection and safety eye goggles.
9
If spraying isocynate based finisher, wear approved respirator/clean air breathing apparatus and cover exposed skin with latex gloves and
9
an impervious hooded coverall.
Remove ill-fitting clothing. Remove ties, watches, rings and other loose jewellery and tie back long hair.
9
Locate the spray gun in a suitable work area. Keep area clean and tidy and free from unrelated materials and ensure that there is
9
adequate ventilation and lighting.
Keep children and unauthorised persons away from the work area.
9
When not in use, ensure that the air supply is turned off.
9
Avoid unintentional operation of spray gun.
9
The spray gun has been treated with an anti-corrosive agent at the factory and MUST be flushed out thoroughly with thinners before use.
9
DO NOT point spray gun at yourself, other persons or animals.
8
DO NOT direct air from the air hose at yourself, other persons or animals.
8
DO NOT carry the spray gun by the hose, or yank the hose from the air supply.
8
DO NOT exceed the maximum air pressure of 70psi.
8
DO NOT use the spray gun for any purpose other than that for which it is designed.
8
DO NOT allow untrained persons to operate the spray gun.
8
DO NOT get the spray gun wet or use in damp or wet locations or in areas where there is condensation.
8
DO NOT operate the spray gun if any parts are missing or damaged as this may cause failure and/or personal injury.
8
When not in use, disconnect the spray gun from the air supply, clean thoroughly and store safely.
9
2. INTRODUCTION

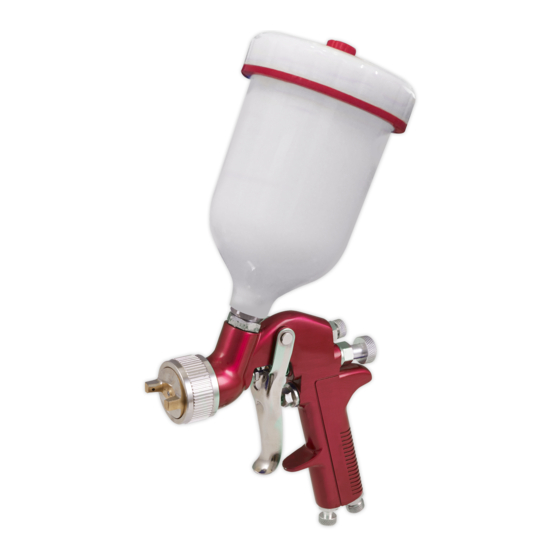

High quality professional gravity fed spray gun, ideal for automotive refinishing. Two-stage trigger control and 600ml plastic gravity feed
pot. Adjustable spray width and fluid flow. Suitable for use with water based paints. Maintenance tools supplied.
3. SPECIFICATION
Available set ups (mm): ................................... ....1.3, 1.4, 1.7
Recommended air pressure: ..................................... ....50psi
Air consumption (cfm): .......... .....................................2.5-3.5
Pot capacity (ml):.... ........................................................ .600
4. AIR SUPPLY
4.1. Air Supply
Recommended hook-up is shown in fig.1.
4.1.1. Ensure spray gun air valve (or trigger) is in the off position before connecting to the air supply.
4.1.2. You will require an air pressure of 30-70psi, and an air flow according to specification.
WARNING! Ensure the air supply is clean and does not exceed 70psi while operating the spray gun. Too high an air pressure and/or
‰
unclean air will shorten the product life due to excessive wear, and may be dangerous causing damage and/or personal injury.
4.1.3. Drain the air tank daily. Water in the air line will ruin the paint finish and damage the spray gun.
4.1.4. Clean air inlet filter weekly.
4.1.5. Line pressure should be increased to compensate for unusually long air hoses (over 8 metres). The minimum hose diameter should be
1/4" I.D. and fittings must have the same inside dimensions.
4.1.6. Keep hose away from heat, oil and sharp edges. Check hose for wear, and make certain that all connections are secure.
© Jack Sealey Limited
GRAVITY FEED SPRAY GUN
(1.3MM, 1.4MM, 1.7MM SET-UP)
MODEL NO:
Wear protective Wear protective
footwear gloves
Original Language Version
SG1.3G, SG1.4G, SG1.7G
Wear face
Wear respiratory
mask
protection when
spraying
isocynate
SG1.3G, SG1.4G, SG1.7G Issue 1 06/06/18
