thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
refer to
Wear eye
instruction
protection
manual
1. Safety
familiarise yourself with the application, limitations and potential hazards peculiar to the spray gun.
WarninG! disconnect the spray gun from the air supply before changing accessories, servicing or performing any maintenance.
R
maintain the spray gun in good condition (use an authorised service agent).
replace or repair damaged parts. use authorised parts only. unauthorised parts may be dangerous and will invalidate the warranty.
Keep the spray gun clean for best and safest performance.
ensure that the compressed air system can supply the spray gun air consumption for the model to be used.
Wear approved safety respiratory protection and safety eye goggles.
I f spraying isocynate based finisher, wear approved respirator/clean air breathing apparatus and cover exposed skin with latex gloves
and impervious hooded coverall.
R emove ill-fitting clothing. Remove ties, watches, rings and other loose jewellery and tie back long hair.
L ocate the spray gun in a suitable work area. Keep area clean and tidy and free from unrelated materials and ensure that there is
adequate ventilation and lighting.
K eep children and unauthorised persons away from the work area.
When not in use, ensure that the air supply is turned off.
Avoid unintentional operation of spray gun.
T he spray gun has been treated with an anticorrosive agent at the factory and MUST be flushed out thoroughly with thinner before use.
dO nOt point spray gun at yourself, other persons or animals.
dO nOt direct air from the air hose at yourself, other persons or animals.
dO nOt carry the spray gun by the hose, or yank the hose from the air supply.
dO nOt exceed the working pressure of 43psi (3bar).
dO nOt use the spray gun for any purpose other than that for which it is designed.
dO nOt allow untrained persons to operate the spray gun.
dO nOt get the spray gun wet or use in damp or wet locations or in areas where there is condensation.
dO nOt operate the spray gun if any parts are missing or damaged as this may cause failure and/or personal injury.
When not in use, disconnect the spray gun from the air supply, clean thoroughly and store safely.
2. intrOductiOn
Gravity feed spray gun designed for applying clear finishing coats. Air cap engineered to provide 26psi of mist pressure for fast application and
extended working distance. Greater efficiency than HVLP and less wastage than conventional spray guns. MVMP Technology and precision
engineering delivers consistant and unrivalled results. Features air and laquer flow controls for fine adjustment of spray pattern.
3. SPecificatiOn
Model no: ............................................................... MVMP01
standard set up: .......................................................... 1.3mm
Available set ups: ................................... 1.2, 1.4, 1.7, 1.8mm
Air pressure: ............................................................. 30-43psi
Air consumption: ....................................................... 10.6cfm
Pot capacity: ................................................................ 600ml
4. air SuPPly
4.1.
Recommended hook-up See fig.1
4.1.1.
ensure spray gun air valve (or trigger) is in the off position before connecting to the air supply.
4.1.2.
You will require an air pressure of 43psi, and an air flow according to specification.
WarninG! Ensure the air supply is clean and does not exceed 43psi while operating the spray gun. Too high an air pressure and/or
R
unclean air will shorten the product life due to excessive wear, and may be dangerous causing damage and/or personal injury.
4.1.3.
Drain the air tank daily. Water in the air line will ruin the paint finish and damage the spray gun.
4.1.4.
Clean air inlet filter weekly.
© Jack Sealey Limited

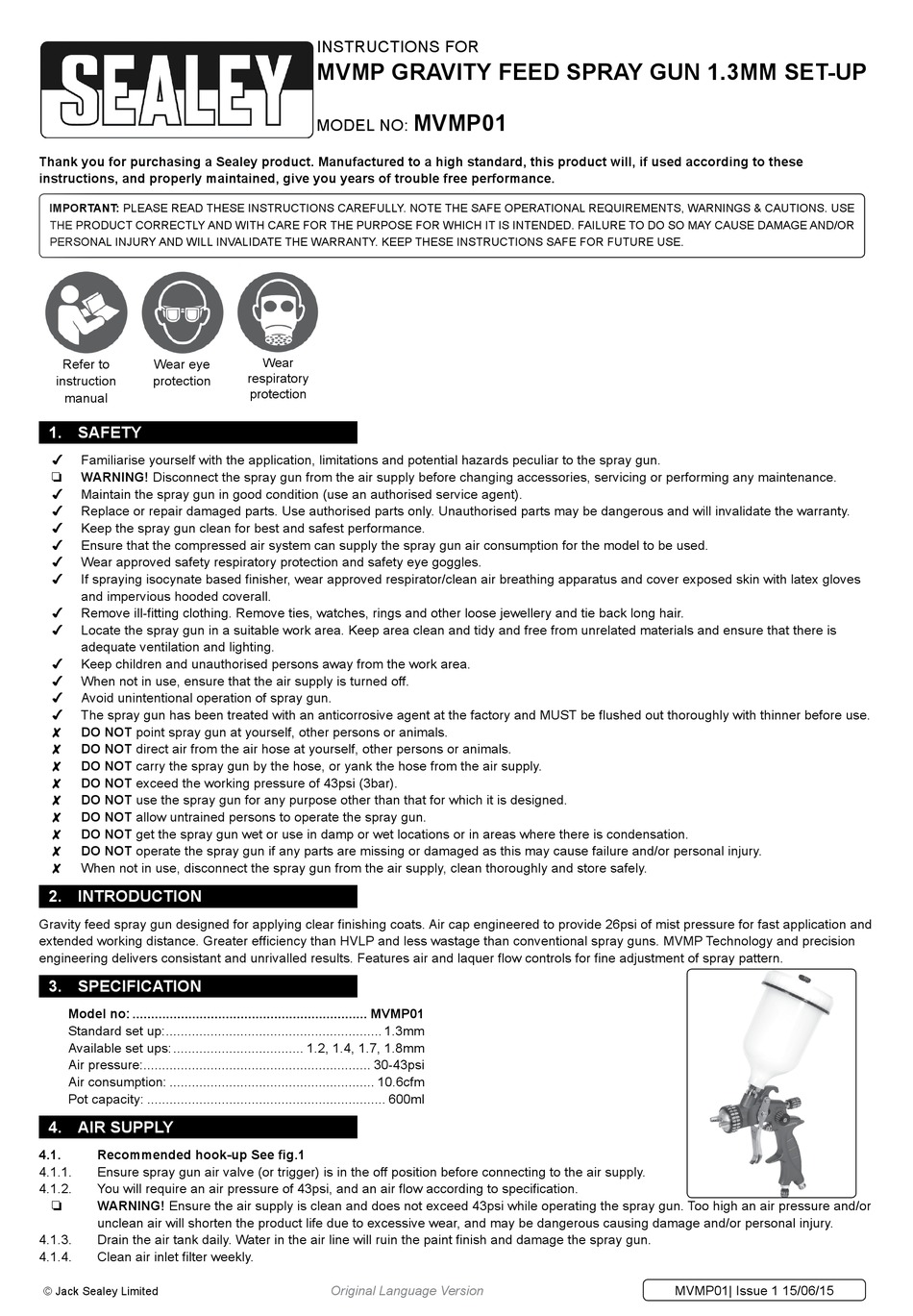

instructions for
MVMP GraVity feed SPray Gun 1.3MM Set-uP
MVMP01
model no:
Wear
respiratory
protection
Original Language Version
mVMP01| Issue 1 15/06/15
Advertisement
Summary of Contents for Sealey MVMP01
- Page 1 MVMP01 model no: thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions, and properly maintained, give you years of trouble free performance. IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED.
- Page 2 Use the needle (paint) adjustment knob (Fig.4.2) to adjust the amount of paint flow. The atomizing air flow is controlled by the control knob (Fig.4.1). The volume of air input is controlled by the adjustment knob (Fig.4.3). As width of spray is increased more material must pass through the gun to obtain the same coverage on the increased area. Turn the air nozzle (Fig.4.4) to achieve a horizontal or vertical fan spray. Lock the nozzle with retaining ring (Fig.4.5). The spray pattern of the gun is variable from round to flat with all patterns in between. In normal operation, the wings on the nozzle are horizontal (Fig.5). This provides a vertical fan-shaped pattern which gives maximum, uniform and even coverage when moving the gun back and forth, parallel to the work surface (Fig.6). fig.4 fig.3a fig.3B fig.5 fig.6 Original Language Version mVMP01| Issue 1 15/06/15 © Jack Sealey Limited...
- Page 3 Air nozzle is not completely screwed on. Parts support is available for this product. to obtain a parts listing and/or diagram, please log on to www.sealey.co.uk, email sales@sealey.co.uk or telephone 01284 757500. environmental Protection recycle unwanted materials instead of disposing of them as waste. all tools, accessories and packaging should be sorted, taken to a recycling centre and disposed of in a manner which is compatible with the environment.
