Hillsdale Furniture BAREMORE 1742-500 Quick Start Manual

HILLSDALE
FURNITURE, LLC.
Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure that all
components are in proper position, tight and free from damage. Keep this assembly instruction for future reference. Adult assembly is required.
The product of Hillsdale Furniture, LLC is designed for residential use only. Customer Service Phone Number: 502-562-0000
HARDWARE LIST
A (4) 1/4" x 3/4" Allen Bolts
B (14) 1/4" x 1" Allen Bolts
C (24) 1/4" Flat Washers
D (8) 1/4" Spring Washers
E (6) 1/4" Hex Nuts
F (1) Open Wrench
G (1) Allen Wrench
PARTS LIST
H (3) Bottom Rails
I (4) Finials
J (1) Headboard
K (1) Footboard
L (2) Side Rails
M (2) Leg Extensions
J
M
CARE & MAINTENANCE: The touch of a soft cloth is all the maintenance the finish will ever need. Please do not use harsh or abrasive cleaners for polishing,
as they may cause damage to the finish. Periodic checks are recommended to make sure that all bolts, screws and nuts are securely tightened.

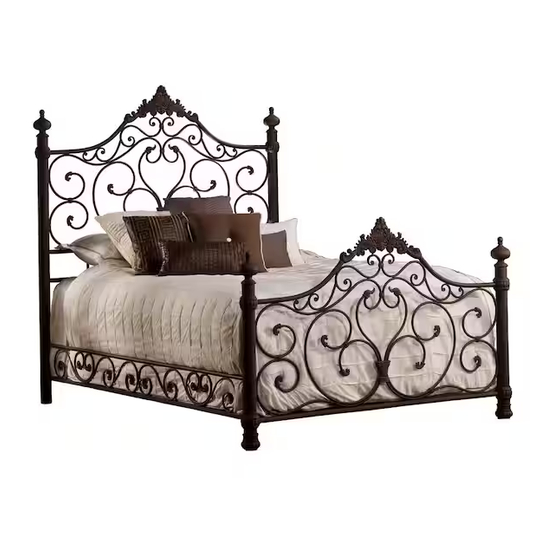

BAREMORE BED SET
Model #1742-500/550/650/660
PART
A
C
E
G
I
J
C C
A A
FIGURE 1
M
QTY HARDWARE PART
4
24
6
1
STEP 1
Begin assembly by connecting the
Leg Extensions (M) to the
Headboard (J) using 2 Allen Bolts
(A) and 2 Flat Washers (C). See
Figure 1.
STEP 2
Attach the Side Rails (L) to the
Headboard (J) with 2 Allen Bolts (B),
2 Spring Washers (D) and 2 Flat
Washers (C). See Figure 2.
STEP 3
Attach the Side Rails (L) to the
Footboard (K) with 2 Allen Bolts (B),
2 Spring Washers (D) and 2 Flat
Washers (C). See Figure 3.
M
STEP 4
Attach each Bottom Rail (H) to the
Side Rails (L) with 1 Allen Bolt (B)
and 1 Flat Washer (C) from the top
and 1 Flat Washer (C) and 1 Hex
Nut (E) from the bottom. See Figure
4. Tighten all bolts with the Allen
Wrench (G) provided and the nuts
with the Open Wrench (F) also
provided.
Date: 10-15-2012
Page 1 of 2
QTY HARDWARE
B 14
D 8
F 1
