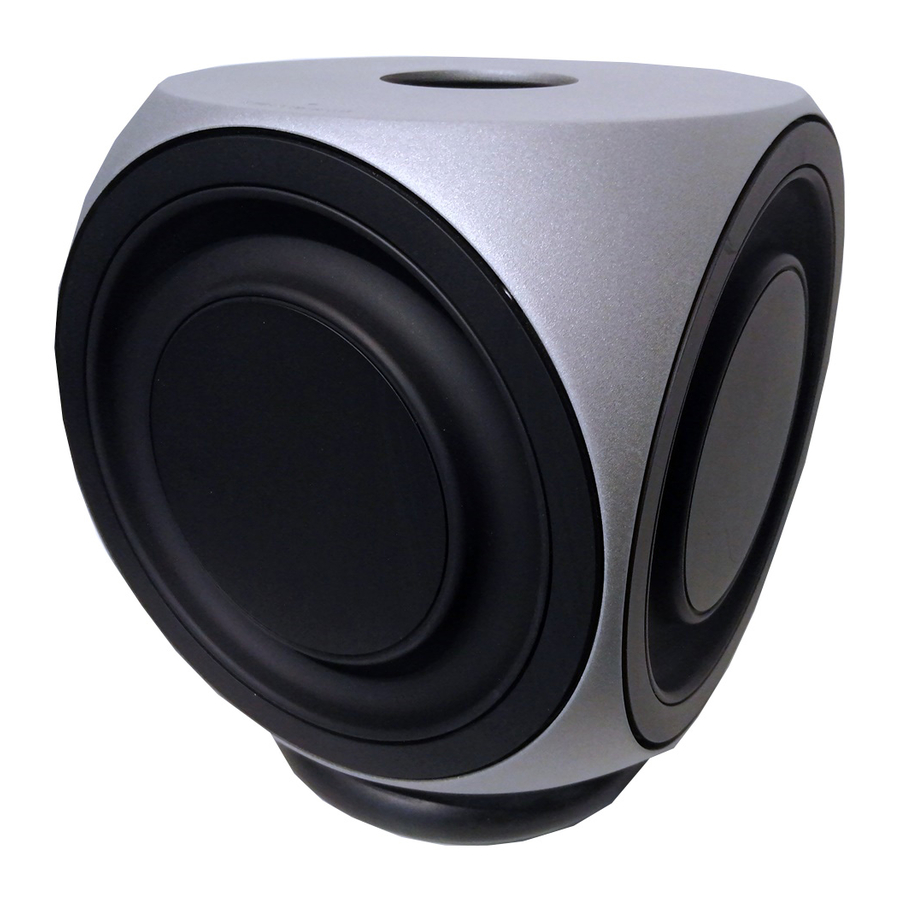

Bang & Olufsen BeoLab 2 - Speakers Manual

Introduction

RISK OF ELECTRIC SHOCK
DO NOT OPEN
To reduce the risk of electric shock, do not remove cover (or back). No User-serviceable parts inside. Refer servicing to qualified service personnel.

To prevent fire or electric shock, do not expose this appliance to rain or moisture.

This symbol indicates that a dangerous voltage constituting a risk of electric shock is present within this unit.

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit.

Contents of the Guide

This Guide describes how to connect the BeoLab 2 subwoofer, and adapt it so that it functions optimally in your speaker setup.
Likewise, the Guide provides guidelines for how to place the BeoLab 2.

Before you start...

We recommend that you follow this procedure when setting up the BeoLab 2 subwoofer:

• Read and abide by the cautionson these two pages.
• Disconnect your system fromthe mains.
• Connect your speaker system asdescribed in Connect your speaker system.
• Set the SETUP switch and thePOSITION switch to the correct settings as described in Adapt BeoLab 2 to your setup.
• Place BeoLab 2 according to theguidelines in Adapt BeoLab 2 to your setup.
• Finally, connect your system tothe mains.

To make a neat cable installation, we suggest that you run the cables through the enclosed cable cover.

Cautions

• The BeoLab 2 subwoofer is intended for use with Bang & Olufsen active (Power Link) loudspeaker systems only – it cannot be used with other speakers.

  Leave enough space for the speaker units to move – both in front and to the sides of BeoLab 2.
• Make sure that the BeoLab 2 is placed and connected in accordance with the instructions in this Guide.
• Do not in any way block the free movement of the BeoLab 2 speaker units, and do not apply any force to them, as this may result in permanent damage!

  Use the top hole as a carrying 'handle' when you lift BeoLab 2. Take care not to damage the speaker units, and never lift BeoLab 2 by gripping its sides!
• Place your BeoLab 2 on the floor on its black rubber foot.
• The BeoLab 2 is designed for indoor use in dry, domestic environments only, and for use within a temperature range of 10–40º C (50–105º F).
• Remember that all speakers in a setup must be connected to a mains outlet, and that they are designed to be connected to the mains at all times, as this allows them to switch on automatically.

  Bottom view of BeoLab 2 showing the location of the product identification label (A). If you wish to adjust the black rubber foot, place BeoLab 2 upside down and use the two adjustment screws (B).

Overview of the socket and switch panel.

Rear view of BeoLab 2 showing the location of the socket and switch panel.

Cable cover: Use the enclosed tool to seal the cable cover when you have placed both the mains cord and the Power Link cable inside it.

For safety reasons you must fasten the mains lead behind the mains cord bracket.

Connect your speaker system

You gain access to the BeoLab 2 socket panel through the hole on the rear.

For reference, when locating the sockets, use the overview on the previous page and the graphics imprinted on the socket panel.

For specific information about the other speakers and units in your Bang & Olufsen system, please refer to the Guides enclosed with these systems.

You might find it easier to "thread" the cables into the enclosed cable cover before you connect them, as shown on the previous page.

Speaker connections

Connect the BeoLab 2 to your system using the enclosed 8-pin Power Link cable.

On the next page you can see examples of three different setups: two surround sound setups, and a stereo setup. In each example it is explained which sockets to use.

Dolby Digital system: The system has a dedicated SUBWOOFER socket, and all speakers are connected directly to your Bang & Olufsen system.

Dolby Pro Logic system: This system has no dedicated subwoofer socket. The front set of speakers is connected to BeoLab 2, and BeoLab 2 is connected to your Bang & Olufsen system. The rear set of speakers is connected directly to your Bang & Olufsen system.

Stereo system: The left and right speakers are connected to BeoLab 2, and BeoLab 2 is connected to your Bang & Olufsen system

Remember to set the L • R • LINE switch to the correct setting on each of your front and rear speakers.

Connection to the mains

Connect the enclosed mains cord to the socket marked ~.

Looping the signals through from speaker to speaker: To avoid cables running from both front speakers to BeoLab 2, you may choose to loop the signal through from speaker to speaker.

Setup examples

Dolby Digital system:

• Connect one end of the cable to the socket marked IN on BeoLab 2, and the other end to the socket marked SUBWOOFER on your Bang & Olufsen system.
• Connect your front set of speakers to the sockets marked FRONT on your Bang & Olufsen system.
• Connect your rear set of speakers to the sockets marked REAR on your Bang & Olufsen system.

Dolby Pro Logic system:

• Connect one end of the cable to the socket marked IN on BeoLab 2, and the other end to one of the sockets marked FRONT on your Bang & Olufsen system.
• Connect your front set of speakers to the sockets marked OUT on BeoLab 2.
• Connect your rear set of speakers to the sockets marked REAR on your Bang & Olufsen system.

Stereo system:

• Connect one end of the cable to the socket marked IN on BeoLab 2, and the other end to one of the speaker sockets on your Bang & Olufsen system.
• Connect your left and right set of speakers to the sockets marked OUT on BeoLab 2.

Adapt BeoLab 2 to your setup

BeoLab 2 can be placed almost anywhere in a room. However, the most natural sound and best stereo/surround sound experience is obtained if BeoLab 2 is set up according to the guidelines on these two pages.

To adapt to the sensitivity of the speaker system connected to BeoLab 2, it has a SETUP switch with three settings.

To filter out the natural bass change obtained if a loudspeaker is placed e.g. in a corner, as compared to a more freestanding position, BeoLab2 has a POSITION switch with three settings as well.

Setting the SETUP switch

Use the SETUP switch to adapt the output from BeoLab 2 to the sensitivity levels of the different BeoLab speakers.

The switch has three settings (1, 2, and 3), and which switch setting to choose depends on your speaker setup. The table to the right shows which setting to use with the different models of BeoLab speakers.

If, for example, you have a pair of BeoLab 1 speakers connected to BeoLab 2, you should set the SETUP switch to 1, and so on...

If you have a Dolby Digital system, and therefore no speakers are directly connected to BeoLab 2, we recommend that you set the SETUP switch to 3.

Placement – guidelines

Placement is flexible and easy with BeoLab 2. Due to its relative small size it can easily be integrated in most home environments, and may be placed almost anywhere you wish in the room.

However, to obtain the most natural sound you should place BeoLab 2 on the floor in the front half of the room, and with the front speaker unit facing your listening position.

If you connect BeoLab Penta to BeoLab 2, we recommend that you set the INPUT LEVEL switch on the BeoLab Penta to its middle position.

Ideally BeoLab 2 should be placed at about the same distance from your favourite listening position as the front set of speakers, that is, the left, (centre) and right speakers. If possible, you should choose a placement between the two front speakers.

Setting the POSITION switch

Use the POSITION switch to ensure that the bass response suits the placement of BeoLab 2, and thus the surroundings.
Which switch setting to choose depends on the distance from BeoLab 2 to the walls and corners of the room.

The POSITION switch has three settings:

CORNER: Use this setting if BeoLab 2 is placed in a corner – shown by the dark grey areas and no closer to a corner than approx. 150 cm (60") – shown by the medium grey areas along the walls in the illustration.

WALL: Use this setting if BeoLab 2 is placed closer than approx. 50 cm (20") to a wall, and no closer to a corner than approx. 150 cm (60") – shown by the medium grey areas along the walls in the illustration.

FREE: Use this setting if BeoLab 2 is placed more than approx. 50 cm (20") from the wall – shown by the light grey area in the illustration.

The dimensions mentioned are guidelines only. You may, of course, set the switch to any of the three positions you prefer.

Never place BeoLab 2 behind your listening position. We recommend that you avoid placing any of your loudspeakers in the area inside the thin dotted line.

Daily use

When Beolab 2 is connected to the mains, the stand-by indicator lights up in red, indicating that BeoLab 2 is in stand-by and ready to be used.

BeoLab 2 is designed to be left in stand-by mode when not in use, i.e. the power should not be switched off at the mains.

Please note: BeoLab 2 is designed to protect itself if the active speaker unit becomes overheated. The loudspeaker protection circuit may become active after a period of playing at a high volume level.

Switching on and off – indicator

When you switch on your Bang & Olufsen system, BeoLab 2 switches on simultaneously. The red stand-by indicator light turns green, indicating that BeoLab 2 is switched on.

When you switch off your system, or mute the sound, the red indicator light appears immediately, indicating that BeoLab 2 is not in use.

Loudspeaker protection

If the active speaker unit becomes overheated, BeoLab 2 will instantly reduce the sound level. Once the situation has stabilised, the sound level is slowly returned to normal. If the speaker is played constantly at such a high level, BeoLab 2 will eventually mute the sound completely.

Should BeoLab 2 mute the sound, the indicator light turns red.

To restore the sound:

• Disconnect BeoLab 2 from the mains.
• Allow the active speaker unit time to cool off.
• Reconnect BeoLab 2 to the mains.

Should the problem persist, please contact your Bang & Olufsen retailer.

Cleaning BeoLab 2

Clean the surfaces of BeoLab 2 using a soft, lint-free cloth which you have wrung firmly in a solution of lukewarm water containing a few drops of e.g. dish washing detergent.

he speaker units may be cleaned with a vacuum cleaner, set to the lowest level.

Never use alcohol or other solvents to clean any part of your BeoLab 2!

NOTE: This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between theequipment and receiver.
• Connect the equipment into an outlet on acircuit different from that to which the receiver is connected.
• Consult the dealer or an experiencedradio/TV technician for help.

This class B digital apparatus meets all requirements of the Canadian InterferenceCausing Equipment Regulations.

For the Canadian market only!

To prevent electric shock do not use the polarized plug, attached to this apparatus, with an extension cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure.

his product fulfils the conditions stated in the EEU directives 89/336 and 73/23.
