Market Forge Industries F-GL Series Installation Operation & Maintenance

Gas stationary steam jacketed kettle

Advertisement

Quick Links

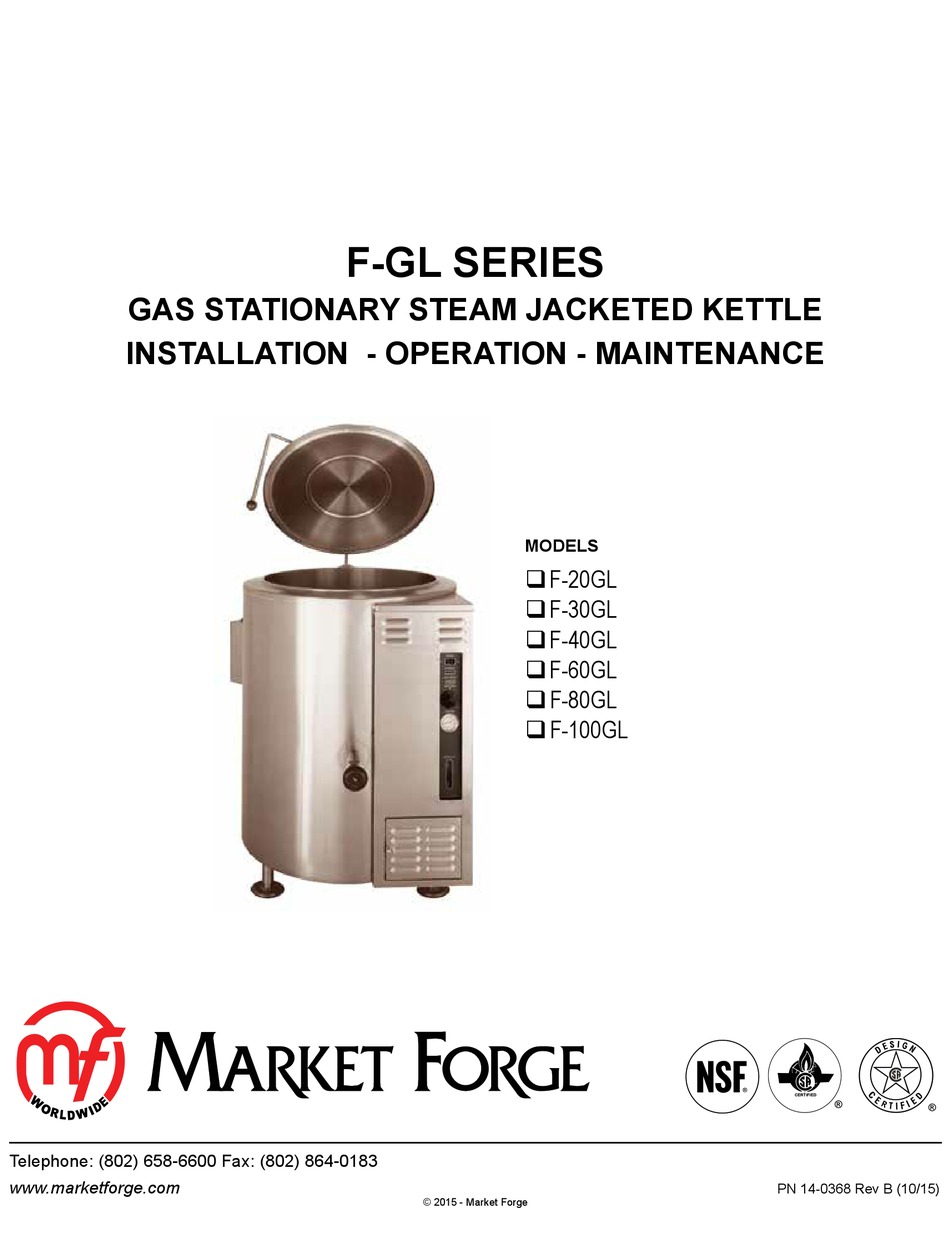

GAS STATIONARY STEAM JACKETED KETTLE
INSTALLATION - OPERATION - MAINTENANCE
Telephone: (802) 658-6600 Fax: (802) 864-0183
www.marketforge.com
F-GL SERIES
MODELS
‰ F-20GL
‰ F-30GL
‰ F-40GL
‰ F-60GL
‰ F-80GL
‰ F-100GL
© 2015 - Market Forge
PN 14-0368 Rev B (10/15)

Advertisement

loading

Summary of Contents for Market Forge Industries F-GL Series

  • Page 1 F-GL SERIES GAS STATIONARY STEAM JACKETED KETTLE INSTALLATION - OPERATION - MAINTENANCE MODELS ‰ F-20GL ‰ F-30GL ‰ F-40GL ‰ F-60GL ‰ F-80GL ‰ F-100GL Telephone: (802) 658-6600 Fax: (802) 864-0183 www.marketforge.com PN 14-0368 Rev B (10/15) © 2015 - Market Forge...
  • Page 2 Your Service Agency’s Address: Model Serial number Kettle installed by Installation checked by...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS IMPORTANT WARNING: Improper installa- INSTALLATION tion, adjustment, alternation, Service Connections ........... . . 2 service or maintenance can cause property damage, in- Installation Instructions .
  • Page 4: Service Connections

    Service Connections MODELS F-20GL, F-30GL, F-40GL & F-60GL GAS SPECIFICATIONS SERVICE CONNECTIONS SUPPLY PRESSURE MINIMUM Electrical Connection - 120 Volt, 60Hz, 1pH, furnished with 6 ft. (W.C.) CLEARANCE* MODEL BTU/Hr. kW/Hr. cord with 3 pronged plug. Total Natural Propane Sides Back Max.
  • Page 5 Service Connections MODELS F-80GL & F-100GL SUPPLY PRESSURE (W.C.) MINIMUM CLEARANCE* MODEL BTU/Hr. kW/Hr. Natural Propane Sides Back F-80GL 6”-14” (152-355) 11”-14” (279-355) 150,000 6” (152) 2” (51) F-100GL 6”-14” (152-355) 11”-14” (279-355) 150,000 6” (152) 2” (51) * Use on non-combustible floors only. SERVICE CONNECTIONS Electrical Connection - 120 Volt, 60Hz, 1Ph, furnished with 6 ft.
  • Page 6: Installation Instructions

    Installation Instructions INSTALLATION CODES AND STANDARDS CLEARANCES Installation must conform with local codes, or in the ab- Adequate clearance must be provided in aisle and at the sence of local codes, with the National side and back. Fuel Gas Code, ANSI Z223.1/NFPA 54, or the Natural Adequate clearances for air openings into the combustion Gas and Propane Installation Code, CSA B149.1, as ap- chamber must be provided, as well as for serviceability.
  • Page 7: Utility Connections

    Utility Connections WARNING ELECTRICAL GROUNDING INSTRUCTIONS This appliance is equipped with a three-prong All connections must be checked for leaks, (grounding) plug for your protection against after the unit has been put in operation. Use shock hazard and should be plugged directly soapy water only for testing on all gases.
  • Page 8: Performance Check

    Performance Check The following items should be checked before or within the first 30 days of operation by a qualified service techni- cian. 1. Verify correct gas type. 2. Verify correct voltage, cycle and phase. 3. Gas pressure. 4. Internal gas connections. 5.
  • Page 9: Operation

    Gas Start-up and Shutdown SHUTDOWN WARNING Standby In the event of main burner ignition failure, a 1. Place power on switch and thermostat to “OFF” posi- 5 minute purge period must be observed prior tion. to re-establishing ignition source. Complete WARNING 1.
  • Page 10: Instructions To Be Fol- Front Panel Controls & Operating Tips

    Front Panel Controls & Operating Tips Power Switch Appliances equipped with casters have been installed with a restraint to limit their movement to prevent dam- This switch turns the main power to the unit on and off. It age to the gas supply connecting system. If disconnection must be turned on to heat the kettle.
  • Page 11: Cleaning

    Cleaning Monthly WARNING 1. Clean around burner air mixers, louvered panels and Disconnect the power supply to the appliance pilots if grease or lint have accumulated. before cleaning or servicing. Twice a year (minimum) WARNING Have an authorized service person clean and adjust the unit for maximum performance.
  • Page 12 Cleaning DAIRY DRAW-OFF VALVE CLEANING Following daily and period maintenance procedures will prolong the life for your equipment. Climatic conditions - 1. Remove the plug by first removing the handle, then salt air - may require more thorough and frequent cleaning turn the plug to line up with the pin and pull with both or the life of the equipment could be adversely affected.
