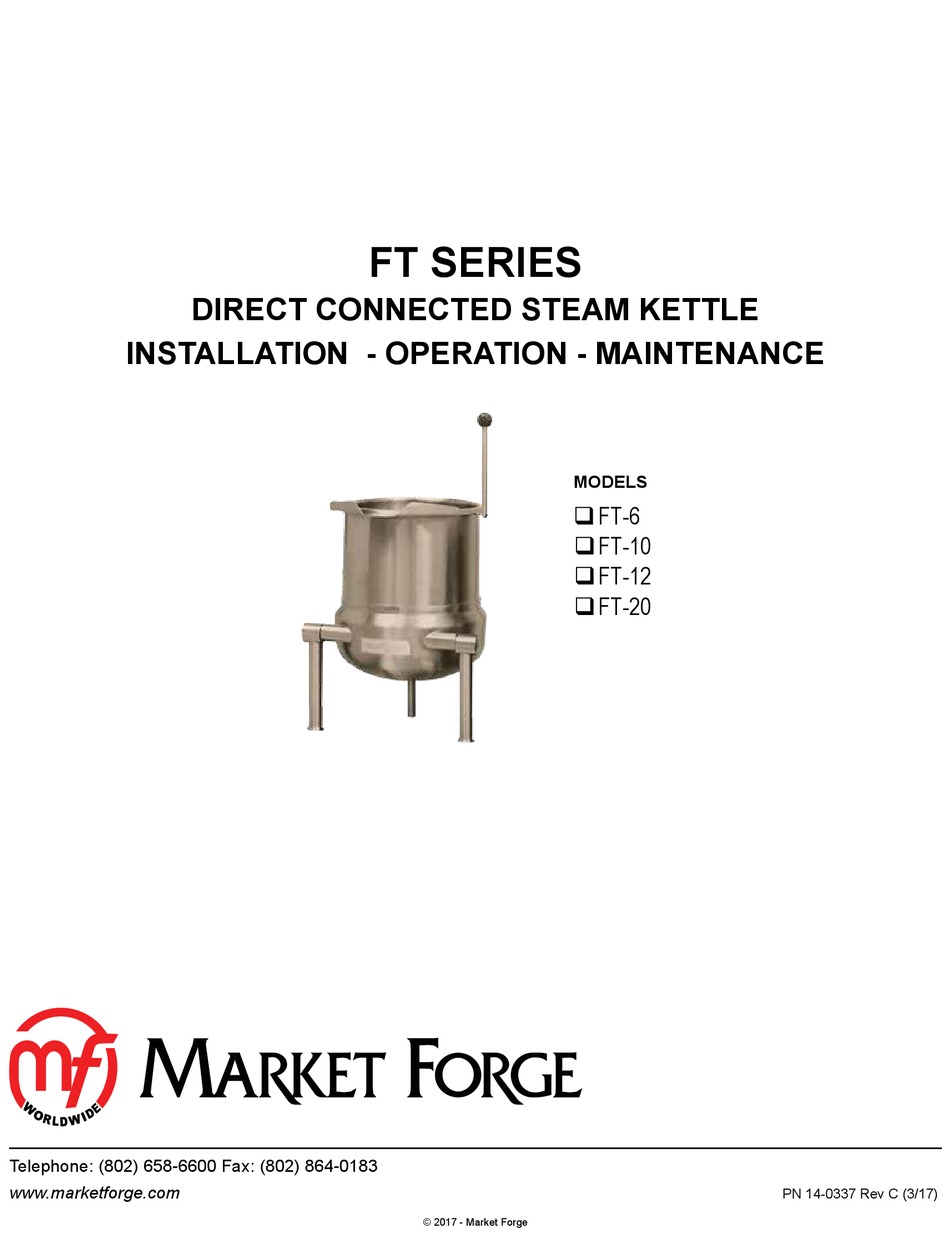

- Page 1 FT SERIES DIRECT CONNECTED STEAM KETTLE INSTALLATION - OPERATION - MAINTENANCE MODELS ‰ FT-6 ‰ FT-10 ‰ FT-12 ‰ FT-20 Telephone: (802) 658-6600 Fax: (802) 864-0183 www.marketforge.com PN 14-0337 Rev C (3/17) © 2017 - Market Forge...
- Page 2 Your Service Agency’s Address: Model Serial number Oven installed by Installation checked by...
- Page 3 TABLE OF CONTENTS IMPORTANT WARNING: Improper installa- INSTALLATION tion, adjustment, alternation, Introduction ............. . 2 service or maintenance can cause property damage, in- Service Connections .
- Page 4 Introduction GENERAL: FUNCTIONING MODE: All direct connected steam jacketed kettles pertaining to Direct connected steam jacketed kettles consist of a this manual are direct steam operated pressure vessels stainless steel bowl and a stainless steel jacket which en- of a double-wall stainless steel construction forming a velopes two thirds of the lower surface of the bowl thus steam chamber (jacket) enveloping the lower two thirds forming a sealed pressure vessel (chamber) into which...
-
Page 5: Service Connections
Service Connections DIMENSIONS 14.5 19.5 15.12 12.25 10.38 30.25 4.38 34.12 0 [0] FT-6 [305] [368] [495] [349] [127] [191] [384] [216] [311] [264] [768] [102] [111] [867] [406] 18.5 13.75 7.75 19.12 13.25 8.88 32.25 2.38 4.88 33.12 0 [0] 19.25 FT-10 [406] [381]... -
Page 6: Installation Instructions
Installation Instructions 1. These kettles must be installed on a suitable table or 6. Install a steam shutoff valve in steam supply line, counter top. preferably near the kettle for convenience. 2. On counter top make the following holes. Provide suf- 7. - Page 7 Operating & Cleaning Instructions PREVENTATIVE MAINTENANCE WARNING No preventive maintenance is required other than adher- The kettle and its parts are hot. Use care when ing to the Cleaning Procedure instructions. operating, cleaning and servicing the appli- Safety Valve Maintenance and Testing ance.
