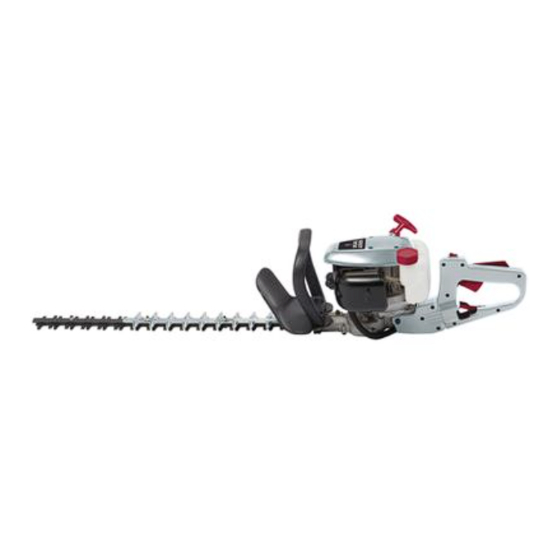

- Page 1 Anleitung SPJHT_26 11.10.2006 17:51 Uhr Seite 1 Operating Instructions Petrol Hedge Trimmer 34.038.21 SPJHT Cat-No.: 720-1297 I.-No.: 01016...
- Page 2 Anleitung SPJHT_26 11.10.2006 17:51 Uhr Seite 2 Please read these instructions carefully before installing and operating the petrol motor scythe! Petrol Engine Quick Start Guide Ensure correct fuel/oil mixture 40:1 STARTING 1. Place the machine on a hard, level surface 2.
- Page 3 Anleitung SPJHT_26 11.10.2006 17:51 Uhr Seite 3...
- Page 4 Anleitung SPJHT_26 11.10.2006 17:51 Uhr Seite 4 90° 45° 45° 90°...
- Page 5 Anleitung SPJHT_26 11.10.2006 17:51 Uhr Seite 5 0.025” (0.635 mm)
- Page 6 Anleitung SPJHT_26 11.10.2006 17:51 Uhr Seite 6...
- Page 7 Anleitung SPJHT_26 11.10.2006 17:51 Uhr Seite 7...
-
Page 8: Table Of Contents
Anleitung SPJHT_26 11.10.2006 17:51 Uhr Seite 8 Table of contents Page 1. General safety regulations 2. Layout and items supplied 3. Technical data 4. Proper use 5. Environmental protection 6. Installation 7. Before starting the machine 8. Operation 9. Maintenance 10. -
Page 9: General Safety Regulations
Anleitung SPJHT_26 11.10.2006 17:51 Uhr Seite 9 Disposal and recycling parts. We recommend that you wear strong gloves, non-slip shoes and safety goggles. 6. Stop the engine or pull the mains plug before the The unit is supplied in packaging to prevent its being following: damaged in transit. -
Page 10: Layout And Items Supplied
Anleitung SPJHT_26 11.10.2006 17:51 Uhr Seite 10 2. Layout and items supplied (Fig. 1-2) Additional safety instructions 1. Store the machine in a safe place. Carefully open the fuel tank cap beforehand to release any 1. Cutting blade pressure that may have built up in the tank. 2. -
Page 11: Proper Use
Anleitung SPJHT_26 11.10.2006 17:51 Uhr Seite 11 4. Proper use Important: Do not use a fuel mixture which has been kept for longer than 90 days. Important. This hedge trimmer is suitable for cutting Important: Do not use 2-stroke oil with a hedges, bushes and shrubs. -
Page 12: Maintenance
Anleitung SPJHT_26 11.10.2006 17:51 Uhr Seite 12 Important: The cutting bladesl will start to work Cutting the side of a hedge Cut the sides of the when the engine starts because the throttle lever hedge with curve-shaped movements from the is locked. -
Page 13: Storage
Anleitung SPJHT_26 11.10.2006 17:51 Uhr Seite 13 9.2 Maintenance of the spark plug (Fig. 12-14) at idling speed. Spark plug gap = 0.025 inch (0.635 mm). Tighten the spark plug with a torque of 12-15 Nm. If the idling speed is so fast that the cutting blades do not reach a standstill, the idling speed must be Check the spark plug for dirt and grime after 10 reduced by turning the idling speed screw (Fig. -
Page 14: Disposal
Anleitung SPJHT_26 11.10.2006 17:51 Uhr Seite 14 11.Disposal Important. The hedge trimmer is made of several different materials such as metal, liquids and plastics. Take any defective components and fluids that are no longer in use to special waste disposal points. Ask your dealer or your local council. -
Page 15: Troubleshooting
Anleitung SPJHT_26 11.10.2006 17:51 Uhr Seite 15 13. Troubleshooting Fault Possible cause Troubleshooting The machine does not start. Correct starting procedure not Follow the instructions for starting. followed. Sooted or damp spark plug Clean the spark plug or replace it with a new one. - Page 16 Anleitung SPJHT_26 11.10.2006 17:51 Uhr Seite 16 Helpline No: UK 0151 649 1500 / IRE 189 094 6244...
- Page 17 ISO 10517; EN 55012; EN 61000-6-3; EN 61000-6-1; KBV V Landau/Isar, den 04.09.2006 Wimmer Weichselgartner Product-Management General-Manager Art.-Nr.: 34.038.21 I.-Nr.: 01016 Archivierung: 3403820-22-4155050 Subject to change without notice Helpline No: UK 0151 649 1500 / IRE 189 094 6244...
- Page 18 Anleitung SPJHT_26 11.10.2006 17:51 Uhr Seite 18 GUARANTEE CERTIFICATE Dear Customer, All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card.
- Page 19 Anleitung SPJHT_26 11.10.2006 17:51 Uhr Seite 19 The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of ISC GmbH. Helpline No: UK 0151 649 1500 / IRE 189 094 6244...
- Page 20 Anleitung SPJHT_26 11.10.2006 17:51 Uhr Seite 20 Einhell UK Ltd Unit 5 Morpeth Wharf Twelve Quays Birkenhead, Wirral CH41 1LF Tel. 0151 6491500, Fax 0151 6491501 EH 10/2006 Helpline No: UK 0151 649 1500 / IRE 189 094 6244...
