Spear & Jackson SPJHT 26 Operating Instructions Manual

Spear & Jackson SPJHT 26 Operating Instructions Manual

Petrol hedge trimmer
Hide thumbs Also See for SPJHT 26:
Table of Contents

Advertisement

Quick Links

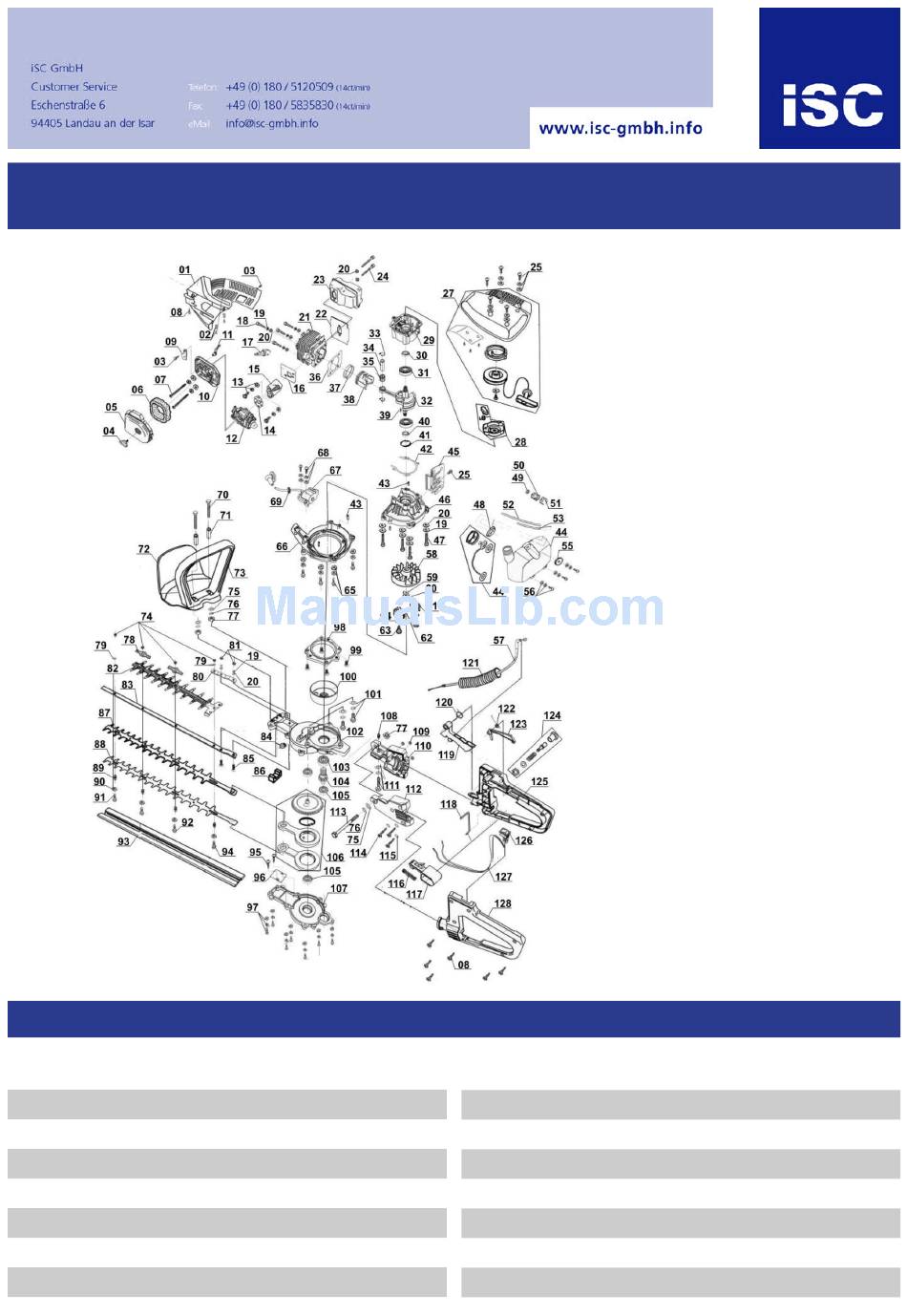

SPJHT 26
Petrol Hedge Trimmer
Komponenten / Ersatzteile
Position
Artikel-Nr.
1
340382001001
2
340382001002
3
340382001003
4
340382001004
5
340382001005
6
340382001006
7
340382001007
8
340382001008
Artikel-Nr.: 3403821
Ident-Nr.:
Beschreibung
Front engine cover
Screw assembly M4x10
Self-tapping screw M4x10
Knob
Cover of air filter
Air filter
Screw assembly M5x60
Self-tapping screw St4.2x13
01027
Position
Artikel-Nr.
9
340382001009
10
340382001010
11
340382001011
12
340382001012
13
340382001013
14
340382001014
15
340382001015
16
340382001016
Beschreibung
Choke valve
Air filter seat
Choke lever
Carburettor
Screw assembly M5x22
Carburettor gasket
Air intake seat
Air intake gasket

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPJHT 26 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Spear & Jackson SPJHT 26

Summary of Contents for Spear & Jackson SPJHT 26

  • Page 1 SPJHT 26 Artikel-Nr.: 3403821 Petrol Hedge Trimmer Ident-Nr.: 01027 Komponenten / Ersatzteile Position Artikel-Nr. Beschreibung Position Artikel-Nr. Beschreibung 340382001001 Front engine cover 340382001009 Choke valve 340382001002 Screw assembly M4x10 340382001010 Air filter seat 340382001003 Self-tapping screw M4x10 340382001011 Choke lever...
  • Page 2 Komponenten / Ersatzteile Position Artikel-Nr. Beschreibung Position Artikel-Nr. Beschreibung 340382001017 Spark plug 340382001079 Flat washer ?5 340382001018 Hex screw M5x20 340382001081 340382001021 Cylinder 340382001082 Aluminum blade guard 340382001022 Muffler gasket 340382001083 Blade supporting bar 340382001023 Muffler 340382001084 Oil-adding mouth 340382001024 Hex screw M5x50 340382001085 Cross screw M5x20...
  • Page 3 Position Artikel-Nr. Beschreibung Position Artikel-Nr. Beschreibung 340382001905 Rear crank case assy. komplett 340382001901 cover Getriebegehäuse 340382001129 tools 340382001902 gear case complete komplett 340382001130 oil 95ml 340382001903 filter 340382001131 mix bottle 340382001904 front crank case und Öldichtung...
  • Page 4 Operating Instructions Petrol Hedge Trimmer 34.038.21 SPJHT Cat-No.: 730-0631 I.-No.: 01027...
  • Page 5 Please read these instructions carefully before installing and operating the petrol motor scythe! Petrol Engine Quick Start Guide Ensure correct fuel/oil mixture 40:1 STARTING 1. Add the correct fuel mixture to unit. 2. Place the machine on a hard, level surface 3.
  • Page 7 90° 45° 45° 90°...
  • Page 8 0.025” (0.635 mm)

  • Page 11: Table Of Contents

    Table of contents Page 1. General safety regulations 2. Layout and items supplied 3. Technical data 4. Proper use 5. Environmental protection 6. Installation 7. Before starting the machine 8. Operation 9. Maintenance 10. Storage 11. Disposal 12. Ordering replacement parts 13.

  • Page 12: General Safety Regulations

    Disposal and recycling parts. We recommend that you wear strong gloves, non-slip shoes and safety goggles. 6. Stop the engine or pull the mains plug before the The unit is supplied in packaging to prevent its being following: damaged in transit. This packaging is raw material - Cleaning or removing a blockage and can therefore be reused or can be returned to - Inspection, maintenance or other work on the...

  • Page 13: Layout And Items Supplied

    2. Layout and items supplied (Fig. 1-2) Additional safety instructions 1. Store the machine in a safe place. Carefully open the fuel tank cap beforehand to release any 1. Cutting blade pressure that may have built up in the tank. 2.

  • Page 14: Proper Use

    4. Proper use Important: Do not use a fuel mixture which has been kept for longer than 90 days. Important. This hedge trimmer is suitable for cutting Important: Do not use 2-stroke oil with a hedges, bushes and shrubs. Any use which is not recommended mixing ratio of 100:1.

  • Page 15: Maintenance

    Important: The cutting blades will start to work Cutting the side of a hedge Cut the sides of the when the engine starts because the throttle lever hedge with curve-shaped movements from the is locked. bottom up. (Fig. 7) Then release the throttle lever by simply pressing it (the engine will return to idling speed).

  • Page 16: Storage

    9.2 Maintenance of the spark plug (Fig. 12-14) at idling speed. Spark plug gap = 0.025 inch (0.635 mm). Tighten the spark plug with a torque of 12-15 Nm. If the idling speed is so fast that the cutting blades do not reach a standstill, the idling speed must be Check the spark plug for dirt and grime after 10 reduced by turning the idling speed screw (Fig.

  • Page 17: Disposal

    11.Disposal Important. The hedge trimmer is made of several different materials such as metal, liquids and plastics. Take any defective components and fluids that are no longer in use to special waste disposal points. Ask your dealer or your local council. 12.

  • Page 18: Troubleshooting

    13. Troubleshooting Fault Possible cause Troubleshooting The machine does not start. Correct starting procedure not Follow the instructions for starting. followed. Sooted or damp spark plug Clean the spark plug or replace it with a new one. Incorrect carburetor setting Contact an authorized customer service outlet The machine starts but does not...
  • Page 19 Helpline No: UK 0151 649 1500 / IRE 189 094 6244...
  • Page 20 Evfrópubandalagsins og stö›lum ‰ËÏÒÓÂÈ ÙËÓ ·ÎfiÏÔ˘ıË Û˘Ìʈӛ· Û‡Ìʈӷ Ì fyrir vörur ÙËÓ √‰ËÁ›· ∂∂ Î·È Ù· ÚfiÙ˘Ô ÁÈ· ÙÔ ÚÔ˚fiÓ Petrol Hedge trimmer SPJHT 26 98/37/EG 87/404/EWG 2006/95/EG R&TTED 1999/5/EG L WM = 103 dB; L WA = 107 dB...

  • Page 21: Guarantee Certificate

    GUARANTEE CERTIFICATE Dear Customer, All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. Of course, if you would prefer to call us then we are also happy to offer our assistance under the service number printed below.
  • Page 22 The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of ISC GmbH. Helpline No: UK 0151 649 1500 / IRE 189 094 6244...
  • Page 23 Einhell UK Ltd Unit 5 Morpeth Wharf Twelve Quays Birkenhead, Wirral CH41 1LF Tel. 0151 6491500, Fax 0151 6491501 EH 09/2007 Helpline No: UK 0151 649 1500 / IRE 189 094 6244...
