Spear & Jackson S36GCBC Original Instruction Manual

36v, 2 in 1 brush cutter with grass trimmer
Hide thumbs

Advertisement

Table of Contents

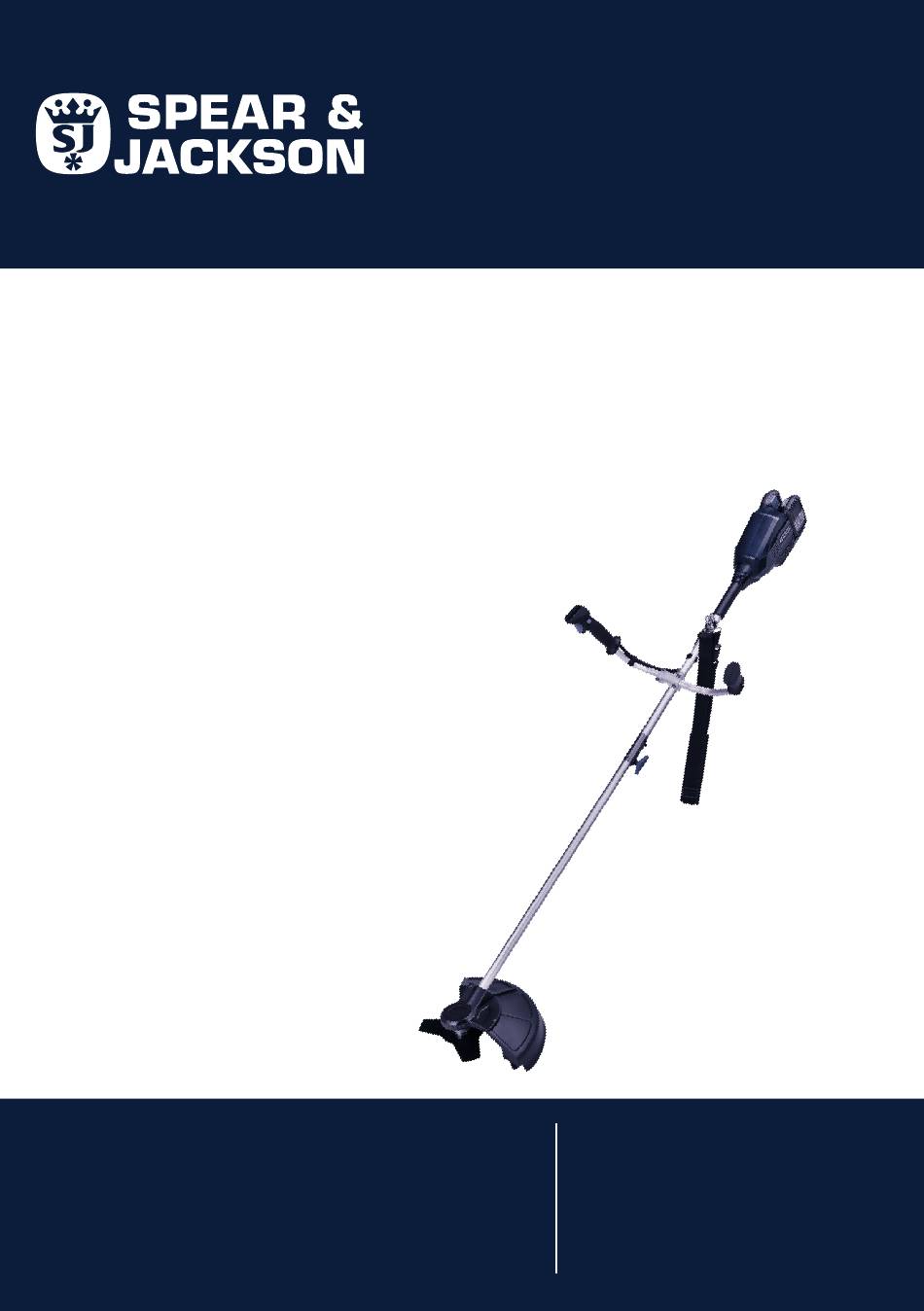

36V
2 in 1 Brush
Cutter with
Grass Trimmer
S36GCBC
Important - Please read these instructions
fully before starting assembly
These instructions contain important information that will help
you get the best from your Brush Cutter with Grass Trimmer, ensuring
it is assembled correctly and safely. If you need help or have damaged
or missing parts, call the Customer Helpline on 0345 605 2069
ORIGINAL
INSTRUCTION
MANUAL
AFTER SALES SUPPORT
0345 605 2069

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S36GCBC and is the answer not in the manual?

Questions and answers

Lin
April 10, 2025

How does battery fit into charger

0
1 comments:
Mr. Anderson
April 10, 2025

To fit the battery into the Spear & Jackson S36GCBC charger:

1. Plug the charger into an appropriate outlet; the light will turn green.
2. Slide the battery pack into the charger; the light will turn red to show charging has started.
3. When the light turns green again, charging is complete. Unplug the charger and remove the battery pack.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Spear & Jackson S36GCBC

Summary of Contents for Spear & Jackson S36GCBC

  • Page 1 ORIGINAL INSTRUCTION MANUAL 2 in 1 Brush Cutter with Grass Trimmer S36GCBC Important - Please read these instructions fully before starting assembly AFTER SALES SUPPORT 0345 605 2069 These instructions contain important information that will help you get the best from your Brush Cutter with Grass Trimmer, ensuring it is assembled correctly and safely.
  • Page 2 SPEAR & JACKSON SINCE 1760 For more than 250 years gardeners have enjoyed high quality performance and great results using Spear & Jackson tools. Our garden power tools combine continuous innovation and the latest in manufacturing technologies with a proud heritage. Each product is carefully designed with performance,comfort and durability firmly in mind,which has earned Spear &...

  • Page 3: Table Of Contents

    CONTENTS Safety information -------------------------------------------------------------------------04 Contents -----------------------------------------------------------------------------------11 Assembly ----------------------------------------------------------------------------------12 Preparation---------------------------------------------------------------------------13 Operation-------------------------------------------------------------------------------14 Maintenance------------------------------------------------------------------------22 Technical data ----------------------------------------------------------------------------24 Environmental protection ---------------------------------------------------------------26 Warranty -----------------------------------------------------------------------------------27 AFTER SALES SUPPORT 0345 605 2069...

  • Page 4: Safety Information

    SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine DESCRIPTION OF SYMBOLS The following warning symbols appear throughout this manual and indicate the appropriate safety measures you should take when operating and maintaining the Pole Hedge Trimmer. To reduce the risk of Beware of thrown objects injury, user must read...
  • Page 5 SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine GENERAL POWER TOOL SAFETY WARNINGS Do not burn WARNING: Read all safety warnings, Do not expose to rain instructions, illustrations and or water specifications provided with this power tool.Failure to follow For indoor use only the warnings and instructions may result in electric shock, fire...
  • Page 6 SAFETY INFORMATION tool outdoors, use an extension operating a power tool. cord suitable for outdoor use. Distractions can cause you to Use of a cord suitable for lose control. outdoor use reduces the risk of electric shock. 2) Electrical safety f) If operating a power a) Power tool plugs must tool in a damp location is...
  • Page 7 SAFETY INFORMATION safety principles. A careless connecting to power source action can cause severe injury and/or battery pack, picking within a fraction of a second. up or carrying the tool. Carrying power tools with your 4) Power tool use and care finger on the switch or energising a) Do not force the power power tools that have the switch...
  • Page 8 SAFETY INFORMATION e) Maintain power tools 5) Battery tool use and care and accessories. Check for a) Recharge only with the misalignment or binding of charger specified by the moving parts, breakage of manufacturer. A charger that parts and any other condition is suitable for one type of battery that may affect the power pack may create a risk of fire...
  • Page 9 SAFETY INFORMATION BRUSH CUTTER SAFETY or modified. Damaged or WARNINGS modified batteries may exhibit unpredictable behaviour resulting 1. Do not use the machine when in fire, explosion or risk of injury. the operator is tired, ill or under f) Do not expose a battery the influence of alcohol or other pack or tool to fire or drugs.
  • Page 10 SAFETY INFORMATION GENERAL SAFETY WARNINGS accidents or hazards occurring to other people or their property. WARNING: Read all safety warnings and all 2. Preparation instructions. Failure to follow the a) Before use, always visually warnings and instructions may inspect the machine for damaged, result in electric shock, fire and/or missing or misplaced guards or serious injury.
  • Page 11 SAFETY INFORMATION SAFETY WARNINGS FOR 5) whenever the machine starts BATTERY PACK vibrating abnormally. g) Take care against injury to a) Do not dismantle, open or feet and hands from the cutting shred cells or battery pack. means. h) Always ensure that b) Do not short-circuit a the ventilation openings are kept battery pack.
  • Page 12 SAFETY INFORMATION swallowed. battery pack may create a risk g) Keep battery pack clean of fire when used with another and dry. battery pack. h) Wipe the battery pack o) Do not use any battery terminals with a clean dry pack which is not designed cloth if they become dirty.

  • Page 13: Additional Safety Instructions

    SAFETY INFORMATION the hazards involved. Children models. shall not play with the appliance. 12. Ensure that the connection Cleaning and user maintenance between the battery charger and shall not be made by children battery is correctly positioned and without supervision. is not obstructed by foreign bodies.

  • Page 14: Contents

    CONTENTS PARTS Left shaft Right handle Clamp Knob Lock-off button Clamp Trigger Left handle Right shaft Lower shaft Safety guard 3-teeth blade Trimmer head Blade nut cover Line Locking Nut Line cutter Hex wrench Battery pack Shaft lock rod Battery pack pins Screw Upper shaft Charger...

  • Page 15: Assembly

    ASSEMBLY WARNING: Never operate the tool without the safety guard firmly in place. The guard must always be on the tool to protect the user. WARNING: When the tool is equipped with a trimmer head, the line cutter should be mounted onto the safety guard. Failure to comply will result in overly long cutting line and overload the motor.
  • Page 16 ASSEMBLY ATTACHING THE SHOULDER STRAP Put on the shoulder strap. (See Fig. B) Fig.B MOUNTING THE SAFETY GUARD The sheet metal is preassemble. Insert the sheet metal into the safety guard groove. (See Fig. sheet metal Align the three bigger mounting holes in safety guard and shaft base.
  • Page 17 ASSEMBLY ADJUSTING CUTTING LINE LENGTH The trimmer head allows the operator to release more cutting line without stopping the motor. As line becomes frayed or worn, additional line can be released by lightly tapping (See. Fig. E1) on the ground while operating the trimmer (See. Fig. E2) NOTICE: Line release will become more difficult if the line cutter becomes too dull.
  • Page 18 ASSEMBLY REPLACE THE TRIMMER HEAD WITH THE 3-TEETH BLADE (THE TRIMMER HEAD IS FIXED IN THE TOOL IN THE ORIGINAL PACKING ) Insert and keep the shaft lock rod into the hole of trimmer head and loosen the trimmer head by screwing it clockwise. Take away the trimmer head.

  • Page 19: Operation

    OPERATION WARNING: Do not allow familiarity with this product to make you careless. Remember that a careless action of a second is sufficient to inflict serious injury. WARNING: Always wear eye protection, along with hearing protection. Failure to do so could result in objects being thrown into your eyes and other possible serious injuries.
  • Page 20 OPERATION HOLDING THE MACHINE Hold the tool with both hands on the right side of your body. The trimmer head or blade should be parallel to the ground at a proper cutting distance without the operator bending over. (See. Fig. H) Releasing the tool can be achieved in two ways;.

  • Page 21: Maintenance

    MAINTENANCE 3) Hold the trimmer head just above the ground at an angle of about 30°. (See. Fig. J1) 4) Move the product with slow and regular horizontal movements from the right to the left and then lead it back to starting point before trimming the next row.
  • Page 22 MAINTENANCE TO REPLACE THE LINE 5.1 To replace the spool and line complete For your convenience it is recommended you buy spool and line complete. Remove old spool.(See. Fig. F1) Place new spool into cutting head. Release one line from cleat and feed line through eyelet.
  • Page 23 MAINTENANCE WARNING: Before inspecting, cleaning or servicing the unit, wait for all moving parts to stop, and remove the battery pack. Failure to follow these instructions can result in serious personal injury or property damage. WARNING: When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage.
  • Page 24 FOR BATTERY TOOLS The ambient temperature range for the use and storage of tool and battery is 0 C-45 The recommended ambient temperature range for the charging system during charging is 0 C-40 AFTER SALES SUPPORT 0345 605 2069...

  • Page 25: Technical Data

    TECHNICAL DATA 2 in 1 brush cutter with grass trimmer S36GCBC Rated voltage 2*18V Motor type brushed Brush cutter Blade diameter 230mm No load speed 5800/min Grass trimmer Line length 2*2.5m Line diameter 2.0mm Cutting width 330mm/380mm No load speed...
  • Page 26 TECHNICAL DATA Noise Information of Brush cutter A weighted sound pressure =77dB(A) K =3.0dB(A) A weighted sound power =97dB(A) K =3.0dB(A) Wear ear protection. Vibration Information Typical weighted vibration a = 3.7 m/s Uncertainty K = 1.9 m/s² Noise Information of Grass Trimmer A weighted sound pressure =95dB(A) K =2.57dB(A)

  • Page 27: Environmental Protection

    ENVIRONMENTAL PROTECTION Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. AFTER SALES SUPPORT 0345 605 2069...

  • Page 28: Warranty

    WARRANTY If your device develops a fault, please don’t hesitate to contact our customer service department on 0345 605 2069, we can solve 80% of problems via the phone. 1. These warranty terms cover additional warranty rights and do not affect your statutory warranty rights.
