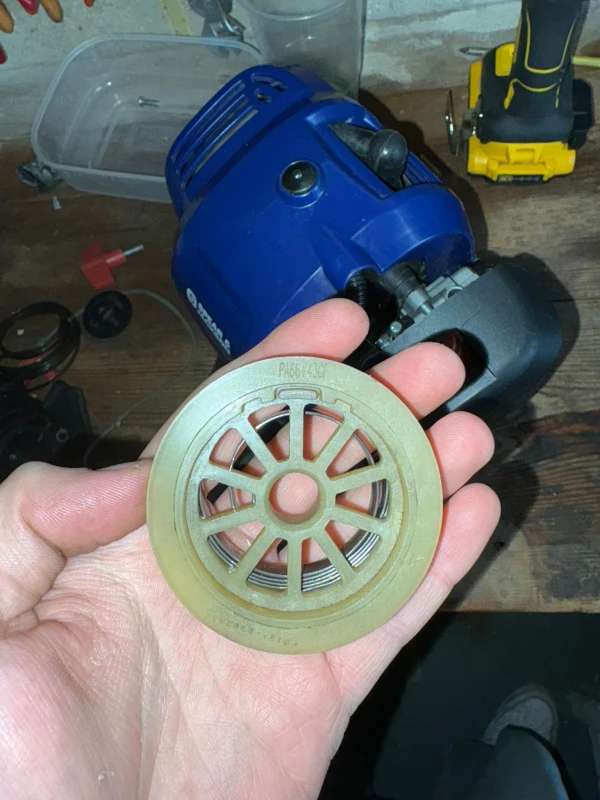

User image 68263d7a46ef6
1 comments:
Mr. Anderson
May 22, 2025

Yes, the Spear & Jackson strimmer model YT9022-02 has a pull starter. It uses a recoil start grip that should be pulled rapidly to start the engine.

This answer is automatically generated

Summary of Contents for Spear & Jackson YT9022-02

  • Page 1 设计人员: 制作日期: 运用软件: 张妹珍 99739279 2018-1-26 Adobe Acrobat 7 Pro Http:www.yattool.com 名  称: 颜  色: 说明书 彩色印刷(PT 282U) 页  数: 客  户: CH171 7 张A4纸 8458-9022003-011 料  号: A5(148.5x210mm) 备注: 尺  寸: 材  质: 80G双胶纸...
  • Page 2 INSTRUCTION MANUAL 31cc 43cm 4 Stroke petrol grass trimmer S3143PT YT9022-02 Important - Please read these instructions fully before starting assembly AFTER SALES SUPPORT 0345 605 2070 These instructions contain important information that will help you get the best from your petrol grass trimmer, ensuring it is assembled correctly and safely.
  • Page 3 SPEAR & JACKSON SINCE 1760 For more than 250 years gardeners have enjoyed high quality performance and great results using Spear & Jackson tools. Our garden power tools combine continuous innovation and the latest in manufacturing technologies with a proud heritage. Each product is carefully designed with performance,comfort and durability firmly in mind,which has earned Spear &...
  • Page 4: Table Of Contents

    CONTENT SAFETY INFORMATION.......................04 Description of symbols..................04 General safety warnings..................05 Work area safety....................06 Personal safety ....................06 Operating safety .....................07 Garden tool use and care ................08 Intended use ....................09 IN THE BOX.........................12 Part list......................12 ASSEMBLE..........................13 Unpacking.......................13 Cutting head guard assembly.................13 Cutting head assembly..................13 Connecting the upper and lower shafts............14 Front handle assembly and adjusting.............14 Harness assembly...................15...
  • Page 5: Safety Information

    SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine Description of symbols Some of the following symbols may be used on your tool.Be sure to study them and learn their meaning. Proper interpretation of these symbols will allow you to use the machine more effectively and reduce the risk of accident.
  • Page 6: General Safety Warnings

    SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine General safety warnings WARNING Read all dangerous gas, can cause Unconsciousness safety warnings and all instructions. or death. Failure to follow the c) Clear the work area warnings and instructions before use.
  • Page 7: Work Area Safety

    SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine weather that is hot and common sense when humid, heavy work should operating a garden tool. be scheduled for early Do not use a garden morning or late afternoon tool while you are tired hours when temperatures or under the influence...
  • Page 8: Operating Safety

    SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine garden tools that have connected and properly the switch on invites used. Use of dust accidents. collection can reduce d) Remove any adjusting dust-related hazards. key or wrench before turning the garden tool Operating safety on.
  • Page 9: Garden Tool Use And Care

    SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine struck with the moving except for carburetor blade in the event of adjustments. a blade thrust or other unexpected reaction of the Garden tool use and care saw.
  • Page 10: Intended Use

    SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine children and do not allow etc. in accordance with persons unfamiliar with these instructions, taking the garden tool or these into account the working instructions to operate conditions and the work the garden tool.Garden to be performed.
  • Page 11 SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine this unit for any other than described. purposes. While operating, always The product should not be wear substantial footwear used to cut heavier weeds, and long trousers. Do not brush, unusually thick grass operate the product when or vegetation, wet grass or...
  • Page 12 SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine Stop using the product To reduce fire hazards, keep while people, especially the engine and silencer children, or pets are nearby. free of debris, leaves and Only use the product in excessive lubricant.
  • Page 13: In The Box

    IN THE BOX Parts list 1.Fuel tank cap 11.Front handle 2.Primer bulb 12.Throttle lockout 3.Air filter 13.Throttle trigger 4.Spark plug 14. On/off switch 5.Muffler 15. Harness hook 6.Oil tank cap 16. Choke button 7.Recoil start grip 17. Measuring bottle 8.Cutting head 18.
  • Page 14: Assemble

    ASSEMBLE 1.Unpacking a)Unpack all parts and lay them on a flat, stable surface. b)Remove all packing materials and shipping devices if applicable. c)Make sure the delivery contents are complete and free of any damage. d)Ensure that you have all the accessories and tools needed for assembly and operation.
  • Page 15: Connecting The Upper And Lower Shafts

    ASSEMBLE 4.Connecting the upper and lower shafts 1)Insert while rotating the lower shaft into the coupler until the button locks into the positioning hole (the fixing hole is opposite the knob). Turn the knob clockwise to tighten the coupler. CAUTION: Before operating the unit, make sure the release button is fully snapped into the primary hole and the knob is securely tightened.
  • Page 16: Harness Assembly

    ASSEMBLE 6.Harness assembly Connect the latch on the shoulder harness to the strap hanger if needs. Adjust the strap to a comfortable position. The harness with quick release function can be hooked behind the rear handle if needs. AFTER SALES SUPPORT 0345 605 2070...
  • Page 17: Prepare

    PREPARE 1.Add engine lubricant oil:Initial use 1) Set the unit on a flat surface. 2)Remove the oil cap from the machine 3) Pour 60ml 4 stroke garden engine oil into lubricant bottle.(Oil type:SAE 10W30) 4) Add lubricant oil from the bottle into the lubricant oil tank.
  • Page 18 PREPARE Petrol is extremely flammable. Ignited vapors may explode. Always stop the engine and allow it to cool before filling the fuel tank. Do not smoke while filling the tank. Keep sparks and open flames at a distance from the area.
  • Page 19: Operate

    OPERATE 1.Switch on Trimmer should be on a flat, bare surface for starting. To start a cold engine: Press the button to “I” position. Note:checking for loose fasteners, fuel leaks and damaged parts, such as cracks in the cutting attachment 2.Press the primer bulb Prepare for starting the machine.then Slowly press the primer bulb 8-10 times.
  • Page 20: Hold The Machine

    OPERATE 5.Hold the machine Keep your body straight to work with double hands ,to control handle with double hands correctly,and keep your feet away from cutting head guard zone,to avoid accidents. Notice:Hold the product firmly so that it sits with a gap between the product and your right side.
  • Page 21: Adjust The Cutting Line Length

    OPERATE arm contact with the engine while operating the unit. The engine may be extremely hot. · Stand in the operating position Stand up straight. Do not bend over. · Keep feet apart and firmly planted. · Hold the shaft grip with the right hand. Keep the right arm slightly bent.
  • Page 22: Maintenance

    MAINTENANCE The correct and regular cleaning is not only important for the safe use of this product, but also extends its life span. Warning! Always switch off the engine and wait for cooling down of engine. Please remove the dust, debris etc. from machine after every application.
  • Page 23: Clean Machine Body

    MAINTENANCE 1.Clean machine body Clean the machine handle 、 safety guard and handle pole,some covers after Working,care some necessary parts with clean cloth,extend the life of product. 2.Check engine lubricant oil level before each use: 1)Separate the attachment from the power head.
  • Page 24: Air Filter Cleaning

    MAINTENANCE 4.Air Filter Cleaning Take the air filter pad out and clean it with a jet of dry compressed air until all dusts are removed. Wear protecting goggles and mask to protect your health during this work.Re-install the air filter cover by closing the air filter cover over the button on the housing, then push the cover until it locks securely in the place.
  • Page 25: Idle Speed Adjustment

    MAINTENANCE 3)Fix the 2 line ends (ca. 15 cm) at the opening to keep the line winded tightly. 4) Guide the 2 line ends into the holes on the spool housing and restore the spool cover. 4) Guide the 2 line ends into the holes on the spool housing and restore the spool cover.
  • Page 26: Storage

    MAINTENANCE 8.Storage · Never store a fueled unit where fumes may reach an open flame or spark. · Allow the engine to cool before storing. · Lock up the unit to prevent unauthorized use or damage. · Store the unit in a dry, well-ventilated area. ·...
  • Page 27: Technicial Data

    TECHNICAL DATA Product model YT9022-02 Engine model 4S310 Engine type 4-Stoke, air-cooled Engine displacement 31cm Engine power 0.8kW Engine maximum speed at rated power 7000/min Fuel tank volume 280cm³ Engine oil tank volume 60cm³ Maximum rotational frequency of the spindle 7000/min...
  • Page 28: Troubleshooting

    TROUBLESHOOTING In the case of all other types of technical faults, please contact helpline 0345 605 2070 or local service center. Fault Possible Cause Solution Engine will not start "No spark. Clean or replace spark plug. No fuel. Reset spark plug gap.Refer to Engine is flooded."...
  • Page 29: Warranty

    WARRANTY If your device develops a fault, please don’t hesitate to contact our customer service department on 0345 605 2070, we can solve 80% of problems via the phone. 1. These warranty terms cover additional warranty rights and do not affect your statutory warranty rights.
