- Page 1 设计人员: 制作日期: 运用软件: 张妹珍 99739279 2018-2-24 Adobe Acrobat 7 Pro TEL:0573-83225888-503 Http:www.yattool.com 名 称: 说明书 颜 色: 一个专色（PT282U) 客 户: 页 数: CH171 7张A4纸 料 号: 8458-9305003-021 备注: A5(148.5x210mm) 成品尺寸: 材 质: 80g双胶纸...

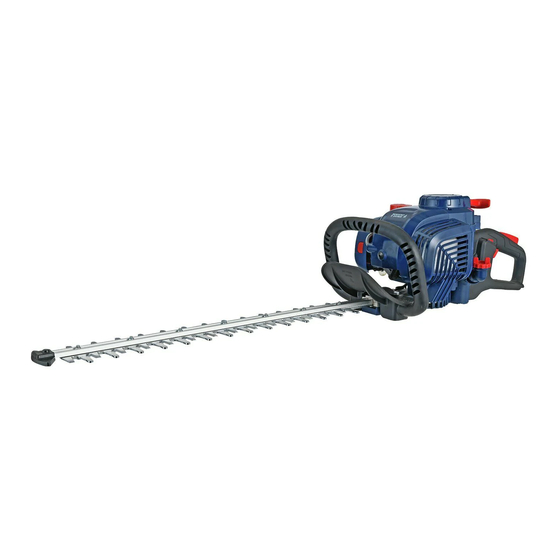

- Page 2 INSTRUCTION MANUAL 26.5cc 55cm 4 Stroke Petrol Hedge Trimmer S2655HP YT9305-01 Important - Please read these instructions fully before starting assembly AFTER SALES SUPPORT 0345 605 2070 The instruction contain important information that will help you get the best from your petrol hedge trimmer,ensuring it is assembled correctly and safely.If you need help or have damaged or...
- Page 3 SPEAR & JACKSON SINCE 1760 For more than 250 years gardeners have enjoyed high quality performance and great results using Spear & Jackson tools. Our garden power tools combine continuous innovation and the latest in manufacturing technologies with a proud heritage. Each product is carefully designed with performance,comfort and durability firmly in mind,which has earned Spear &...
-
Page 4: Table Of Contents
CONTENTS SAFETY INFORMATION......................04 Description of symbols..................04 General safety warnings..................05 Work area safety....................06 Personal safety ....................06 Operating safety ....................07 Garden tool use and care ..................08 Intended use ......................09 IN THE BOX..........................12 Part list.......................12 ASSEMBLE..........................13 PREPARE..........................13 Add engine lubricant oil: Initial use..............13 Fueling........................13 Rotary handle.....................14 Remove blade cover...................14... -
Page 5: Safety Information
SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine DESCRIPTION OF SYMBOLS Some of the following symbols may be used on your tool. Be sure to study them and learn their meaning. Proper interpretation of these symbols will allow you to use the machine more effectively and reduce the risk of accident. -
Page 6: General Safety Warnings
SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine General safety warnings WARNING Read all dangerous gas, can safety warnings and cause Unconsciousness all instructions. or death. Failure to follow the warnings c). Clear the work area and instructions may result before use. -
Page 7: Work Area Safety
SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine fatigue, which could lead to Personal Safety heat stroke. During weather a) Stay alert, watch what that is hot and humid, heavy you are doing and use work should be scheduled common sense when for early morning or late... -
Page 8: Operating Safety
SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine picking up or carrying moving parts. the tool. Carrying power g) If devices are provided for tools with your finger on the connection of dust the switch or energising extraction and collection power tools that have facilities, ensure these are... -
Page 9: Garden Tool Use And Care
SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine to wear eye protection. If from operation. Contact with you are approached, stop hot surfaces could result in the engineand cutting possible serious personal attachment. In the case injury. -
Page 10: Intended Use
SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine or storing garden tools. maintained cutting tools Such preventive safety with sharp cutting edges measures reduce the are less likely to bind and risk of starting the tool are easier to control. - Page 11 SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine trimming hedges, bushes which can be thrown by the and shrubs. Observe the product. technical data for the Before using the product maximum cutting capacity. and after any impact, check Do not cut branches for signs of wear or damage exceeding the stated...
- Page 12 SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine · checking, carrying out product. Never attempt to maintenance or working use an incomplete product on the product, or one fitted with an · adjusting the working unauthorised modification.
-
Page 13: In The Box
IN THE BOX Parts list 13. Cylinder housing 1. Rear handle 14. Recoil start grip 2. Throttle lockout 15. Lock button for rotary handle 3. Fuel tank cap 16. On/off switch 4. Choke button 17. lubrication nipple for gearbox 5. Front handle/safety guard (integrated) 18. -
Page 14: Assemble
ASSEMBLE The hedge trimmer has been assembled in the standard delivery so no need for extra assembling steps. PREPARE Add engine lubricant Oil: Initial use 1) Set the unit on a flat surface. 2) Remove the oil cap from the machine 3) Pour 60ml 4 stroke garden engine oil into lubricant cup. -
Page 15: Rotary Handle
PREPARE The use of old fuel is the most common cause of performance problems. Use only fresh, clean unleaded gasoline. NOTE: This unit has a 4-stroke engine. DO NOT mix oil with gasoline. WARNING: Add fuel in a clean, well-ventilated outdoor area. -
Page 16: Operate
OPERATE Switch on To start a cold engine: STOP STOP Press the button to “I” position. Note:checking for loose fasteners, fuel leaks and damaged parts, such as cracks in the cutting attachment. Press the primer bulb Press the primer bulb repeatedly 8-10 times until petrol begins to fill the bulb. -
Page 17: Hold The Machine
OPERATE To restart a warm engine: Press the on/off switch, Quickly pull the recoil starter handle until the engine runs. Hold the body of the machine on the ground using your left hand (CAUTION! Not with your foot!). Grip the starter handle, slowly pull out the cord with your right hand until you feel some resistance (the starter pawls grip), now quickly and powerfully pull the cord. -
Page 18: Cutting Work
OPERATE Cutting work Adjust the handle to fits the intended cut and start the product. Move the cutting device lightly through the cutting surface in a sweeping motion following the shape of the hedge or shrub. A slight tilt downwards of the cutting device in the direction of motion is recommended for optimum cutting performance. -
Page 19: Turn Off Engine
OPERATE Turn off engine Press the switch "STOP", turn off engine. STOP STOP AFTER SALES SUPPORT 0345 605 2070... -
Page 20: Maintenance
MAINTENANCE The correct and regular cleaning is not only important for the safe use of this product, but also extends its life span. Warning! Always switch off the engine and wait for cooling down of engine. Please remove the dust, debris etc. from machine after every application. -
Page 21: Clean Machine Body
MAINTENANCE 1.Clean machine body Clean the machine shell, handle and some plastic covers after working, care some necessary parts with clean cloth,extend the life of product. Install the blade cover when you store for long time. When install blade cover,you need to squeeze the cover carefully,and easy to insert. -
Page 22: Air Filter Cleaning
MAINTENANCE 4.Air filter cleaning Remove the air filter cover and take out the filter. Wash it clean in warm, soapy water. Ensure that the filter is dry before refitting it. An air filter that has been in use for a long time cannot be cleaned completely. -
Page 23: Check Hand Guard
MAINTENANCE To ensure good cutting results it is important that the contact pressure between the blades is correct. The contact pressure is adjusted by turning the screws on the underside of the bar clockwise as far as they will go. Lock the screws using the locking nut on the top of the bar. -
Page 24: Install The Blade Cover
MAINTENANCE 8.Install the blade cover to protect blade when you store it for a long time. 9.Storage • Never store a fueled unit where fumes may reach an open flame or spark. • Allow the engine to cool before storing. • Lock up the unit to prevent unauthorized use or damage. • Store the unit in a dry, well-ventilated area. • Store the unit out of the reach of children. Short-term Storage (1-2 weeks) Store the unit in a horizontal position. If not possible, store the unit vertically with the engine at the top. - Page 25 MAINTENANCE Preparing the Unit for Use after Long-term Storage 1. Remove the spark plug. Tip the unit and drain all of the oil from the cylinder into an approved container. Reinstall the spark plug. 2. Change the oil. Refer to Changing the Oil. NOTE: Do not use fuel that has been stored for more than 30 days.
-
Page 26: Technicial Data
TECHNICAL DATA Model YT9305-01 Cylinder displacement 26.5 cm Engine speed at rated power 7000/min Rated power 650W Blade length 550 mm Engine oil type 4 stroke garden engine oil SAE 10W-30 Engine oil volume 60cm³ Cutting length 480 mm Blade speed... -
Page 27: Troubleshooting
TROUBLESHOOTING Fault Possible Cause Solution 1. Engine does not start 1.1 Not enough petrol in fuel 1.1 Add petrol tank 1.2 Primer has been not 1.2 Press the primer and pressed at cold start restart 1.3 Primer has been pressed 1.3 Dry spark plug at warm start 1.4 Spark plug is wet... -
Page 28: Warranty
WARRANTY If your device develops a fault, please don’t hesitate to contact our customer service department on 0345 605 2070, we can solve 80% of problems via the phone. 1. These warranty terms cover additional warranty rights and do not affect your statutory warranty rights.
