Summary of Contents for JWA Acorn 70821

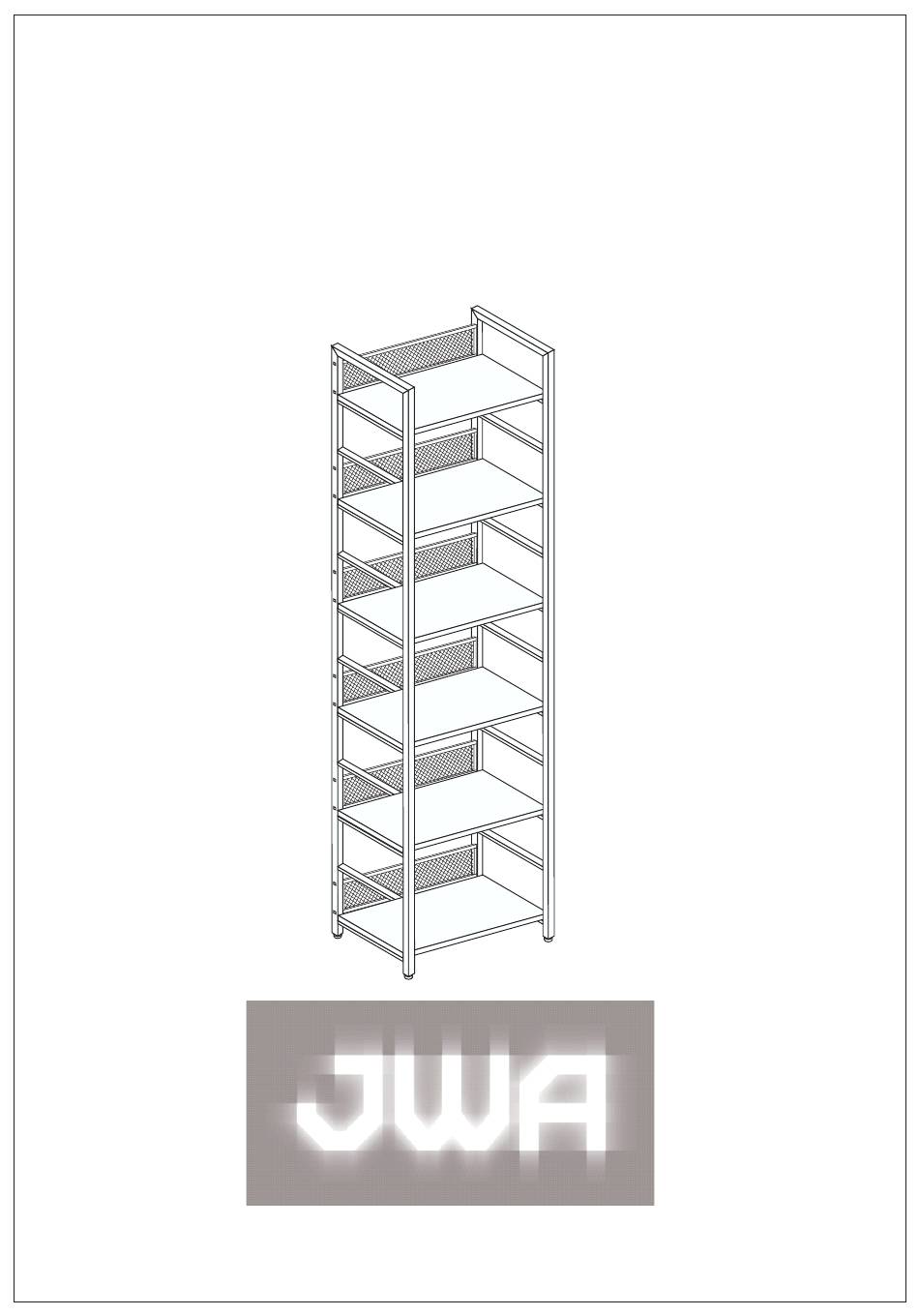

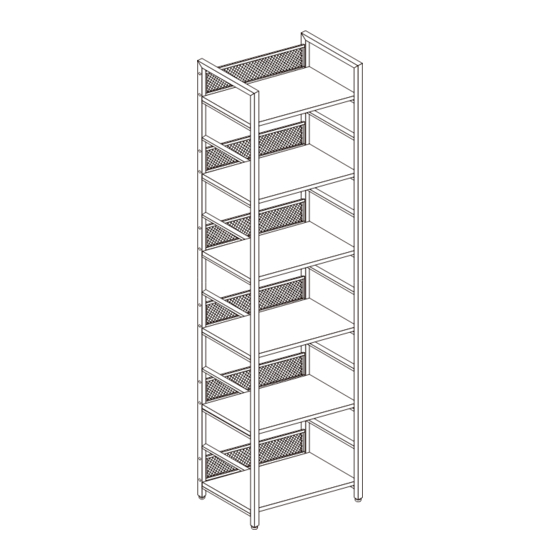

- Page 1 ASSEMBLY INSTRUCTION Acorn 6 tier Bookcase ITEM CODE 70821...
- Page 2 PRE-ASSEMBLY PREPARATION Before you start: 1.Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2.Take care when lifting. Product should be assembled as near as possible to the point of use 3.Ensure that you have all required contents for complete assembly 4.Always read the assembly instructions carefully before beginning assembly.
- Page 3 PARTS LIST ST3.5X14mm M6X30 mm M6X20 mm 2pcs 4pcs 4pcs 24pcs 24pcs M4X25 mm 2pcs 2pcs Layer Panel Layer Panel Metal Frame Back net...
- Page 4 Screw fitting C into the bottom of metal frame P1. Fix the fitting D to the Panel 1 with fitting E align the corresponding position holes at the bottom of Panel 1.
- Page 5 Assemble the back net to the metal frame with fitting A. Assemble Panel 1 and 2 to the metal frame with fitting...
- Page 6 Assembly complete!
- Page 7 To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish.
