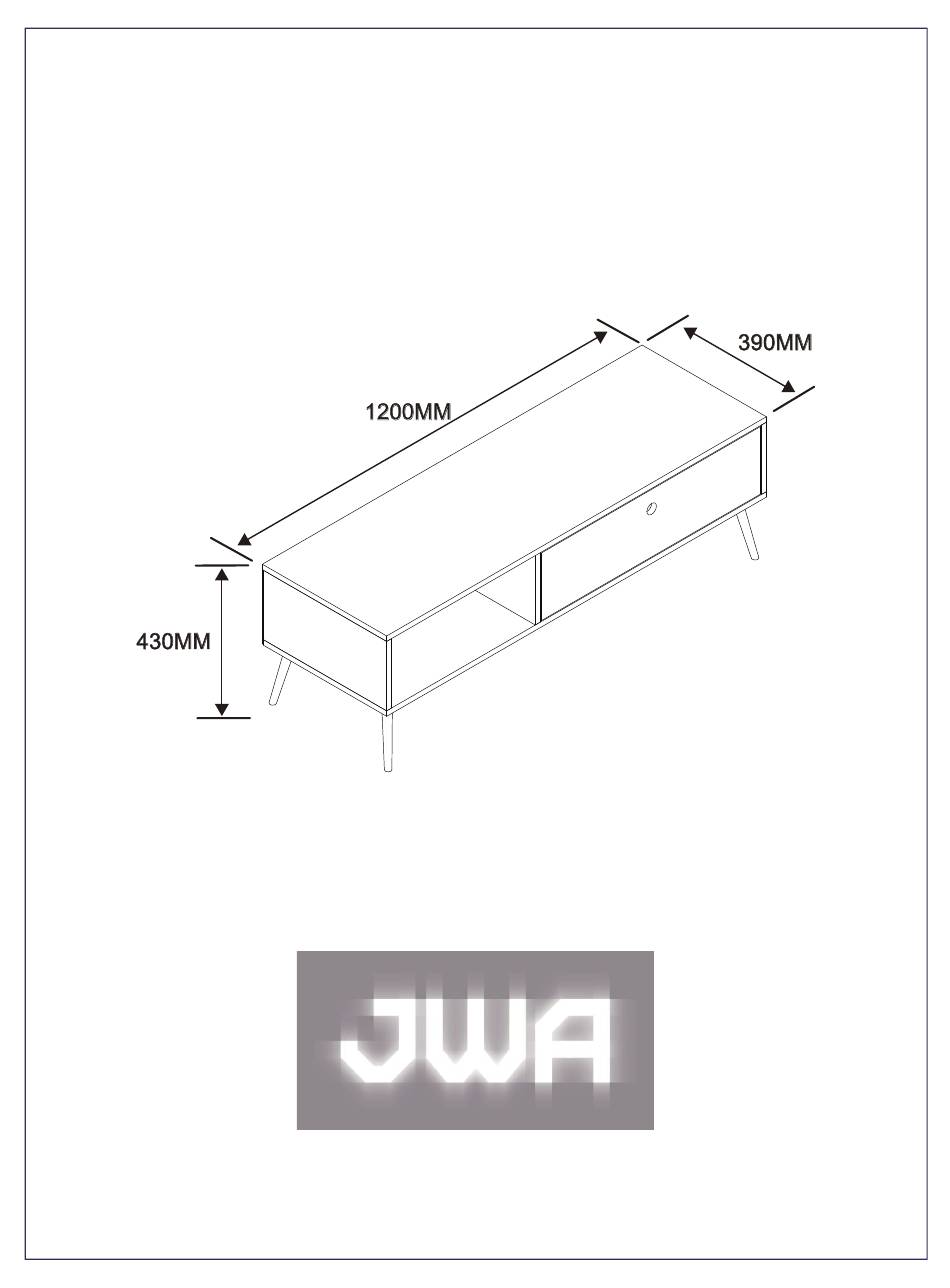

ASSEMBLY INSTRUCTION

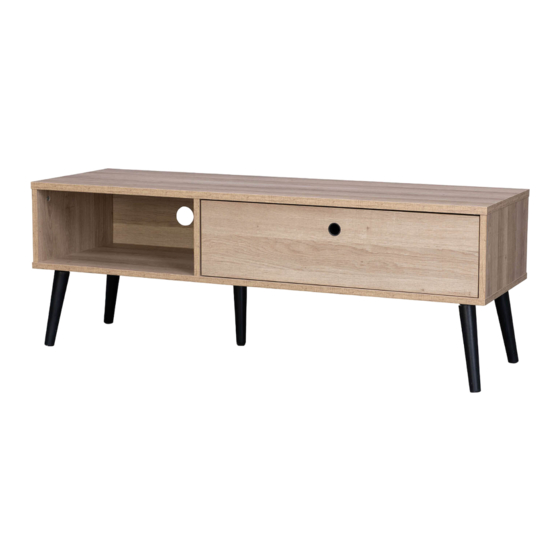

AGEN ENTERTAINMENT UNIT
ITEM CODE 69662
Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please refer to your receipt
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the AGEN 69662 and is the answer not in the manual?

Questions and answers

Related Manuals for JWA AGEN 69662

Summary of Contents for JWA AGEN 69662

  • Page 1 ASSEMBLY INSTRUCTION AGEN ENTERTAINMENT UNIT ITEM CODE 69662 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...

  • Page 2: Pre-Assembly Preparation

    PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4.

  • Page 3: Parts List

    PARTS LIST M7X39mm M14.8X12mm M8X30mm M3.5X14mm 11pcs 11pcs 12pcs 12pcs M5X40mm M4X14mm 11pcs 4pcs 20pcs 4pcs M3X16mm 14pcs 1pcs 1pcs M4x30mm M3.5x14mm 1pcs 1pcs 1pcs 1pcs 1pcs DRAWER SIDE PANEL MIDDLE PANEL DRAWER SIDE PANEL SIDE PANEL BOTTOM PANEL DRAWER BACK PANEL SIDE PANEL DRAWER BASE SUPPORT PANEL...
  • Page 4 STEP 1: Fix runners (CL)(CR) to panels (1)(2) with screws (D). STEP 2: Fix metal plate(F) to panel(3) with screws (G).
  • Page 5 Attach panels (1)(2)(4) to panel(3) with dowel(C) and STEP 3: screws (E). Fix legs (H)(J) to panel(3),and fix screws(K) to leg(J). STEP 4:...
  • Page 6 STEP 5: Fix cam pin (A) to panels (5). STEP 6: Attach panel (5) to the body with dowel(C)and cam lock (B).
  • Page 7 Fix screws (I) to panel (6) . STEP 7: STEP 8: Attach panels (7)(8) to panel(9) with screw(E). Insert drawer base(10) and support panel(11) as shown. Fix cam pin (A)to panel (12). Attach drawer front to the body with cam lock parts. Fix runners(DL)(DR) to drawer bottom with screws (D).
  • Page 8 Assemble drawer to the body. STEP 9: ASSEMBLY COMPLETE...
  • Page 9 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws.
  • Page 10 To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish.
