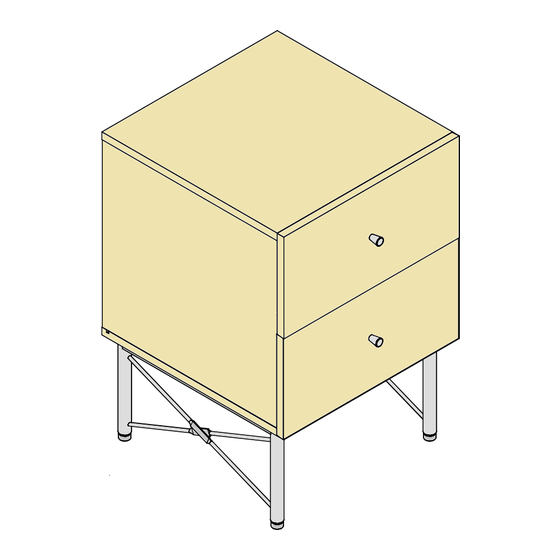

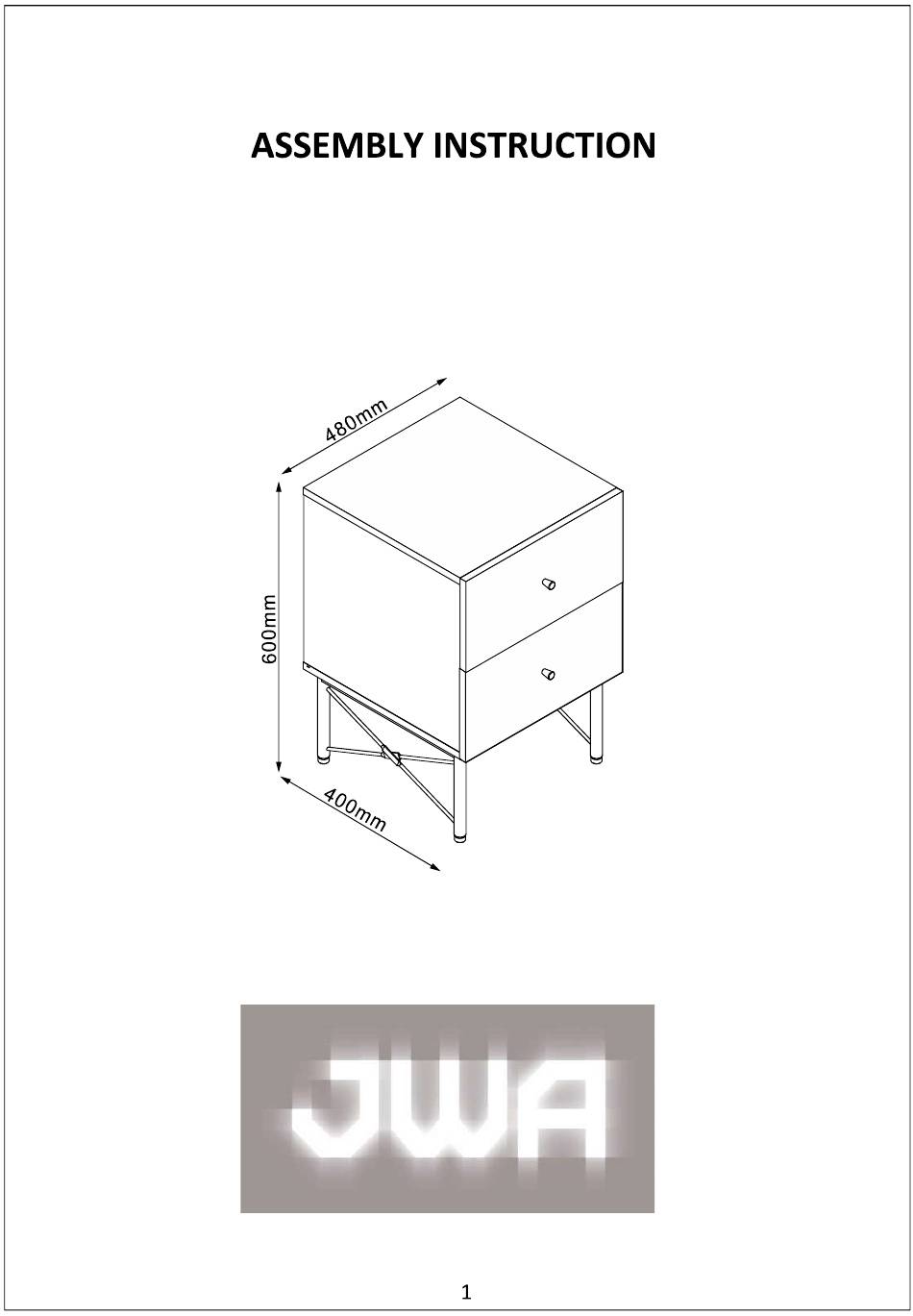

- Page 1 AOSTA Bedside ITEM CODE 75132 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
- Page 2 Allow 30min For 1 person...
- Page 3 M6X30 mm 8X30mm M6X40 mm 8pcs 4pcs 16pcs 8pcs 4pcs M4X18mm ST5X50mm ST3.5X14mm 2pcs 6pcs 2pcs 8pcs 17pcs ST3.5X18mm M8X20X10mm ST4X25mm 6pcs 4pcs Main frame Top panel Drawer front panel Connection frame Bottom panel Drawer left panel Left panel Drawer right panel Drawer back panel Right panel Drawer bottom panel...
- Page 4 1. Insert part L into frame P1. 2. Attach connection frame P2 to frame P1 with part D. 1. Attach panel 2 to frames P1 and P2 with part C.
- Page 5 1. Separate parts E1 and E2 (runners) as shown below. 2. Attach part E1 to panels 3 and 4 with part G. 1. Insert parts A and B into panel 2. 2. Attach panels 3 and 4 to panel 2 with parts A and B.
- Page 6 1. Slide panel 5 along slots of panels 3 and 4. 1. Insert parts A and B into panel 1. 2. Attach panel 1 to panels 3 and 4 with parts A and B.
- Page 7 STEP 7: 1. Attach panels 7 and 8 to panel 9 with part F. 2. Slide panel 10 along slots of panels 7 and 8. STEP 8: 1. Insert part A into panel 6. 2. Attach panel 6 to panels 7 and 8 with part A. 3.
- Page 8 STEP 9: 1. Attach part E2 to panels 7 and 8 with part G. STEP 10: 1. Install drawer 6 into the cabinet, ensure runners are correctly aligned.
- Page 9 STEP 11: 1. Insert part J into panel 5 with part K. STEP 12: Install Tip Kit 1. Attach part M to the back of panel 1 with part G. 2. Attach part M to the wall with part N.
