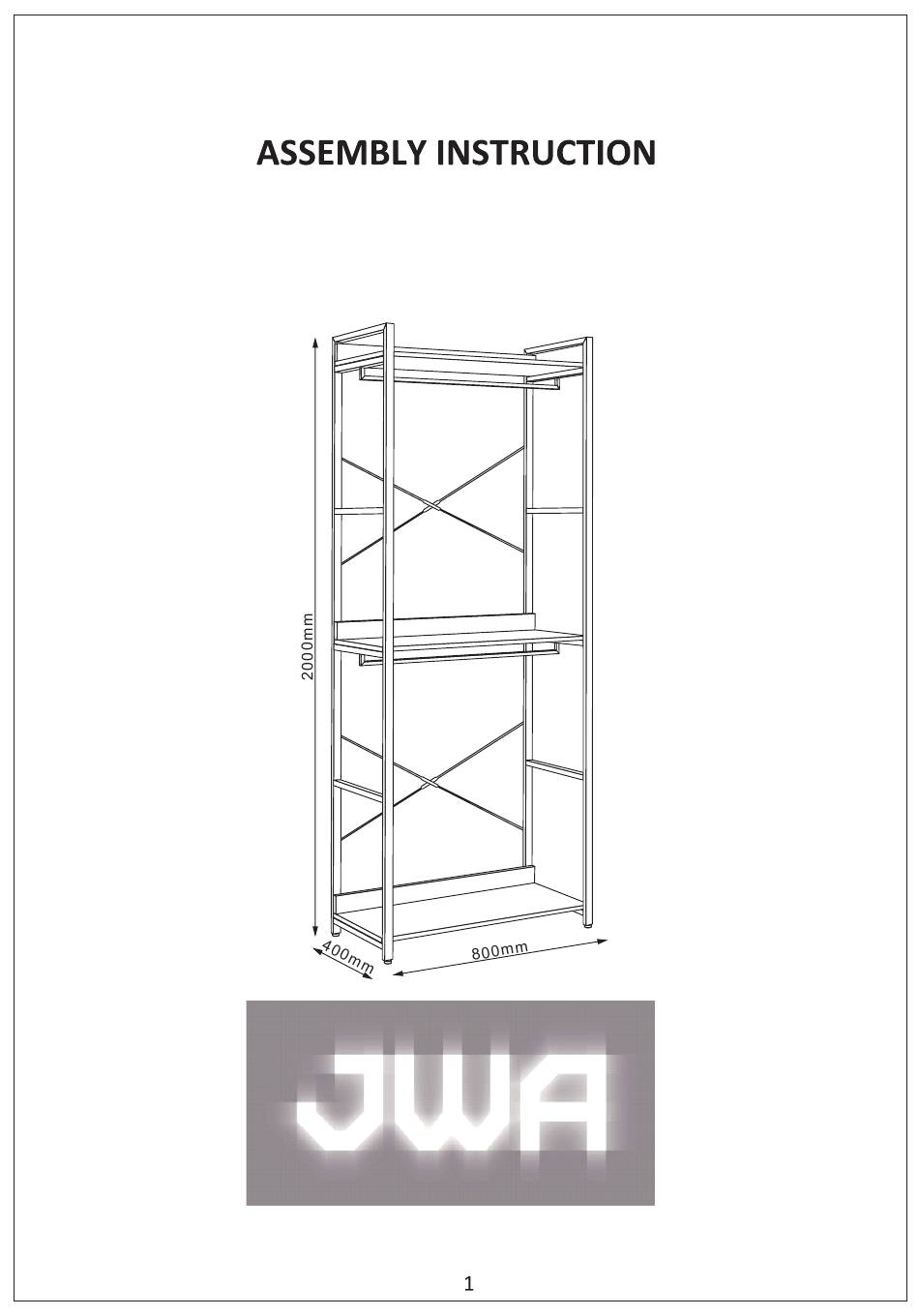

- Page 1 ALES Double Rail Clothes Rack ITEM CODE 75102 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
- Page 3 M6X30 mm ST5X50mm M6X15mm M6mm 16pcs 6pcs 8pcs 10pcs 2pcs M80X20X10mm ST3.5X14mm ST4X25mm 1pcs 4pcs 1pcs 1pcs Top layer panel Middle layer panel Bottom layer panel Back panel Main frame X support frame Hanger...
- Page 4 1. Insert part I into main frames P1. 1. Attach hangers P3 to main frames P1 with part A.
- Page 5 1. Connect P2 with part B and E. 1. Attach X support frames P2 to main frames P1 with parts B and D.
- Page 6 1. Attach panel 4 to panel 1 with part C. 2. Attach panel 4 to panel 2 with part C. 3. Attach panel 4 to panel 3 with part C. 1. Attach panel 1 , 2 and 3 to main frames P1 with part A.
- Page 7 STEP 7: Install Tip Kit. 1. Attach part H to panel 1 with part F. 2. Attach part H to the wall with part G. STEP 8: Finished assembly.
