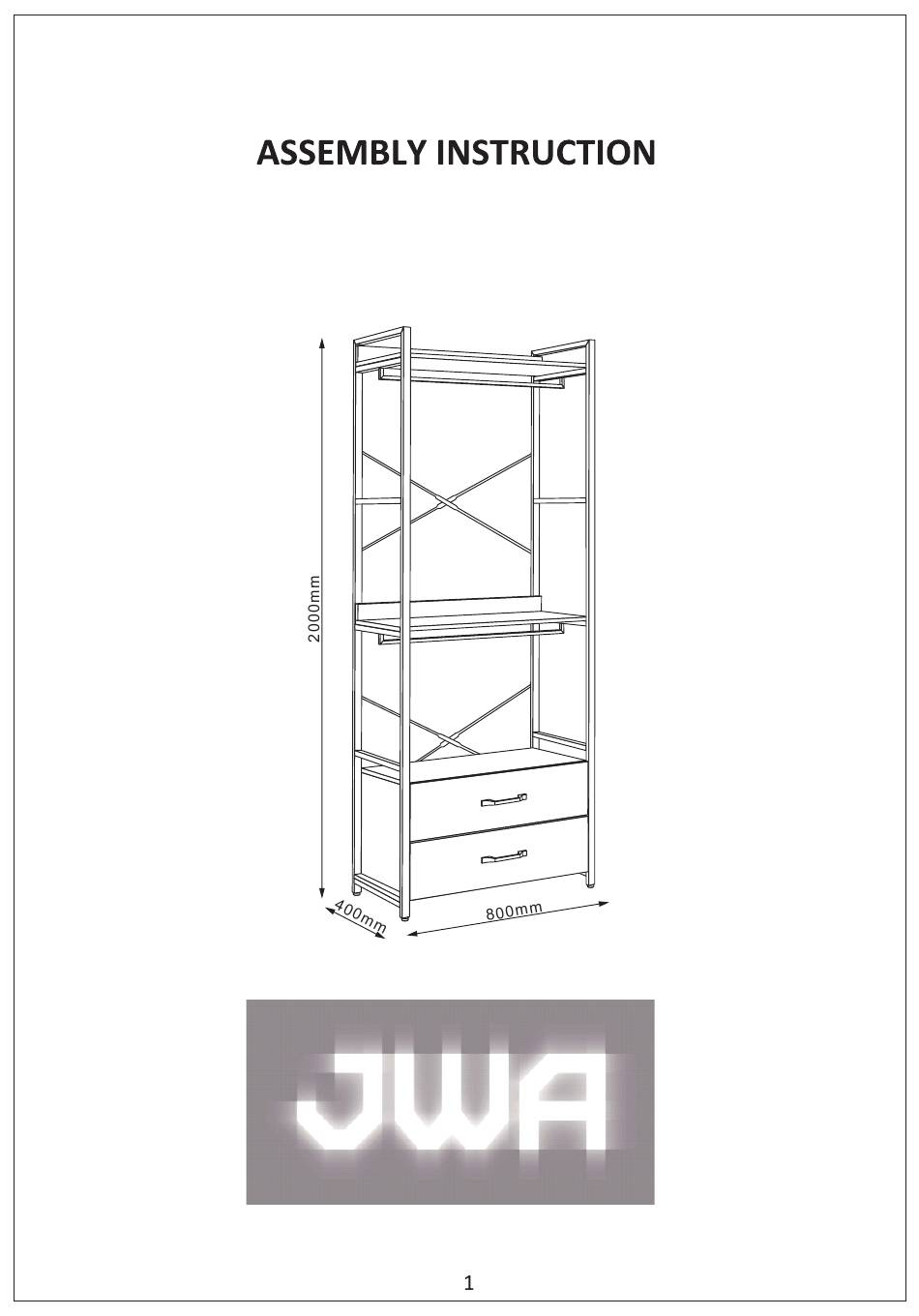

- Page 1 ALES Double Rail 2 Drawer Clothes Rack ITEM CODE 75103 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
- Page 3 M6X15mm M6X30 mm 8pcs 4pcs 24pcs 10pcs 16pcs M4X18mm M6mm ST5X50mm 8pcs 2pcs 4pcs 2pcs 12pcs ST3.5X14mm ST3.5X18mm ST4X25mm 2pcs 6pcs 18pcs 6pcs 2pcs M8X20X10mm 4pcs...
- Page 4 Top panel Cabinet left panel Drawer right panel Cabinet right panel Drawer back panel Middle panel Cabinet back panel Drawer support panel Connection panel Cabinet top panel Drawer front panel Drawer bottom panel Cabinet bottom panel Drawer left panel Main frame Coat hanger Support frame...
- Page 5 1. Insert part P into frame P1. 1. Attach coat hanger P2 to frame P1 with part C.
- Page 6 1. Attach frame P3 with parts D and 1. Attach frame P3 to frame P1 with parts D and F.
- Page 7 1. Attach panel 3 to panel 1 with part J. 2. Attach panel 3 to panel 2 with part J. 1. Attach panels 1 and 2 to frame P1 with part C.
- Page 8 STEP 7: 1. Separate parts E1 and E2 (runners) as shown below. 2. Attach part E1 to panels 6 and 7 with part K. STEP 8: 1. Insert parts A and B into panel 5. 2. Attach panels 6 and 7 to panel 5 with parts A and B.
- Page 9 STEP 9: 1. Slide panel 8 along slots of panels 6 and 7. ⑦ ⑥ STEP 10: 1. Insert parts A and B into panel 4. 2. Attach panel 4 to panels 6 and 7 with parts A and B.
- Page 10 STEP 11: 1. Insert part N into panel 8 with part L. STEP 12: 1. Attach cabinet to frame P1 with part C.
- Page 11 STEP13: 1. Insert part A into panel 12. 2. Attach panel 13 to panel 12 with part A. 3. Attach panels 10 and 11 to panel 12 with part J. STEP 14: 1. Insert part A into panel 9. 2. Attach part I to panel 9 with part H.
- Page 12 STEP 15: 1. Attach panel 9 to panels 10, 11 and 13 with part A. STEP 16: 1. Attach part E2 to panels 10 and 11 with part K.
- Page 13 STEP 17: 1. Install drawer into the cabinet. Ensure runners are correctly aligned. STEP 18: Install Tip Kit 1. Attach part O to the back of panel 1 with part K. 2. Attach part O to the wall with part M.
- Page 14 STEP 19: Assembly complete!
