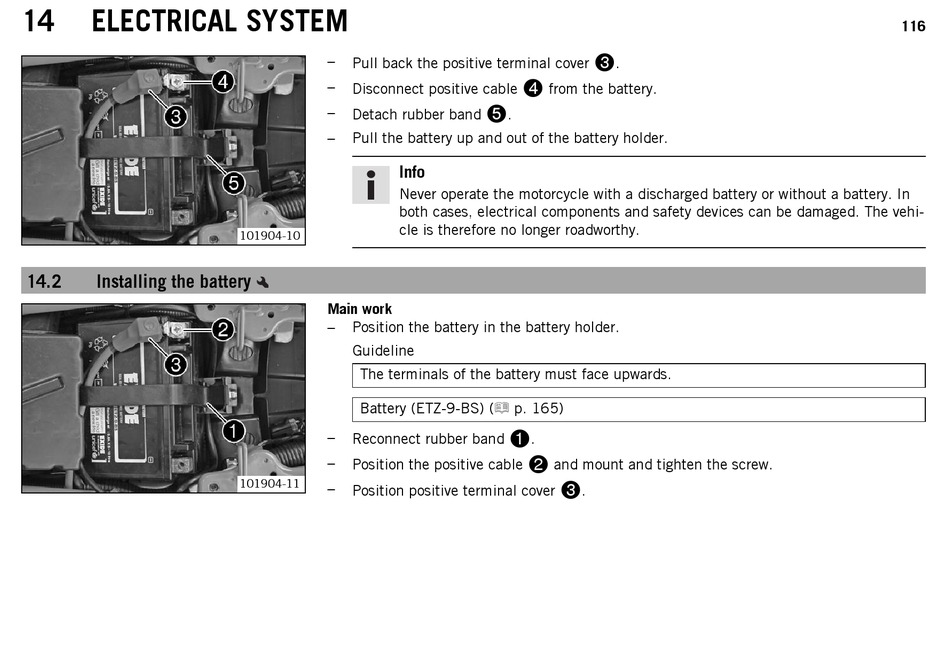

14 ELECTRICAL SYSTEM
14.2

Installing the battery

–
Pull back the positive terminal cover
–
Disconnect positive cable
–
Detach rubber band
–
Pull the battery up and out of the battery holder.
Info
Never operate the motorcycle with a discharged battery or without a battery. In
both cases, electrical components and safety devices can be damaged. The vehi-
cle is therefore no longer roadworthy.
101904-10
Main work
–
Position the battery in the battery holder.
Guideline
The terminals of the battery must face upwards.
Battery (ETZ‑9‑BS) (
–
Reconnect rubber band
–
Position the positive cable
101904-11
–
Position positive terminal cover
 .

from the battery.

.
p. 165)
 .

and mount and tighten the screw.

.
116
