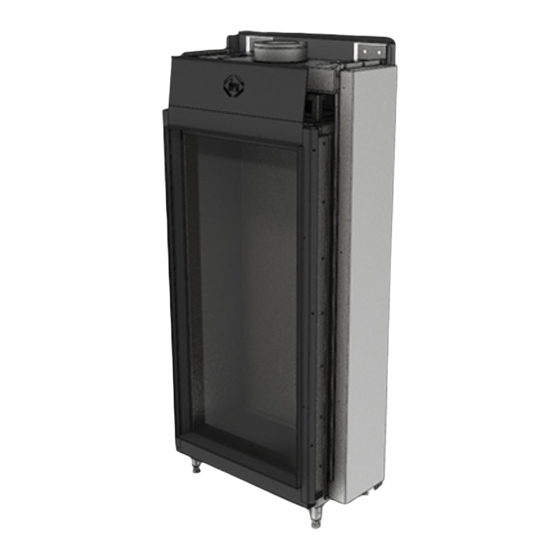

- Page 1 Excellence 50XT RCH G20/G25/G25.3 Natural gas Installation manual (UK/IE) Store this document in a safe place...
-
Page 2: Table Of Contents
I NS T AL L A TI O N MA N U A L Contents 1. Introduction 2. CE declaration 3. SAFETY 3.1 General 3.2 Regulations 3.3 Precautions / safety instructions at installation 3.4 Principle of ignition cycle 4. Removing the packaging 5. -
Page 3: Introduction
Please, read and use this installation manual carefully and completely, prior to installing this appliance. If you use the DRU Powervent system® or the DRU Smartvent system®, you must carefully and fully read and use the accompanying installation manual as well, prior to its installation. -
Page 4: Safety
CE label; Ø if you are installing an appliance with closed combustion: only use the concentric systems supplied by DRU; Ø if you are installing a free-standing appliance: place the appliance away from the back wall by the minimum distance stated further down in the text;... -
Page 5: Principle Of Ignition Cycle
IN S T A L L A T I ON M A N U A L 3.4 Principle of ignition cycle Below you will find a brief description of how this appliance is ignited. The appliance is off and will be switched on by means of the remote control. The receiver will get the signal to start the ignition process. -
Page 6: Installation
It is possible to operate one or more lamps (in case of several lamps, a maximum of 8A/250VAC/30VDC) via the remote control of the appliance. You could think of the lamps of Dru's lux elements. For this, you can use switch contact B on the receiver (see appendix 3, fig 36). -
Page 7: Placing A Built-In Appliance
(if applicable) Not all built in DRU appliances are supplied with a control hatch. Built in appliances must be installed with the DRU control hatch. This is necessary to ensure a durable, safe and !Caution proper operation. The DRU control hatch can be ordered separately. Exceptions are: •... -
Page 8: Placing The Control Hatch
A number of components are placed in the control hatch, such as data plate, gas control, receiver belonging to the remote control and, if applicable, the components belonging to the DRU Powervent System®. Place the control hatch as follows, see Appendix 3, Fig. 3 for details: Ø... - Page 9 IN S T A L L A T I ON M A N U A L Ø Mount the bracket with components to the inner frame (A). Proceed as follows: • Unwind the cables. This will, amongst other things, prevent a poor operation of the ignition. •...
- Page 10 If necessary, you can also use an existing chimney (see section 5.9.4). • Only use the concentric system supplied by DRU This system has been tested in combination with the !Caution appliance. DRU cannot guarantee a proper and safe operation of other systems and does not accept any responsibility or liability for this;...
- Page 11 The surrounding space is used to supply combustion air. The following requirements apply when connecting to an existing chimney: • only allowed when used in combination with the special DRU chimney set. The installation regulation is parat of the delivery; •...
-
Page 12: Additional Instructions
I NS T AL L A TI O N MA N U A L 5.10 Additional instructions Ø Connect the appliance to the wall using wall brackets (B) and the key bolts supplied (see Appendix 3, Fig. 1). 5.11 Glass panes •... - Page 13 IN S T A L L A T I ON M A N U A L 5.11.2 Placing the glass pane The glass window is fitted by using teh above procedure, in reverse order (see Appendix 3, Fig. (6 to 8). •...
-
Page 14: Setting The Appliance
I NS T AL L A TI O N MA N U A L 5.12 Setting the appliance The appliance has to be set in such a way that it works correctly in combination with the concentric system. For that purpose, it is possible to install a restrictor slide and/or remove the air inlet guide. The condition for application with wall terminal and roof terminal are stated in Appendix 2, Tables 4, 5 and 6. -
Page 15: Placing The Wood Set
IN S T A L L A T I ON M A N U A L 5.13 Placing the wood set The appliance is supplied with a wood set. The vermiculite used to fill the burner, is black. Strictly observe the following instructions to prevent unsafe situations: !Caution Ø... -
Page 16: Control
I N S T A L L A T I O N M A NU A L 6. Control The appliance is supplied with a wireless black remote control for the user (see appendix 3, fig. 35 (B)). As an option, an orange remote control can be supplied for the installer (see appendix 3, fig. -
Page 17: Final Inspection
Such a connection can only be established with a communication module (see Appendix 3, fig. 35 (W)). This module can be ordered from DRU. This communication module translates the ‘modbus’ protocol from the Domotics system into a wireless signal to the receiver. -
Page 18: Gas Pressure/Line-Pressure
I NS T AL L A TI O N MA N U A L 7.2 Gas pressure/line-pressure The burner pressure is set at the factory; see data plate. The line-pressure in house installations must be checked, because it can be wrong. !Caution Ø... -
Page 19: Flame Picture
IN S T A L L A T I ON M A N U A L Ø Check operation of the main burner from a cold condition. Ø If sparks are determined between the ignition electrodes, the main burner should burn within a few seconds. !Tip The flame picture and a good flame transfer can only be properly judged if the glass window is installed. -
Page 20: Delivery
I NS T AL L A TI O N MA N U A L Delivery You must explain to the user how to operate the appliance. You must give him/her instructions on putting it into operation, the safety measures, the operation of the remote control and the annual maintenance (see the User Manual). -
Page 21: Malfunctions
IN S T A L L A T I ON M A N U A L Appendix 1 Malfunctions Error messages Error code Problem Possible cause Remedy Communication loss Communication cable does Make sure the connectors of between receiver and not make contact the communication cable burner device... - Page 22 IN S TA L L A TI O N M A N U A L Error messages Error code Problem Possible cause Remedy Ionization pin Replace the ionization (follow-up) defective (measure ionization current when 0) ESYS is not released ESYS is in hard-lock Wait half hour until ESYS resets itself.
- Page 23 IN S T A L L A T I ON M A N U A L Appendix 2 Tables Table 1: Parts included with the delivery Part Number Wood set Control hatch Manual control hatch Installation manual User manual Decorative strip left Decorative strip right Restrictor slide Key bolts M8x140x50...
- Page 24 IN S TA L L A TI O N M A N U A L Table 2: Technical data Product name Excellence 50XT RCH Type of appliance Built-in Combustion Closed combustion Supply and discharge system Concentric 150/100 Flame protection version...
- Page 25 IN S T A L L A T I ON M A N U A L Table 3: Line-pressure when using G31 Country mbar NL / DK / FI / NO / SE / HU / BA / GR FR / BE / IT / PT / ES / GB / IE Permissibility and conditions concentric system with wall terminal Table 4: Conditions for setting the appliance G20/G25/G25.3...
- Page 26 IN S TA L L A TI O N M A N U A L Permissibility and conditions concentric system with roof terminal Table 5: Determining permissibility concentric system with roof terminal G20/G25/G25.3 Total number of meters Total no. of meters vertical and/or sloping pipe length horiz.
- Page 27 IN S T A L L A T I ON M A N U A L 38C-1759 /2 Excellence 50XT...
- Page 28 I NS T AL L A TI O N MA N U A L Tot min. 200cm² 38c-1811 /0...
- Page 29 IN S T A L L A T I ON M A N U A L 38C-1868 /0...
- Page 30 IN S TA L L A TI O N M A N U A L 1x90° 1x90° 38c-744z 38c-744u 0 - 1m 1x90° 38c-744y >1 - 3m 38C-1813 /0 38C-1812 /0...
- Page 31 IN S T A L L A T I ON M A N U A L max.14cm 38C-1707 /2 38c-1815 /0 38C-1814 /0...
- Page 32 IN S TA L L A TI O N M A N U A L 38P-0289 38P-0290 38p-0022 38p-0023 38P-0028 /1...
- Page 33 IN S T A L L A T I ON M A N U A L 38P-0235...
- Page 34 IN S TA L L A TI O N M A N U A L 38P-0233 38P-0234 38P-0236...
- Page 35 IN S T A L L A T I ON M A N U A L 38P-0237...
- Page 36 IN S TA L L A TI O N M A N U A L 0 – 3 V Modbus WiFi 38C-1871 /0 Router 38p-0320 /0 – 0 – 3V...
- Page 37 IN S T A L L A T I ON M A N U A L І І І І І...
- Page 38 IN S TA L L A TI O N M A N U A L...
- Page 39 IN S T A L L A T I ON M A N U A L...
- Page 40 DRU Verwarming B.V. The Netherlands Postbus 1021, NL-6920 BA Duiven Ratio 8, NL-6921 RW Duiven...
