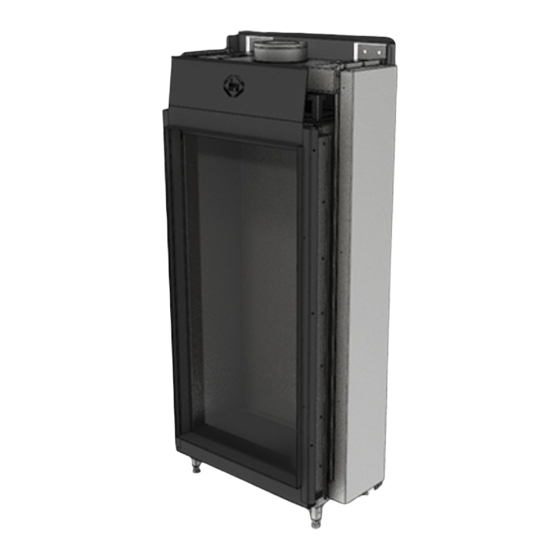

- Page 1 Excellence 50XT RCH G20/G25/G25.3 Natural gas Installation manual Store this document in a safe place...
-
Page 2: Table Of Contents
I N S T A L LA T I O N M A N U A L Contents 1. Introduction 2. CE declaration 3. SAFETY 3.1 General 3.2 Regulations 3.3 Precautions / safety instructions at installation 3.4 Principle of ignition cycle 4. -
Page 3: Introduction
The figures are at the back of this installation manual, in the appendix. Fully and carefully read and use this installation manual, before installing the appliance. When using the DRU Powervent system® or DRU CM system®, the accompanying installation manual should also be read completely and carefully, before installation work is started. -
Page 4: Safety
This has to do with the temperature development in the chimney breast. Ø Only use the flue gas discharge / combustion air supply system supplied by DRU. Ø When installing a free-standing appliance: place the appliance away from the back wall by the minimum distance stated further down in the text. -
Page 5: Principle Of Ignition Cycle
IN S T A LLA TION M A NU A L 3.4 Principle of ignition cycle Below you will find a brief description of how this appliance is ignited. The receiver in the appliance will get a signal from the remote control to start the ignition process. The receiver will get the signal to start the ignition process. -
Page 6: Installation
It is possible to operate one or more lamps (in case of several lamps, a maximum of 0.5A/250VAC/30VDC) via the remote control of the appliance. You could think of the lamps of Dru's lux elements. For this, you can use switch contact B on the receiver (see appendix 3, fig 36). -
Page 7: Placing A Built-In Appliance
(if applicable) Not all built in DRU appliances are supplied with a control hatch. Built in appliances must be installed with the DRU control hatch. This is necessary to ensure a durable, safe and !Caution proper operation. The DRU control hatch can be ordered separately. Exceptions are: Appliances with supplied DRU guard cabinet. -
Page 8: Placing The Control Hatch
!Tip You should preferably apply the ventilation holes (outgoing) on both sides of the chimney breast. Use the DRU ventilation elements. Check the following issues, before the chimney breast is fully closed: •... - Page 9 IN S T A LLA TION M A NU A L Ø Attach the bracket with gas control to the inner frame (A). Proceed as follows: • Unwind the cables. This will, amongst other things, prevent a poor operation of the ignition. •...
- Page 10 5.8 Concentric system 5.8.1 General The appliance is connected to a flue gas discharge / combustion air supply system delivered by DRU, hereafter referred to as the concentric system. The diameter for this connection is indicated in appendix 2, table 2. The passage to the outside can be created with a wall terminal (C11) or a roof terminal (C31).
-
Page 11: Placing Concentric System
The following requirements apply when connecting to an existing chimney: • Only allowed when used in combination with the special DRU chimney set. The installation regulation is parat of the delivery. •... -
Page 12: Additional Instructions
I N S T A L LA T I O N M A N U A L 5.10 Additional instructions Ø Connect the appliance to the wall using wall brackets (B) and the key bolts supplied (see Appendix 3, Fig. 1). 5.11 Glass panes •... - Page 13 IN S T A LLA TION M A NU A L 5.11.2 Placing the glass pane The glass window is fitted by using teh above procedure, in reverse order (see Appendix 3, Fig. (6 to 8). !Caution • Avoid/remove fingerprints on the glass pane, since otherwise they will burn into the surface; •...
-
Page 14: Setting The Appliance
I N S T A L LA T I O N M A N U A L 5.12 Setting the appliance The appliance has to be set in such a way that it works correctly in combination with the concentric system. For that purpose, it is possible to install a restrictor slide and/or remove the air inlet guide. -
Page 15: Placing The Wood Set
IN S T A LLA TION M A NU A L 5.13 Placing the wood set The appliance is supplied with a wood set. The vermiculite used to fill the burner, is black. Strictly observe the following instructions to prevent unsafe situations: !Caution Ø... -
Page 16: Control
IN S TA LLA TION M A N U AL 6. Control The appliance is supplied with a wireless black remote control for the user (see appendix 3, fig. 35 (B)). As an option, an orange remote control can be supplied for the installer (see appendix 3, fig. 35 (O). Controlling the flame height, igniting and switching off take place through the black remote control controlling the receiver. - Page 17 6.2.2.2 Control via application Also when operating the appliance via a tablet provided with the DRU Control App (iOS or Android), you will need a communication module. This module can be ordered from DRU. In order to control the fire via an application, proceed as follows: Ø...
-
Page 18: Final Inspection
I N S T A L LA T I O N M A N U A L 7. Final inspection In order to check whether the appliance is working properly and safely, you must perform the following inspections before the appliance is put into operation. 7.1 Gastightness All connections must be gastight. -
Page 19: Flame Picture
IN S T A LLA TION M A NU A L !Tip When checking whether the main burner continuous to burn, it is possible that it switches off after 15 seconds. In that case, this will be caused by the fact that there is no ionization detection and because the glass window has not been placed. -
Page 20: Parts
I N S T A L LA T I O N M A N U A L Ø Perform the inspection as described in chapter 7. 8.1 Parts Components that have to be replaced are available at the supplier. Delivery You must explain to the user how to operate the appliance. -
Page 21: Appendix 1 Malfunctions
IN S T A LLA TION M A NU A L Appendix 1 Malfunctions Error messages Error code Problem Possible cause Remedy Communication loss Communication cable does Make sure the connectors of between receiver and not make contact the communication cable burner device make proper contact Communication cable... - Page 22 I N S T A L LA T I ON M A N U A L Error messages Error code Problem Possible cause Remedy Ionization pin Replace the ionization (follow-up) defective (measure ionization current when 0) ESYS is not released ESYS is in hard-lock Wait half hour until ESYS resets itself.
- Page 23 IN S T A LLA TION M A NU A L Appendix 2 Tables Table 1: Parts included with the delivery Part Number Wood set Control hatch Manual control hatch Installation manual User manual Decorative strip left Decorative strip right Restrictor slide Key bolts M8x140x50 Back-up self-tapping screws for mounting the glass panes...
- Page 24 Categorie 2ELL Concentric appliance connection 150/100 Applicable concentric systems DRU LAS ES-E 200/150/100, DRU LAS ES-I 150/100, DRU LAS AG-I 150/100, DRU PV-I 100/60 Flame protection version Separated ignition / ionization plugs Atmosphere safety Explosion hatch Ventilation hole chimney breast 200 cm²...
- Page 25 IN S T A LLA TION M A NU A L Table 3: Line-pressure when using G31 Country mbar NL / DK / FI / NO / SE / HU / BA / GR FR / BE / IT / PT / ES / GB / IE Permissibility and conditions concentric system with wall terminal Table 4: Conditions for setting the appliance G20/G25/G25.3...
- Page 26 I N S T A L LA T I ON M A N U A L Permissibility and conditions concentric system with roof terminal Table 5: Determining permissibility concentric system with roof terminal G20/G25/G25.3 Total number of meters Total no. of meters vertical and/or sloping pipe length horiz.
- Page 27 IN S T A LLA TION M A NU A L 38C-1759 /2 Excellence 50XT...
- Page 28 I N S T A L LA T I O N M A N U A L Tot min. 200cm² 38c-1811 /0...
- Page 29 IN S T A LLA TION M A NU A L 38C-1868 /0...
- Page 30 I N S T A L LA T I ON M A N U A L 1x90° 1x90° 38c-744z 38c-744u 0 - 1m 1x90° 38c-744y >1 - 3m 38C-1813 /0 38C-1812 /0...
- Page 31 IN S T A LLA TION M A NU A L max.14cm 38C-1707 /2 38c-1815 /0 38C-1814 /0...
- Page 32 I N S T A L LA T I ON M A N U A L 38P-0289 38P-0290 38p-0022 38p-0023 38P-0028 /1...
- Page 33 IN S T A LLA TION M A NU A L 38P-0235...
- Page 34 I N S T A L LA T I ON M A N U A L 38P-0233 38P-0234 38P-0236...
- Page 35 IN S T A LLA TION M A NU A L 38P-0237...
- Page 36 I N S T A L LA T I ON M A N U A L 0 – 3 V Modbus WiFi 38C-1871 /0 Router PowerVent ® max. 80W 230VAC max. 0,5A / 250VAC / 30VDC 0 - 3V 38P-0790 /0...
- Page 37 IN S T A LLA TION M A NU A L І І І І І І...
- Page 38 I N S T A L LA T I ON M A N U A L...
- Page 39 IN S T A LLA TION M A NU A L...
- Page 40 DRU Verwarming B.V. The Netherlands Postbus 1021, NL-6920 BA Duiven Ratio 8, NL-6921 RW Duiven...
