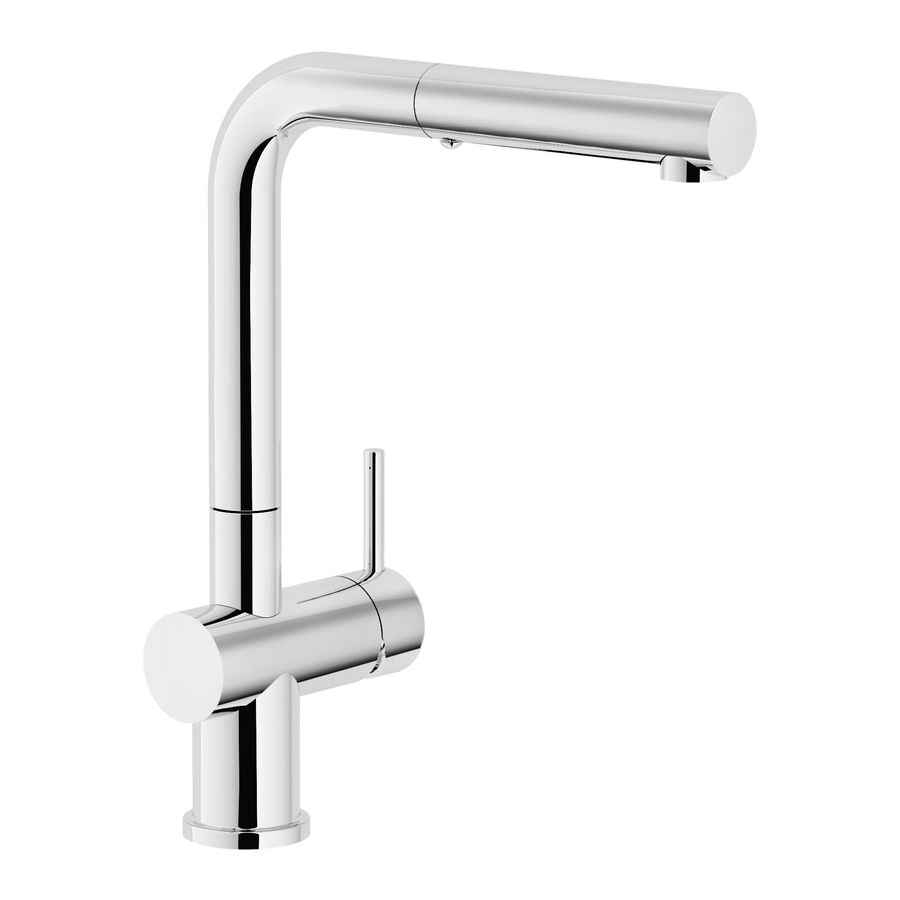

Franke ACTIVE PLUS FF3800/3880/3801/3802/3803/3804/3805/3806 Manual

TECHNICAL DATA

Certifies this faucet complies with ASME A112.18.1 / CSA B125.1 & NSF 61, NSF 372 and AB1953

NOTE:
Contact us immediatly if you see inconsistencies.
Phone: (1- 800-626-5771)
website: www.frankeksd.com
email: ks-customerservice.us@franke.com

CONTENTS IN BOX

1. Pull out spray assembly
2. Rubber washer
3. Pull out hose
4. Faucet assembly
5. Rubber washer
6. Rubber washer
7. Plastic flange
8. Fixing plate
9. Fixing nut
10. Pull out supply hose
11. Weights
12. Screws
13. Supply hoses
14. Aerator Wrench

INSTALLATION INSTRUCTIONS

1. Remove all contents from the package and check for completeness.
2. Connect the pull out spray (1) to the pull out hose assy (3) hand tight. Ensure the rubber washer (2) is in place.
3. Turn off water supply.
4. Cut a mounting hole 1 3/8 diameter (35mm) in the desired position incounter top or sink (if one isn't available).
5. Place the rubber washer (5) over the hole.
   ATTENTION: The washer should be sitting between the countertop and faucet base.
   DO NOT use putty or other sealant at this location.

NOTES:
Solid surface installation: The countertop mounting surface needs to be flat and free of debris otherwise the faucet may not sit properly.
For tile installations, avoid installing faucet near or on top of grout lines.
This may cause a weak joint between the faucet and the counter and could cause leaks.

6. Install the mounting hardware to the base of faucet body in the following order - rubber washer (6), plastic flange (7), fixing plate (8) as shown.
7. Tighten with the fixing nut (9) on the base of faucet body.
8. Connect the pull out hose (3) to the pull out supply hose (10) using the quick connect fitting. Slide the quick connect fitting sleeve to the "open" position, insert the hose fitting into the connector. You should hear a "click". Slide the sleeve to the "lock" position, you should hear another "click". This will ensure the fitting is sealed and locked.
9. Place the weights (11) on the pull out hose (3) with the screws (12) approximately 2" (50mm) above the bend in the bottom of the pull out hose.
10. Connect the flexible supply hoses (13) to the water supply in the house.
11. Remove the aerator using 7/8" (22 mm) wrench, turn on water, flush the faucet for any debris and check for leaks.

Reinstall the aerator and ensure everything is functioning properly.

STANDARD MAINTENANCE AND TROUBLESHOOTING

REPLACING THE CARTRIDGE

1. Shut off the water supply to the faucet.
2. Turn on the faucet briefly to relieve any pressure inside the faucet.
3. Move the faucet handle to the " OFF" position.
4. Unscrew lever handle C and remove sleeve.
5. Remove the screw B using an allen key.
6. Pull the lever base A from the body.
7. Unscrew the cap D.
8. Unscrew the cartridge lock nut E.
9. Lift ceramic disk cartridge F from the body and replace it with new cartridge. Ensure the two lugs on bottom of the cartridge sit properly in the allocated holes at the base of the body.
10. Re-assemble faucet in reverse order.
11. Test for leakage.

GENERAL MAINTENANCE

Clean aerator periodically for any buildup.
Do not use harsh detergents, solvents, chemical agents, metallic sponges, etc. that could harm the surface and damage the finish.
Clean only with a soft sponge and soapy water.

SPARE / REPLACEMENT LIST
