INSTALLATION GUIDE
Little Butler® Hot Water Dispensing Faucets and Drinking Water Dispensing Faucets
DW5000 / LB5100 Series
DW7000 / LB7100 Series
KITCHEN
SYSTEMS
LB5200 Series
LB7200 Series
DW9000 / LB9100 Series
Rev 3 - 2/5/2014
DW6100 / LB6100 Series
DW8000 / LB8100 Series
LB9200 Series
LB6200 Series
LB8200 Series
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Franke Little Butler LB5100 Series
Summary of Contents for Franke Little Butler LB5100 Series
- Page 1 INSTALLATION GUIDE Little Butler® Hot Water Dispensing Faucets and Drinking Water Dispensing Faucets DW5000 / LB5100 Series LB5200 Series DW6100 / LB6100 Series LB6200 Series DW7000 / LB7100 Series LB7200 Series DW8000 / LB8100 Series LB8200 Series DW9000 / LB9100 Series LB9200 Series KITCHEN SYSTEMS...
-
Page 2: Technical Data
TECHNICAL DATA Recommended Pressure Range - 15 to 75 PSI has certified that this faucet complies with NSF61 and NSF372 drinking water system component requirements. These requirements meet California Health and Safety Code requirements for low lead (AB1953) as well as the new low lead requirements of the US Safe Drinking Water Act to go into effect in January 2014 INSTALLATION INSTRUCTIONS... -
Page 3: Installation

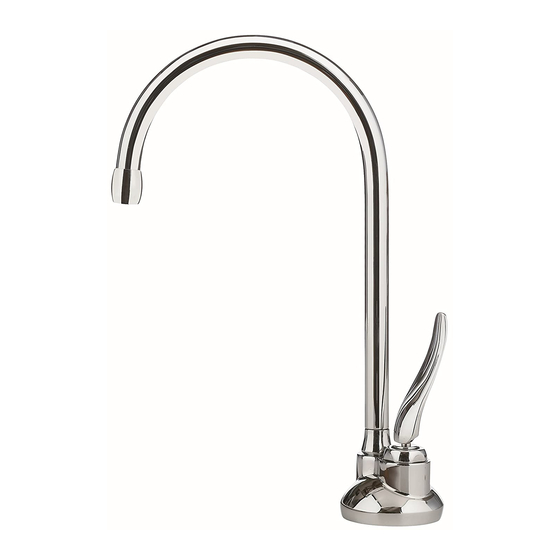

Installation Little Butler® Series Hot only Faucets (LB_100) Package Contents: 1 - Faucet (item pictured may differ from faucet you have. See front cover for accurate illustration) 2 - Fastening Set (1 - O-Ring) (1 - Mounting Washer) (1 - Mounting Spacer) (1 - Mounting Nut) 3 - Cold Water Supply Tubing (black 3/8”... - Page 4 There are 2 different styles of Little Butler® Series dispensers available: The LB_200 Series dispensers offer hot and filtered water separately. These dispensers must be used in conjunction with both a Franke heating tank unit and a Franke filtration system. They utilize 4 tubes to connect to the system.
- Page 5 Installation It is recommended to take the components and locate their optimum positions before starting the installation. Make sure there is adequate clearance for the dispenser handle(s) to open fully without interference. Make sure all plumbing and electrical connections will reach the intended mounting positions for all the components and there will be no obstructions or sharp bends in plumbing.
- Page 6 Installation Next, Connect the cold water supply tubing to the faucet. This will differ depending on which dispensing faucet you have. • For Drinking Water Series Faucets 3/8” (DW_ _00) and Little Butler® Series Push Hot only Faucets (LB_100) , insert the Fitting remainder of the black 3/8”...
- Page 7 Installation NOTE: Depending on counter top Mounting Washer thickness, it may be easier to access the mounting nut by disconnecting the cold Mounting Spacer water supply hose(s). Mounting Nut Install fastening set as shown: mounting washer, mounting spacer (if necessary), and mounting nut.
- Page 8 Installation LB_200 Red Heating Tank Supply Tubing Silicone Heating Tank Return Tubing Connect the red ¼” Heating Tank Supply Hose to the heating tank inlet and the Tubing high temp silicone Heating Tank Return Connections to 3/8” Black Hose to the heating tank outlet per the Heating Tank Poly-tubing instructions provided with the heating...
-
Page 9: Maintenance
Usage WARNING! Do not operate both handles at the same time, as this can build up pressure in the heating tank causing the bladder to expand and eventually burst. Such damage is not covered by the warranty. Seasonal Shutdown: If you plan to be away from home for extended periods of time, refer to the filtration system instructions and heating tank instructions (if applicable) under the Winterizing or Seasonal Shutdown sections to prevent system failures. -
Page 10: Replacement Parts
Replacement Parts Replacement Part # for Identified Part #4 Lever #8 Cold #9 Cold #13 Red Cold Cover (see chart below Mounting Mounting Mounting Water Water 1/4” Tee 1/4” x 3/8” Shut-off and Blue Model # for all series) Cartridge Cartridge Washer Spacer... -
Page 11: Limited Lifetime Warranty
Franke accepts no liability for such damages. The Franke warranty is limited to the above condition and to the warranty period specified herein and is exclusive. Franke DISCLAIMS all other warranties, expressed or implied, including the IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE. - Page 12 Franke Consumer Products Inc., Kitchen Systems Division 800 Aviation Parkway Smyrna, TN 37167 Phone: 1-800-626-5771 Fax: 1-888-685-0007 www.frankeksd.com...
