FRANKE MINERVA 3-IN-1 HOT WATER TAP
HEATING TANK INSTALLATION GUIDE
Introduction
Thank you for purchasing this Franke product, which has been designed
and manufactured to the highest quality standards. This product must
be installed and commissioned by a qualified professional.
Read this installation guide carefully and plan the layout of the
installation carefully before proceeding as failure to install and maintain
this unit in strict accordance with these instructions will render your
product warranty invalid. The manufacturer will not accept liability for
damage or accidents resulting from incorrect installation or operation.
Package Contents
1

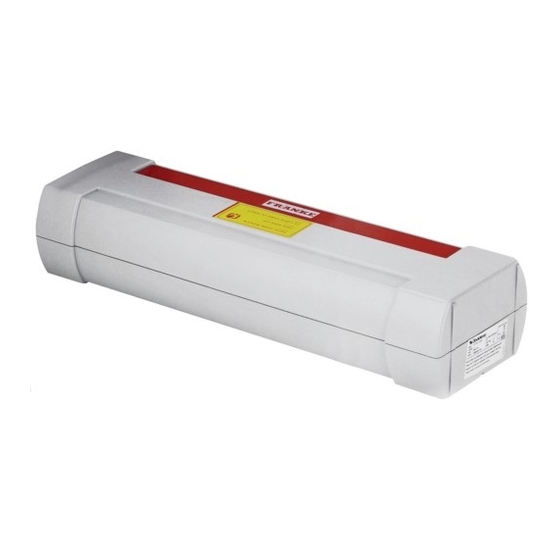

Franke heating tank unit
2
15mm copper pipe (optional)
3
T-coupling
4
Pressure relief valve and tundish
5
Data plate (fixed to heating tank)
6
Plastic discharge T piece
7
Flexible plastic hose
8
Sealing ring
9
x2 Compression reducing rings 15-10 mm
10
Water Filter Assembly (supplied in separate box)
1
2
5
4
DATA PLATE
8
7
3
10
6
9
