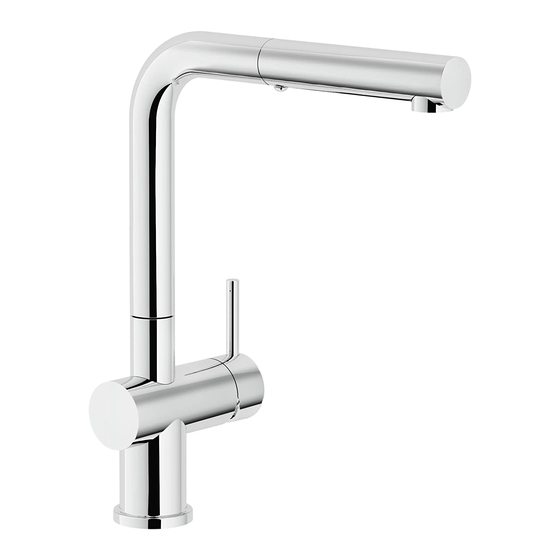

Franke ACTIVE PLUS FF3800 Installation Manual

STANDARD MAINTENANCE AND TROUBLESHOOTING

REPLACING THE CARTRIDGE

1. Shut o the water supply to the faucet.
2. Turn on the faucet brie y to relieve any pressure inside the faucet.
3. Move the faucet handle to the " OFF" position.
4. Unscrew lever handle C and remove sleeve.
5. Remove the screw B using an allen key.
6. Pull the lever base A from the body .
7. Unscrew the cap D.
8. Unscrew the cartridge lock nut E.
9. Lift ceramic disk cartridge F from the body and replace it with new
cartridge. Ensure the two lugs on bottom of the cartridge sit properly
in the allocated holes at the base of the body.
10. Re-assemble faucet in reverse order.
11. Test for leakage.

GENERAL MAINTENANCE

Clean aerator periodically for any buildup .
Do not use harsh detergents, solvents, chemical agents, metallic sponges,
etc. that could harm the surface and damage the nish.
Clean only with a soft sponge and soapy water.

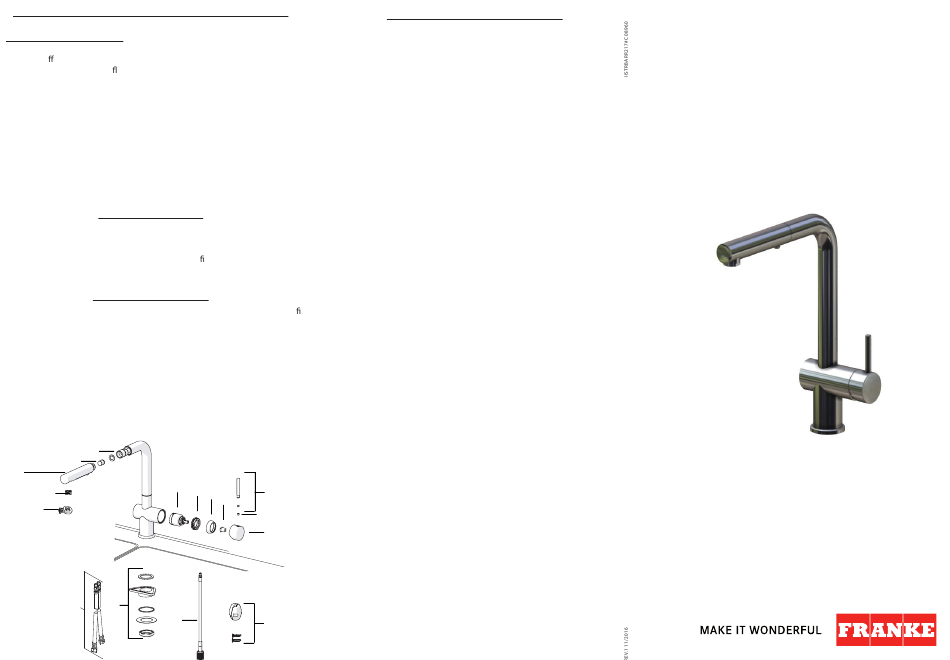

SPARE / REPLACEMENT LIST

A+B+C+G Handle assembly
D. Cap
E. Lock nut
F. Cartridge
H. Pull out hose
J+K+L+L1 Pull out spray assembly+key
J. Check Valve 1.75 gpm
L. Aerator
M.
Supply hoses
N. Mounting hardware kit
O. Pull out supply hose
P.
Weight
H
J
K
F
L
L1
N
M
O
