Quick Start Guide

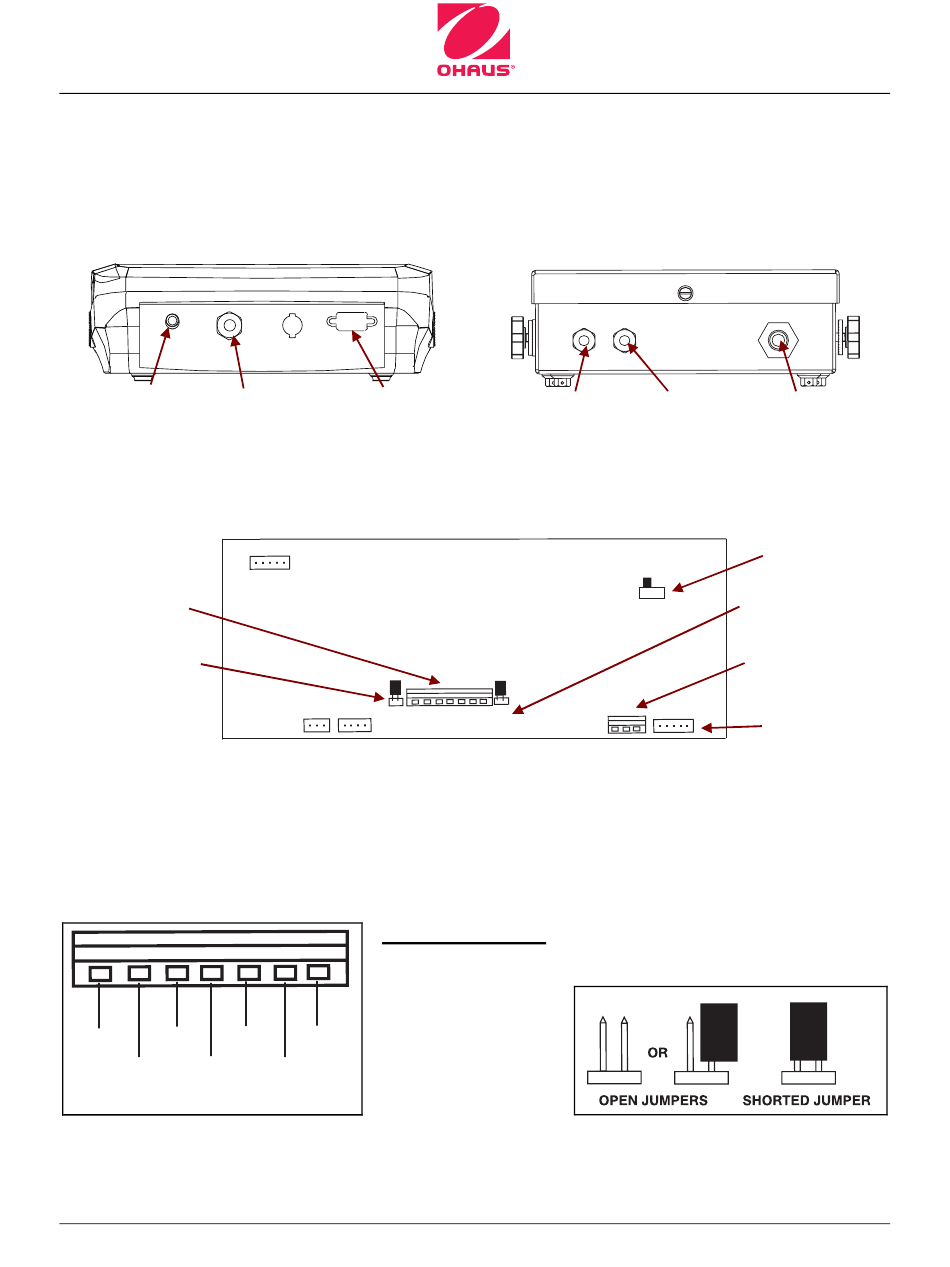

ASSEMBLY
Both the T31P and T31XW connect to a scale base through a Load Cell Cable that connects to
the Indicator's Main Printed Circuit Board (PCB). Follow these connection instructions.
Load Cell cable connections are on the rear of both models:
T31P (rear view)
Power
Strain relief for
Receptacle
Load Cell Cable
Remove the four screws from the Bottom Housing. Separate the Top and Bottom Housing.
Connect the Load Cell cable leads to Load Cell Terminal J5 on the T31's Main Printed Circuit
Board. (Note Jumpers W1 and W2. RS232 terminals and LFT Switch are also shown.)
Load Cell
Terminal J5
Sense
Jumper W1
Jumper Connections
For a 4-wire load cell with no sense wires, short Jumpers W1 and W2.
For a 6-wire load cell that includes sense wires, open Jumpers W1 and W2.
For load cells with an extra ground shield wire, connect the shield to the center position (GND).
+EXC
+SIG
-SIG
+SENS
GND
Load Cell wiring.
Re-assemble the Top and Bottom Housing.
Ohaus Corporation www.ohaus.com
RS232
Connector
J4
W1
Printed Circuit Board (PCB), T31 Indicator
Pin
Connection
J5-1
J5-2
J5-3
J5-4
-EXC
J5-5
-SENS
J5-6
J5-7
T31XW (rear view)
Strain relief for
RS232 Cable
OFF
J5
J7
W2
+Excitation
+Sense
+Signal
GND
–Signal
–Sense
–Excitation
i
T31 Indicators
Strain relief for
Strain relief for
Load Cell Cable
Power Cable
LFT On/Off
Switch
ON
Sense
Jumper W2
RS232
Terminal J7
(T31XW only)
J6
RS232
Terminal J6
(T31P only)
Open/shorted jumpers.
T31 Indicators Quick Start Guide
