Sundara

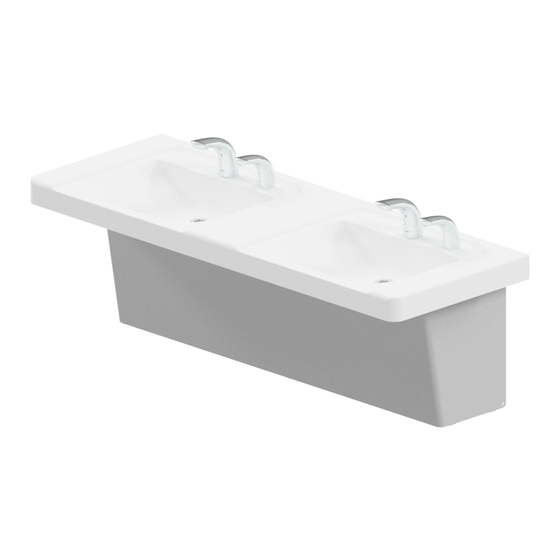

Inlet Double Basin
®
Hand Washing System
All goods sold hereunder are warranted to be free from defects in material and factory workmanship for a period of three years from the
date of purchase. Decorative finishes warranted for one year. We will replace at no costs goods that prove defective provided we are
notified in writing of such defect and the goods are returned to us prepaid at Atlanta, GA, with evidence that they have been properly
maintained and used in accordance with instructions. We shall not be responsible for any labor charges or any loss, injury or damages
whatsoever, including incidental or consequential damages. The sole and exclusive remedy shall be limited to the replacement of the
defective goods. Before installation and use, the purchaser shall determine the suitability of the product for his intended use and the
purchaser assumes all risk and liability whatever in connection therewith. Where permitted by law, the implied warranty of merchantabi-
lity is expressly excluded. If the products sold hereunder are "consumer products," the implied warranty of merchantability is limited to
a period of three years and shall be limited solely to the replacement of the defective goods. All weights stated in our catalogs and lists
are approximate and are not guaranteed.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
ADVERTENCIA: Cáncer y daño reproductivo - www.P65Warnings.ca.gov
AVERTISSEMENT: Cancer et effets néfastes sur la reproduction - www.P65Warnings.ca.gov
NOTE: The information in this manual is subject to change at any time without notice. Installations may
be performed at different times of construction by different individuals. For this reason, these instructions
should be left on-site with the facility or maintenance manager.
NOTE: READ ENTIRE MANUAL PRIOR TO INSTALLING PRODUCT.
Rev. B | Date: 10/13/2022 | C.N. No. 144818 | Prod./Dwg. No. FV663
Patent zurn.com/patents
US 1.855.ONE.ZURN CANADA 1.877.892.5216
ZURN.COM
Z5005.02
Sundara
®
Hand Washing System
Installation, Maintenance,
and Parts Manual
PATENT(S) PENDING
LIMITED WARRANTY
Inlet Triple Basin
Advertisement
Table of Contents
Related Manuals for ZURN Sundara Z5005.02
Summary of Contents for ZURN Sundara Z5005.02
- Page 1 For this reason, these instructions should be left on-site with the facility or maintenance manager. NOTE: READ ENTIRE MANUAL PRIOR TO INSTALLING PRODUCT. Rev. B | Date: 10/13/2022 | C.N. No. 144818 | Prod./Dwg. No. FV663 Patent zurn.com/patents US 1.855.ONE.ZURN CANADA 1.877.892.5216 ZURN.COM...
- Page 2 Specifications: Sundara ® Inlet double basin lavatory system manufactured by Zurn Industries. Lavatory shall be mounted at standard height to conform with ANSI, UFAS, TAS and ADA Accessibility Standards. Counter and integral basin to be constructed of Sundara ® solid surface resin with aluminum trihydrate and other additives conforming to CSA B45.5 / IAPMO Z124 and IAPMO IGC 156 standards.
-
Page 3: Required Tools
L Brackets Installation Required Tools: Allen Wrench: Torx Wrench: T10 & T25 2 [12.7] For ease of installion, lay basin on its top surface on a cush- ioned surface. Install hanger brackets 1/2 inch from front face of L-bracket as shown.** Use socket wrench to torque the screws (approximately 4-5 complete turns bottom out approximately 5 ft-lbs of torque). -
Page 4: Installing Mounting Bracket
Soap Dispenser Installation Retrofitting Hanger Bracket Installation Wall Stud Plywood Wall Stud Bolt supplied by Drywall Hanger Bracket installer to attach the plywood to wall studs 1/2” Thick Hanger Bracket Plywood Recommended for retrofit: • Measure the rough in dimensions on the wall. Top edge of the cutout marked must be 2”... -
Page 5: Shroud Installation
Installing with Carrier Option P Trap Installation & Water Supply Connection to Faucet Z1240-EZR Carrier System Connect the tail piece to Grid Drain Optional Waste (threaded connection) Line Sleeve (-WL) Then attach P-Trap to tailpiece Adjust the tail piece base on drain outlet on the wall. Warning: Must be handled by at least 2 people Avertissement : s’y prendre à... - Page 6 • Place shroud on hanger hooks of wall bracket as shown. • Zurn recommends that damages should be repaired by certified solid surface fabricator or repair agents. Then, position the pivot of the shroud through the hole in the • Blemishes to the basin surface (such as scratches, burnmarks, and minor chipping) can be repaired by sanding with wall bracket.
