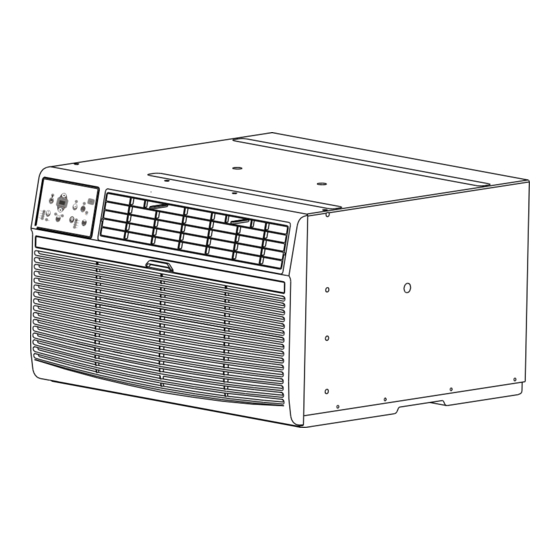

WINDOW AIR CONDITIONER

USER MANUAL

Questions? 1-866-206-0888

87795017

MWW-10CRN1-BI4

years/ans

ase read

ture reference.

Table of Contents

Need help?

Do you have a question about the 87795017 and is the answer not in the manual?

Questions and answers

Summary of Contents for Uberhaus 87795017

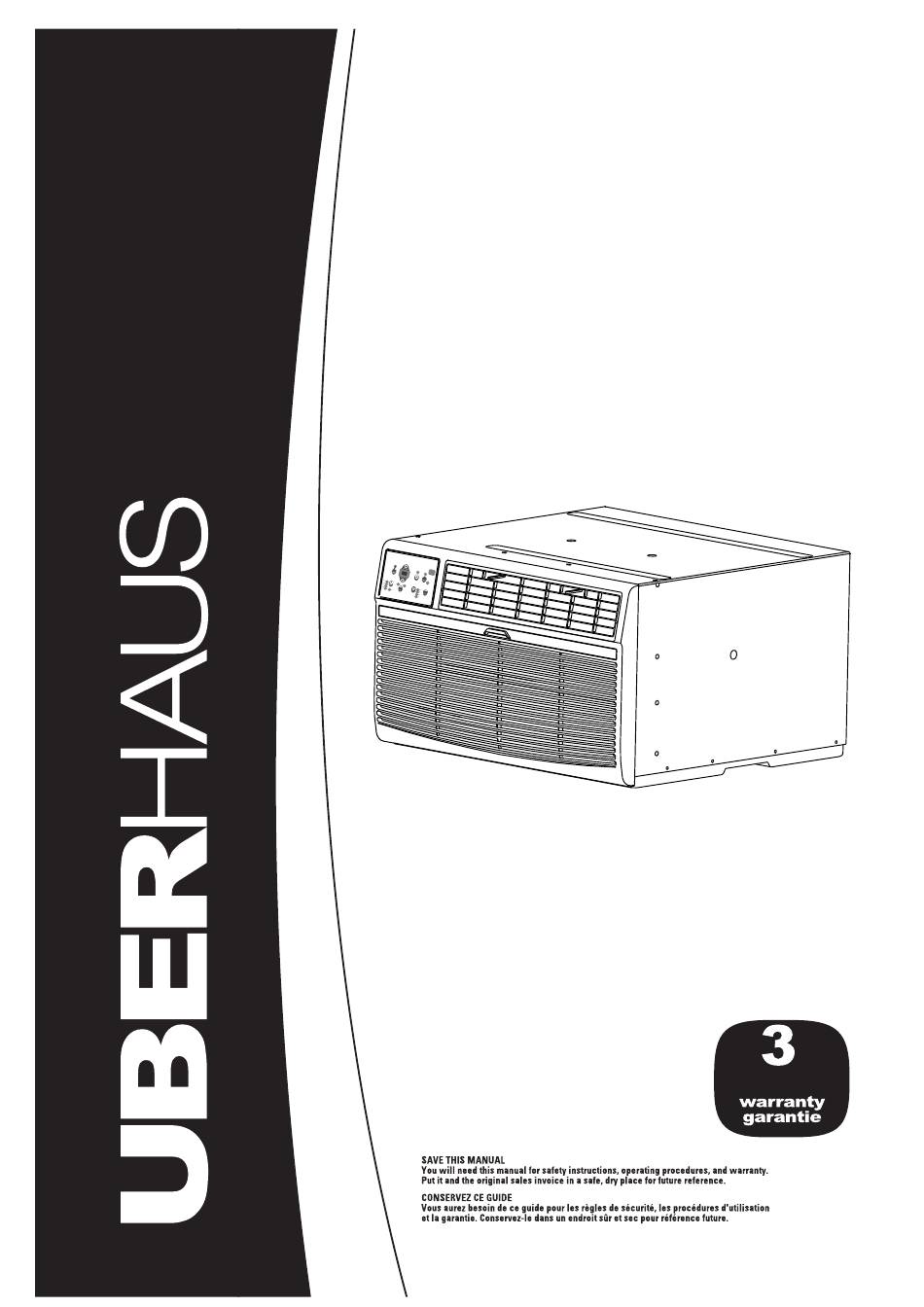

Page 1 WINDOW AIR CONDITIONER USER MANUAL 87795017 MWW-10CRN1-BI4 years/ans Questions? 1-866-206-0888 ase read ase read ase read ase read ase read ase read ase read ase read ase read ase read ase read ase read ase read ase read ase read...
Page 2: Table Of Contents
CONTENTS 1. SAFETY PRECAUTIONS..............2 2. IMPORTANT SAFETY INSTRUCTIONS ..........4 3. NORMAL SOUNDS ................5 4. AIR CONDITIONER FEATURES ............5 5. INSTALLATION INSTRUCTIONS............9 6. CARE AND CLEANING ..............22 7. TROUBLESHOOTING TIPS...............23 8. REMOTE CONTROL FEATURES AND OPERATION.......25 9. WARRANTY..................32 ead ThisManual Inside you will find many helpful hints on how to use and maintain your air conditioner properly.
Page 3: Safety Precautions
Safety Precautions To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The seriousness is classified by the following indications. WARNING This symbol indicates the possibility of death or serious injury.
Page 4 ! CAUTION Do not clean the air Ventilate the room well when When the air filter is to be removed, do not touch the conditioner with water. used together with a stove, etc. metal parts of the unit. It may cause an injury. Water may enter the unit and An oxygen shortage may occur.
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS For your safety WARNING NOTE The power supply cord with Do not store or use gasoline or other flammable vapors and liquids in this air conditioner contains a current the vicinity of this or any other appliance. detection device designed to reduce Avoid fire hazard or electric shock.
Page 6: Normal Sounds
NORMAL SOUNDS Vibration High Pitched Chatter Unit may vibrate and make noise High efficiency compressors because of poor wall or window may have a high pitched chatter construction or incorrect installation. during the cooling cycle. Sound of Rushing Air At the front of the unit, you may Pinging or Switching hear the sound of rushing air being moved by the fan...
Page 7 AIR CONDITIONER FEATURES(CONTINUED) NOTE: The following instructions represent the Unit Controls, the same instructions can be used for the Remote Control. TO TURN UNIT ON: DO THIS: Press the On/Off button. Auto DISPLAYS: Shows the set temperature in C or F and the Auto-timer settings.While on Fan only mode,it shows the room temperature.
Page 8 AIR CONDITIONER FEATURES(CONTINUED) NOTE: To choose operating mode, press the Mode button. TO SELECT THE Each time you press the button, a mode is selected OPERATING MODE: in a sequence that goes from Auto, Cool, Dry ,Heat (cooling only models without) and Fan. The indicator light beside will be illuminated and remained on once the mode is selected.
Page 9 AIR CONDITIONER FEATURES(CONTINUED) TIMER: AUTO START/ STOP FEATURE: NOTE: When the unit is on or off, first press the Timer button, the TIMER ON indicator light illuminates. It indicates the Auto Start program is initiated. - When the time of TIMER ON is displayed ,press the DO THIS: Timer button again, the TIMER OFF indicator light...
Page 10: Installation Instructions
ADDITIONAL THINGS YOU SHOULD KNOW Now that you have mastered the operating procedure, here are more features in your control that you should become familiar with. The Cool circuit has an automatic 3 minute time delayed start if the unit is turned off and on quickly.
Page 11 INSTALLATION INSTRUCTIONS(CONTINUED) How to Install 1. Identify the wall-sleeve brand for your installation, from the chart below. Brand Wall Sleeve Dimensions (inches) Width Height Depth White-Westinghouse 16,17 or 22 Frigidaire Carrier General Electric/Hotpoint Whirlpool or 23 Fedders/Emerson or 19 Sears/Kenmore Carrier Emerson/Fedders Friedrich...
Page 12 This units increased performance characteristics meant; 1. The rear air intake moved to the opposite side, 2. The depth had to be increased. It is very important that these installation instructions are followed so your unit can operate at maximum efficiency. If this is an existing sleeve, and there is an existing rear grille, the louvers will have to be bent as per the instructions at the beginning of each section.
Page 13 Wall Sleeve Brands: #1 Emerson 15 Deep 1. Redirect the louvers at the back of the wall sleeve as shown in the illustration. The use of pliers is recommended. 2. Attach(1)1 x3/8 x25 long seal in the center at the top of the sleeve. Remove the backing paper and press into position.
Page 14 Wall Sleeve Brands: 3 4 / #2 Fedders Deep 1. Redirect the louvers at the back of the wall sleeve as shown in the illustration. The use of pliers is recommended. 2. Attach(2)4 x3 x1 centering/support blocks one on each side wall. Place in center of side wall with the tapered end facing the opening.
Page 15 Wall Sleeve Brands: 3 4 / #3 Fedders or Friedrich Deep 1. Redirect the louvers at the back of the wall sleeve as shown in the illustration. The use of pliers is recommended. 2. Attach(2)4 x3 x1 centering/support blocks one on each side wall. Place in center of side wall with the tapered end facing the opening.
Page 16 Wall Sleeve Brands: 7 8 / #4 General Electra/Hotpoint 16 Deep 1. Redirect the louvers at the back of the wall sleeve as shown in the illustration. The use of pliers is recommended. 2. Cut (2) 17 Tapered Spacer Blocks as shown below into two pieces.
Page 17 Wall Sleeve Brands: #5 Sears or Carrier 51S Series 5 8 / ( 18 Deep) 1. Redirect the louvers at the back of the wall sleeve as shown in the illustration. The use of pliers is recommended. 2. Install (2) tapered spacer blocks to the floor of the sleeve as shown.
Page 18 Wall Sleeve Brands: 1 8 / #6 Whirlpool Deep 1. Redirect the louvers at the back of the wall sleeve as shown in the illustration. The use of pliers is recommended. 2. Cut (2) 17 Tapered Spacer Blocks as shown below into two pieces.
Page 19 Wall Sleeve Brands: #7 Whirlpool ( 23 Deep) 1. Redirect the louvers at the back of the wall sleeve as shown in the illustration. The use of pliers is recommended. Because of the increased unit depth, first try dry fitting using the method described below: 1.
Page 20 Wall Sleeve Brands: #8 White Westinghouse/Frigidaire/ Carrier 52F Series ( 16 +17 Deep) 1. Redirect the louvers at the back of the wall sleeve as shown in the illustration. The use of pliers is recommended. 2. Attach (1)1 x3/8 x25 long seal in the center at the top of the sleeve.
Page 21 #9 White Westinghouse or Frigidaire Wall Sleeve Brands: ( 23 Deep) Redirect the louvers at the back of the wall sleeve as shown in the illustration. The use of pliers is recommended. Because of the increased unit depth, first try dry fitting using the method described below: 2.
Page 22 FINISHING INSTALLATION: 1. Install the 1 x1 x84 long stuffer-seal between the wall-sleeve and the unit. A flat-bladed screwdriver or putty knife is recommended. 2. Assemble the trim frame by inserting top and bottom pieces into side pieces and snapping into place.
Page 23: Care And Cleaning
CARE AND CLEANING CAUTION Clean your air conditioner occasionally to keep it looking new. Be sure to unplug the unit before cleaning to prevent chock or fire hazards. Air Filter Cleaning The air filter should be checked at least once a month to see if cleaning is necessary.
Page 24: Troubleshooting Tips
TROUBLESHOOTING TIPS Before calling for service, review this list. It may save you time and expense. This list includes common occurrences that are not the result of defective workman-ship or materials in this appliance. Problem Solution Wall plug disconnected. Push plug firmly into wall outlet. Air conditioner does not start House fuse blown or circuit breaker tripped.
Page 25 Problem Solution Unit removing large quantity of moisture from humid room. This is normal during Water dripping excessively humid days. OUTSIDE when unit is cooling. Remote control not located within range. Place remote control within 20 feet & 180 , Remote Sensing radius of the front of the unit.
Page 26: Remote Control Features And Operation
FEATURES OF REMOTE CONTROL 16 ft (5m) of your 16 ft (5m)
Page 30 change...
Page 31 is displayed is displayed...
Page 33: Warranty
WARRANTY Thank you for purchasing this UBERHAUS product. These products have been made to demanding high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 36 months from the date of purchase. This warranty does not affect your statutory rights.
