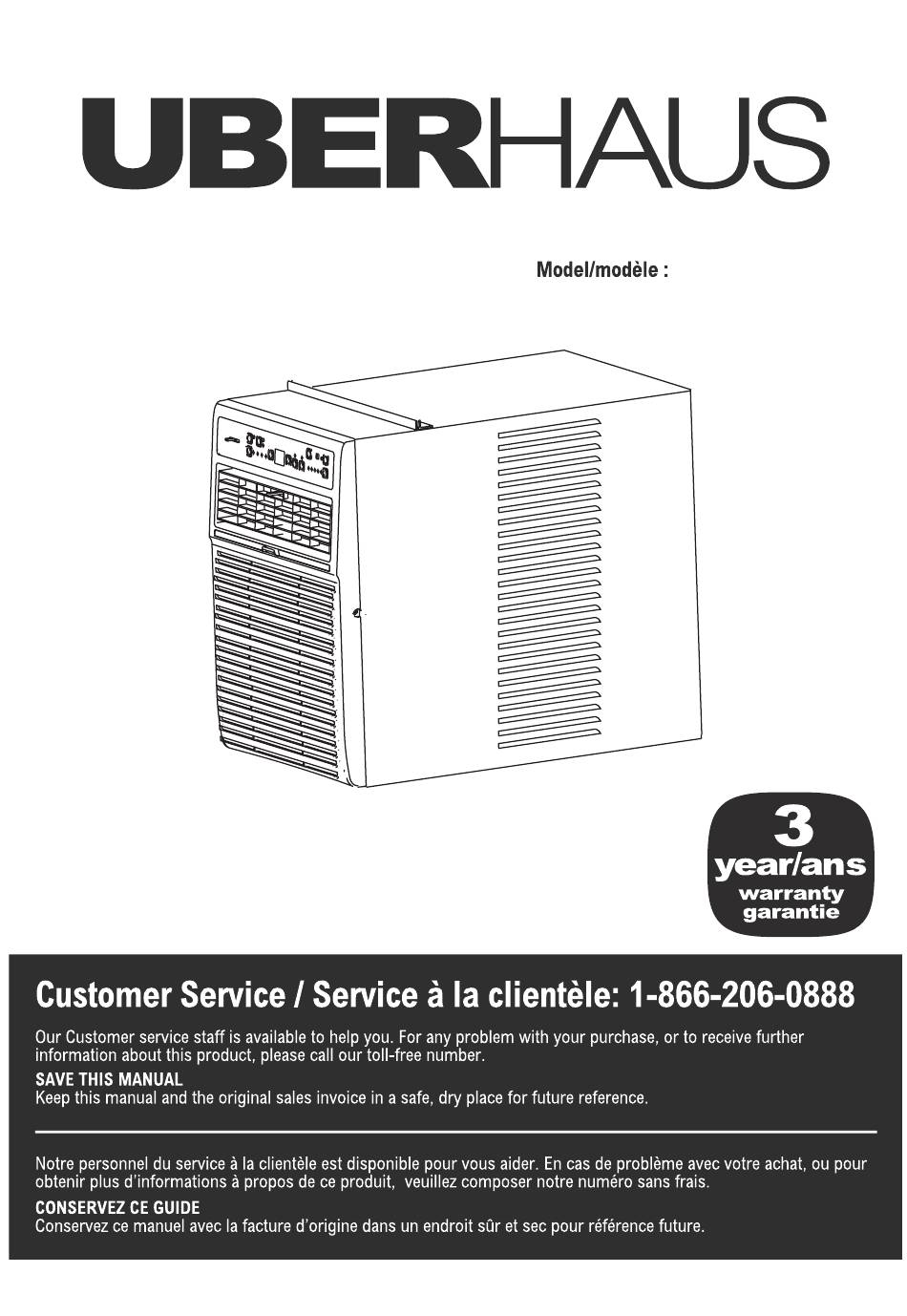

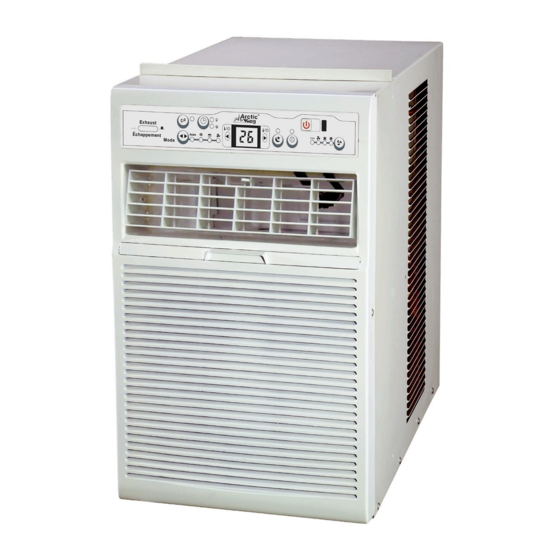

- Page 1 87795012 MWL-10CRN1-BI5 87795037 MWL-12CRN1-BI5 WINDOW AIR CONDITIONER Operator's manual...
- Page 2 CONTENTS 1. SAFETY PRECAUTIONS..............2 2. IMPORTANT SAFETY INSTRUCTIONS ..........4 3. NORMAL SOUNDS ................5 4. AIR CONDITIONER FEATURES ............5 5. INSTALLATION INSTRUCTIONS............10 6. CARE AND CLEANING ..............19 7. TROUBLESHOOTING TIPS..............20 8. REMOTE CONTROLLER FEATURES AND OPERATION ....22 9. WARRANTY ................
- Page 3 Safety Precautions To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The seriousness is classified by the following indications. WARNING This symbol indicates the possibility of death or serious injury.
- Page 4 ! CAUTION When the air filter is to be Do not clean the air Ventilate the room well when removed, do not touch the conditioner with water. used together with a stove, etc. metal parts of the unit. It may cause an injury. Water may enter the unit and An oxygen shortage may occur.
- Page 5 IMPORTANT SAFETY INSTRUCTIONS For your safety WARNING NOTE For some models, the power Do not store or use gasoline or other flammable vapo rs and liquids in supply cord with this air conditioner the vicinity of this or any other appliance. contains a current detection device Avoid fire hazard or electric shock.
- Page 6 NORMAL SOUNDS High Pitched Chatter High efficiency compressors may have a high pitched chatter during the cooling cycle. Vibration Unit may vibrate and make noise Sound of Rushing Air because of poor wall or window construction or incorrect installation At the front of the unit, you may hear the sound of rushing air being moved by the fan Pinging or Switching...
- Page 7 AIR CONDITIONER FEATURES(CONTINUED) NOTE: The following instructions represent the Unit Controls, the same instructions can be used for the Remote Control. TO TURN UNIT ON OR OFF: DO THIS: Press the On/Off button. Auto TO CHANGE TEMPERA TURE NOTE: SETTING: Press or hold either Left( <) or Right (>) button until the desired temperature is seen on the display.
- Page 8 AIR CONDITIONER FEATURES (CONTINUED) NOTE: To choose operating mode, press the Mode TO SELECT THE button. Each time you press the button, a mode OPERATING MODE: is selected in a sequence that goes from Auto, Cool, Dry and Fan. The indicator light beside will be illuminated and will remain on once the mode is selected.
- Page 9 AIR CONDITIONER FEATURES(CONTINUED) TIMER: AUTO START/ NOTE: STOP FEATURE: When the unit is on or off, first press the Timer button, the TIMER ON indicator light illuminates. It indicates DO THIS: the Auto Start program is initiated. Press Timer - When the time of TIMER ON is displayed , press the button Timer button again, the TIMER OFF indicator light...
- Page 10 ADDITIONAL THINGS YOU SHOULD KNOW Now that you have mastered the operating procedure, here are more features in your control that you should become familiar with. The Cool circuit has an automatic 3 minute time delayed start if the unit is turned off and on quickly.
- Page 11 INSTALLATION INSTRUCTIONS NOTE: These instructions describe installation in a typical wood framed window with a wood sliding sash, or installation in a metal casement window. Modification may be necessary when installing in windows made differently than those shown in these instructions. A high widow accessory kit is available for window heights up to 62 (1575mm).
- Page 12 1. Make sure you have all the necessary parts. Installation kit contents: Platform(1) Support brace(1) Adjustment bolt(1) Hex flange nut - 1 / 4 (1) Track seal(1) Side channel seal(1) Foam seal strip/Sash seal Safety bracket(1) 9-11.Screw-2-1/2 (2), or Screw-1-3/4 (2), or Screw-1 (2) 12.
- Page 13 Alternate screw location (depending on the stool depth) Platform tab Window seal Window track...
- Page 15 Remove the two front retaining screws from the front frame. 2. Gently pull the front out and lift up to release it from the case. 3. Then release the coupler plugs. on the...
- Page 16 20. To replace the front First reconnect the coupler plugs, position the exhaust control through the front in the proper location. Then replace the retaining screws that holds the panel in place. Do not push or pull the front panel louvers. 4 or 1 4 or 1 at your local hardware store.
- Page 17 fully...
- Page 18 is in contact with...
- Page 19 Remove the two front retaining screws from the front frame. 2. Gently pull the front out and lift up to release it from the case. 3. Then release the coupler plugs. 16. To replace the front First reconnect the coupler plugs, position exhaust control through the front in the proper location.
- Page 20 CARE AND CLEANING CAUTION CAUTION Clean your air conditioner occasionally to keep it looking new. Be sure to unplug the unit before cleaning to prevent shock or fire hazards. Air Filter Cleaning The air filter should be checked at least once a month to see if cleaning is necessary.
- Page 21 TROUBLESHOOTING TIPS Before calling for service, review this list. It may save you time and expense. This list includes common occurrences that are not the result of defective workman-ship or materials in this appliance. Problem Solution Wall plug disconnected. Push plug firmly into wall outlet. Air conditioner does not start House fuse blown or circuit breaker tripped.
- Page 22 Problem Solution Unit removing large quantity of moisture from humid room. This is normal during Water dripping excessively humid days. OUTSIDE when unit is cooling. Remote control not located within range. Place remote control within 20 and at a 180 Remote sensor radius of the front of the unit.
- Page 23 FEATURES OF REMOTE CONTROL 16 ft (5m) 16 ft (5m)
- Page 25 on some...
- Page 26 between modes change some...
- Page 27 change...
- Page 30 WARRANTY Thank you for purchasing this UBERHAUS product. These products have been made to demanding high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 36 months from the date of purchase. This warranty does not affect your statutory rights.
