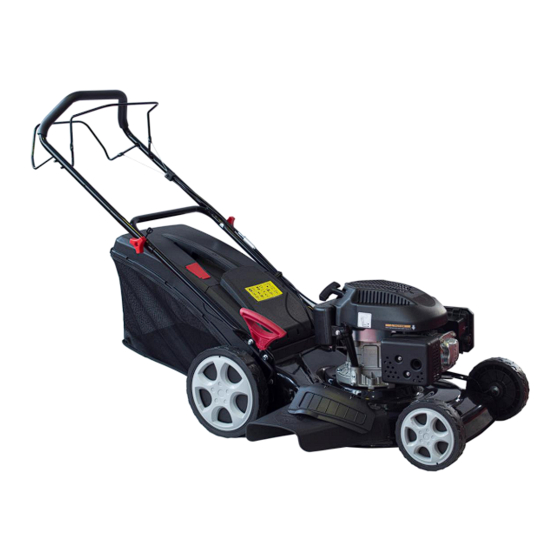

Racing RAC5096-AC-1 Instruction Manual

Gasoline lawnmower
Hide thumbs

Advertisement

Quick Links

Download this manual

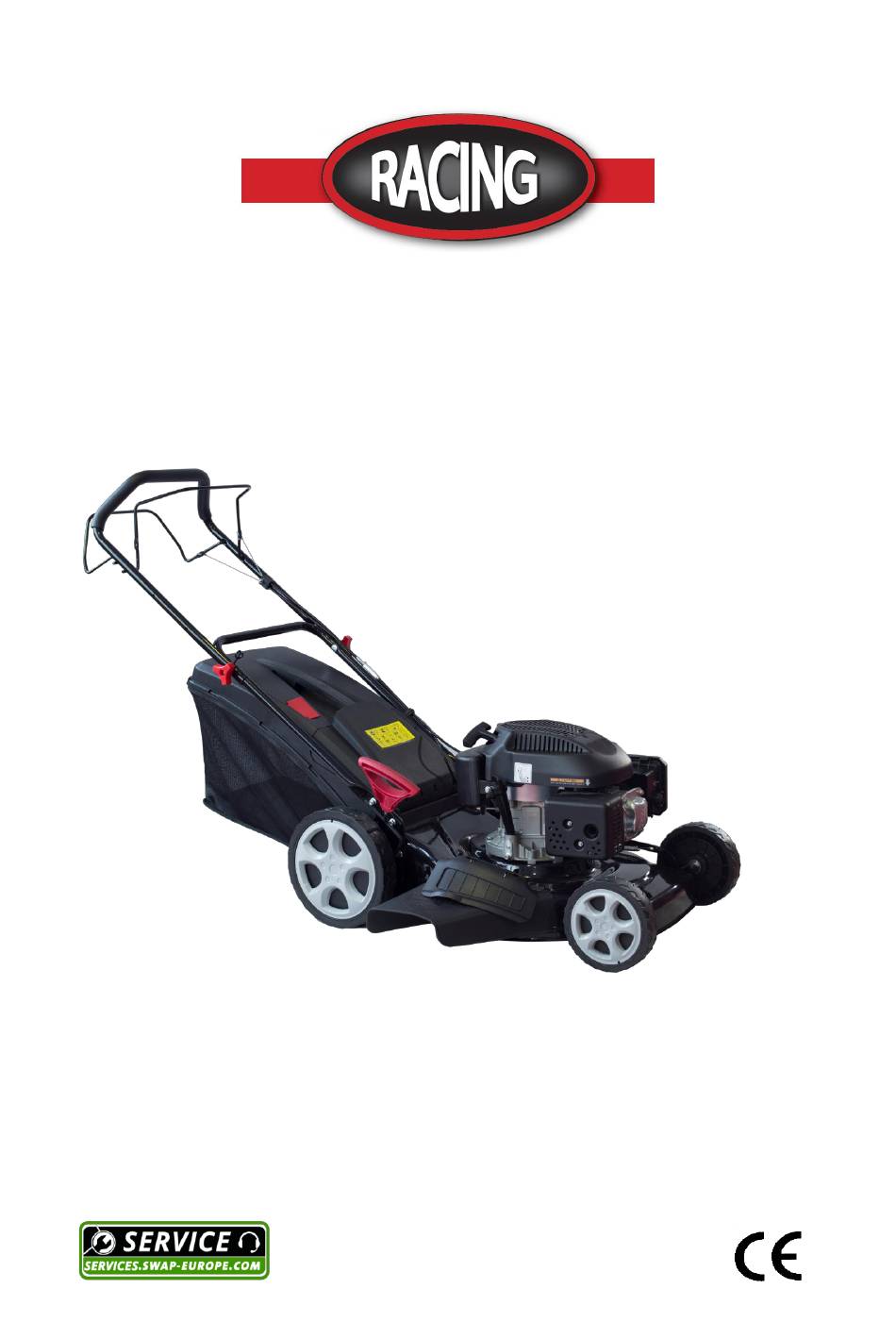

ORIGINAL INSTRUCTIONS
GASOLINE LAWNMOWER
RAC5096-AC-1
Instruction manual
WARNING: READ THE INSTRUCTIONS BEFORE USE THE TOOL
RACING
32, rue Aristide Bergès - ZI 31270 Cugnaux – France
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the RAC5096-AC-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Racing RAC5096-AC-1

Summary of Contents for Racing RAC5096-AC-1

  • Page 1 ORIGINAL INSTRUCTIONS GASOLINE LAWNMOWER RAC5096-AC-1 Instruction manual WARNING: READ THE INSTRUCTIONS BEFORE USE THE TOOL RACING 32, rue Aristide Bergès - ZI 31270 Cugnaux – France...

  • Page 2: Table Of Contents

    CONTENTS 1. SAFETY INSTRUCTIONS 2. YOUR PRODUCT 3. ASSEMBLY 4. FILLING FUEL TANK 5. USE 6. MAINTENANCE AND STORAGE 7. EC DECLARATION...

  • Page 3: Safety Instructions

    1. SAFETY INSTRUCTIONS Instructions • Read the instructions carefully. Be familiar with the controls and proper use of the equipment. • Never allow children to use this mower. If the mower is given to an other people, also give this manual. Also make sure that this person uses this device only after receiving the necessary instructions.
  • Page 4 • Never take or carry the mower while the machine is running. • Stop the machine and remove the ignition key, disconnect the spark plug from the spark plug: Before cleaning or unclogging the grass extractor. Before checking, cleaning, and working on the mower. After hitting an object.
  • Page 5 • Regularly check that the bolts, nuts and screws are properly tightened for safe use of the mower. • Do not use the tool where there is a risk of lighting. Fuel Handling Use caution when handling fuels. They are flammable and the vapors are explosive. Use only an approved container.

  • Page 6: Your Product

    Read the instructions Watch out for projections! Keep viewers away from work area Danger! Keep your hands and feet away from the cutting element Do not use the tool under rain. Blades continue to rotate after the engine stops Wear protective equipment. Wear eye and hearing protection when using the tool Guarantee sound power level 2.

  • Page 7: Assembly

    11. Starter rope Fuel tank 12. Lower bar Engine 13. Flap of the lateral discharge Air filter 14. Lateral discharge b. Technical data Model RAC5096-AC-1 Nominal power 3.2kW Displacement 196cm³ Max engine speed 2800/min Cutting width 502mm Volume of the collection bag...
  • Page 8 a. Handles/bar Install the lower handle (2) on the machine and screw it with the provided screws and nuts. Combine the upper handle (1) and the lower handle (2). Place the hook (3) on the right side of the handle. Screw the handle with the two nut knobs and their screws. b.

  • Page 9: Filling Fuel Tank

    - Hold the flap and place the side discharge. NOTE: Before installing the side discharge, remove the grass catcher. Both You must fit the mulching adapter in order to use the side ejector. Hook in the side ejector adapter. e. Back discharge If need to use the back discharge function, screw out the bolt about 40mm.

  • Page 10: Use

    are not identical. If startup or performance problems occur, change supplier or fuel brand. Fuel must meet the following criteria: Clean, new and lead-free gasoline. A minimum octane rating of 87/87 AKI (91 RON). For use at high altitudes, see below A gasoline containing up to 10% ethanol is acceptable.
  • Page 11 • Stand behind the handlebars. Move the operator control lever positioned in front of the handlebars rearwards so that the lever is resting against the handlebars. Take hold of the starter handle firmly with the other hand. Pull back the starter until you feel resistance and then pull the handle firmly and briskly to turn the engine Repeat the above procedure as necessary until the engine starts.

  • Page 12: Maintenance And Storage

    6. MAINTENANCE AND STORAGE Before working on the cutting system of the machine, switch off the engine and remove the spark plug’s cap. a. Cleaning the mower Cut grass is damp. Regular cleaning after each use will ensure better functioning of the mower and reduce the risk of corrosion or seizure.
  • Page 13 Storing the mower beneath a tarpaulin or similar cover is not recommended as it may cause a build‐up of condensation resulting in corrosion of the mower. Extended shutdown and winter storage Thoroughly clean the mower. Ideally, run the engine outdoors until the fuel tank is empty. Alternatively, empty any remaining fuel using a fuel suction pump.
  • Page 14 Tighten the screws connecting all of the components. Make a final visual check that all parts are present and aligned before tightening the fixing bolt very firmly with a wrench while holding the blade firmly in one hand (NB wear suitable gloves). Spark plug Check the spark plug initially after the first five hours of mower use.
  • Page 15 32, rue Aristide Bergès -Z1 31270 Cugnaux - France Tel. +33 (0) 5.34.502.502 Fax: +33 (0) 5.34.502.503 Declares that the machine named below GASOLINE LAWNMOWER RAC5096-AC-1 Serial number: 20180622186-20180623585 Complies with the following European Directives: Machinery Directive 2006/42/EC EMC Directive 2014/30/EU...
