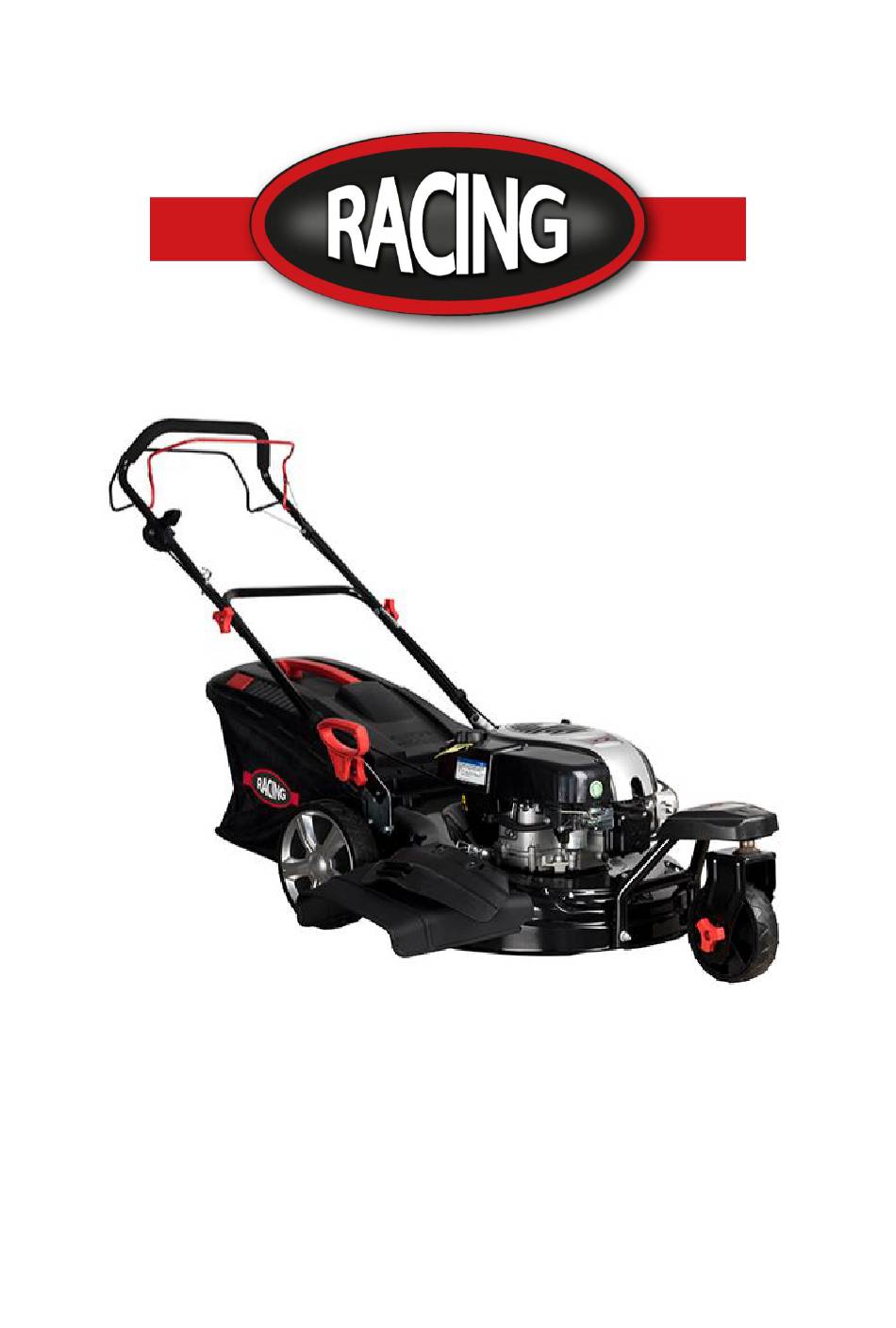

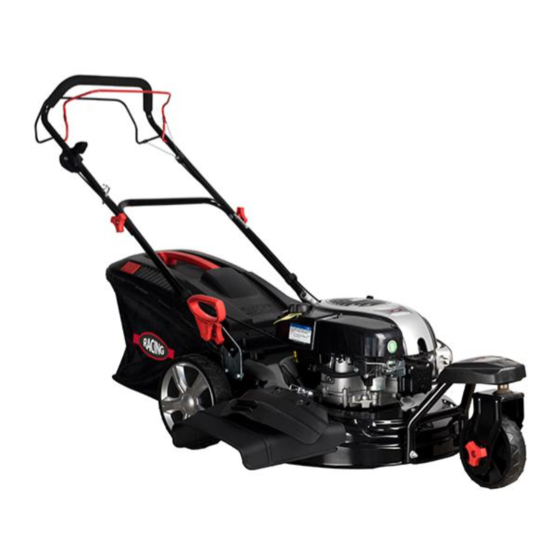

- Page 1 ORIGINAL INSTRUCTIONS=>EN PETROL LAWN MOWER RAC511BSRP-A USER GUIDE CAUTION: Read the instructions before using the machine!
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS...............3 2. YOUR PRODUCT..................7 3. ASSEMBLY.....................11 4. FILLING FUEL TANK................13 5. OPERATION...................14 6. MAINTENANCE AND STORAGE............16 7. DECLARATION OF CONFORMITY............19 8. WARRANTY...................20 9. PRODUCT FAILURE................21 10. WARRANTY EXCLUSIONS..............22... -
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS Instructions Read the instructions carefully. Be familiar with the controls and proper use of the equipment. Never allow children to use this mower. If the mower is given to another people, also give this manual. Also make sure that this person uses this device only after receiving the necessary instructions. - Page 4 Do not place hands or feet near or under rotating parts. Keep clean the mouth of the grass extractor. Never take or carry the mower while the machine is running. Stop the machine and remove the ignition key, disconnect the spark plug from the spark plug: o Before cleaning or unclogging the grass extractor.
- Page 5 After striking a foreign object, turn off the engine and carefully inspect the mower for damage. Take the lawnmower to an authorized service center for repair if necessary. If the mower vibrates abnormally, try to understand the reason and bring your lawnmower to an ...
- Page 6 Symbols Read the instructions Watch out for projections! Keep viewers away from work area Danger! Keep your hands and feet away from the cutting element Toxic fumes; don’t operate inside house. Fuel is flammable, keep fire away. Do not add fuel with running machine. Caution –...
-
Page 7: Your Product
2. YOUR PRODUCT 2.1 PRODUCT DESCRIPION 1) Engine control level 2) Self-propelled level 3) Superior handle 4) Inferior handle 5) Engine 6) Steel Deck 7) Grass catcher 8) Front single wheel 2.2 FUNCTION (4 IN 1) DESCRIPTION Fig A Fig B... - Page 8 1) Rear discharge with grass collection: Take out the Mulcher Guard and place the grass catcher at its place. 2) Side discharge: Remove the mulch kit. Install the side discharge device as explained below. NOTE: Do not install the grass catcher. Open the side discharge cover need two steps：...
- Page 9 c) After open, you can insert the side discharge plug. 3) Mulching: Remove the grass catcher, then install the mulch kit. Close the flap. 4) Rear discharge without grass collection: Remove the mulch kit and close the flap.
-
Page 10: Technical Data
2.3 TECHNICAL DATA Model RAC511BSRP-A Nominal power 2.68kW Displacement 161cm³ Max engine speed 2800/min Drive type Self-propelled Cutting width 53cm Volume of the collection bag 60/62 L Weight 35.5 kg Fuel tank capacity 1000 ml Oil tank capacity 600 ml... -
Page 11: Assembly
3. ASSEMBLY 3.1 ASSEMBLY OF FRONT SINGLE WHEEL Unscrew the 4 screws and bolts on the mower frame. Place the wheel on the frame, then secure it with the 4 screws and bolts. 3.2 ASSEMBLY OF GRASS BAG 1) Take the grass catcher as Fig C 2) Pull up the deflector and place the grass catcher at its place. -
Page 12: Cutting Height Ajustments
3.3 ASSEMBLY OF THE HANDLE Open the lower handle. Screw the handle with the two screws and plastic nuts provided to secure it to the mower. Install the upper handle on the lower handle. Secure it with the two screws and nuts provided. You can secure the cables to the handle with the tabs provided. -
Page 13: Filling Fuel Tank
4. FILLING FUEL TANK WARNING! Gasoline is extremely flammable. Store fuel in specially designed cans for this purpose. Fill the fuel tank only outdoors and before starting the engine. Do not smoke when filling the fuel tank or handling fuel. Never open the fuel tank cap and never add fuel while the engine is running or when it is hot. -
Page 14: Operation
5. OPERATION 5.1 SAFETY PRECAUTIONS a) Always use the lawnmower with the grass catcher or/ and the deflector in position. b) Stop the engine before emptying the grass catcher or before you change the cutting height. c) While the engine is running, never introduce your hands or feet under the lawnmower or under the grass ejection area. - Page 15 COLD STARTING Pull the engine control lever until it touches the top handle. Pull the starter rope until the engine starts. HOT START a) Pull the motor control lever until it touches the upper handle. b) Pull the starter rope until the engine starts. STOP c) Release the lever.
-
Page 16: Maintenance And Storage
6. MAINTENANCE AND STORAGE Before working on the cutting system of the machine, switch off the engine and remove the spark plug’s cap. WARNING - Improper maintenance, use of nonconforming replacement components, or the removal or modification of safety components can cause accidents and the deterioration of the tool. a. - Page 17 Storing the mower beneath a tarpaulin or similar cover is not recommended as it may cause a build‐up of condensation resulting in corrosion of the mower. Extended shutdown and winter storage Thoroughly clean the mower. Ideally, run the engine outdoors until the fuel tank is empty. Alternatively, empty any remaining fuel using a fuel suction pump.
- Page 18 traces of grease and dust. Rinse the filter cartridge in clean water and then squeeze gently to remove most of the water. Let it air dry until it is completely dry. WARNING: Never clean the foam cartridge in petrol, white spirit or other solvents. These products will degrade the filter cartridge.
-
Page 19: Declaration Of Conformity
32, rue Aristide Bergès -Z1 31270 Cugnaux - France Tel. +33 (0) 5.34.502.502 Fax: +33 (0) 5.34.502.503 Declares that the machine named below Petrol lawn mower RAC511BSRP-A Serial number: 20211183020- 20211184369 Complies with the following European Directives: Machinery Directive 2006/42/EC... -
Page 20: Warranty
8. WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 21: Product Failure
9. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: • Empty the fuel tank. • Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 22: Warranty Exclusions
10. WARRANTY EXCLUSIONS • Loss of components and loss due to insufficient screwing. • Cutting components and any damage related to the loosening of parts. • Overload or overheating. • Poor power supply quality: faulty voltage, voltage error, etc. • Damages resulting from the deprivation of enjoyment of the product during the time necessary for repairs and more generally the costs related to the immobilization of the product. - Page 23 BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France Made in PRC 2021...
