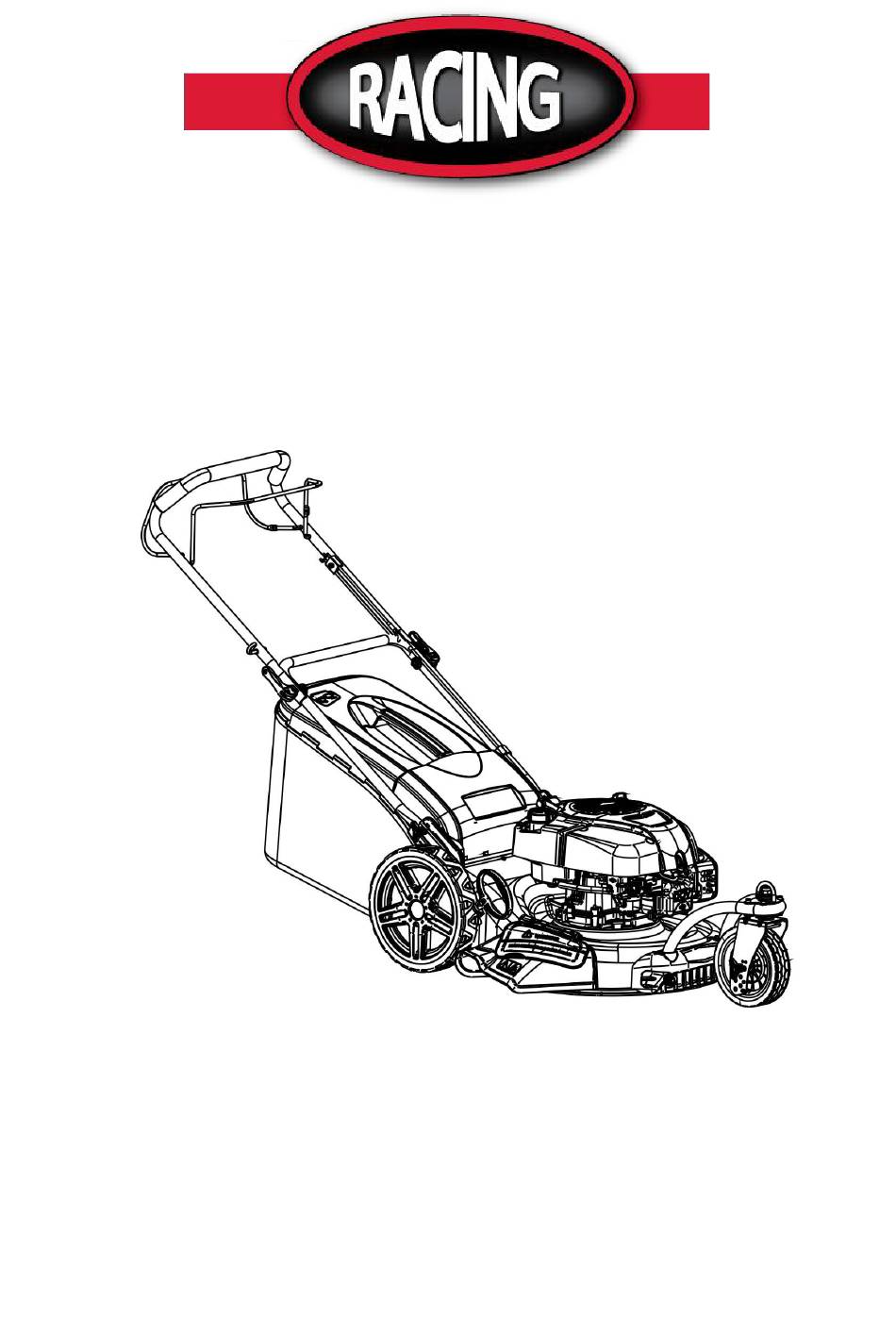

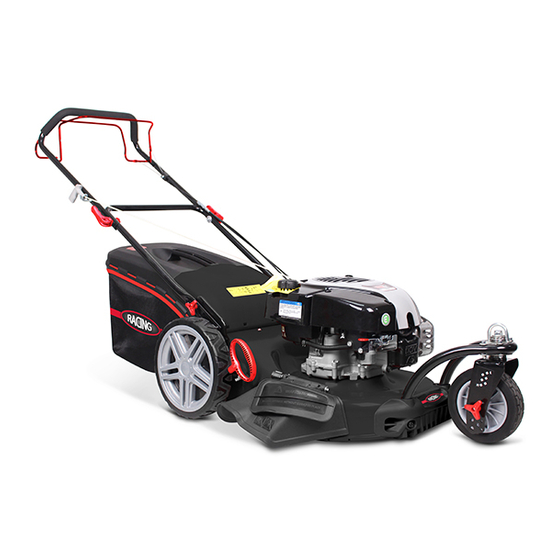

- Page 1 PETROL LAWN MOWER RAC511BSRP-1 ORIGINAL INSTRUCTION MANUAL WARNING: Read and understand all instructions before use. BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux - France MADE IN PRC...
-
Page 2: Safety Instructions
1. SAFETY INSTRUCTIONS Instructions Read the instructions carefully. Be familiar with the controls and proper use of the equipment. Never allow children to use this mower. If the mower is given to an other people, also give this manual. Also make sure that this person uses this device only after receiving the necessary instructions. - Page 3 Do not tilt the mower when starting the machine or turn on the engine, unless the mower needs to be tilted for starting. In this case, do not tilt it more than absolutely necessary and lift only the part that is furthest away from the user. Do not start the machine by standing in front of the ejection ...
- Page 4 Never lift the rear of the mower when starting the engine and never place your hands or feet under the mower deck or in the rear ejection port while the engine is running. Turn off the engine and remove the spark plug cap in the following cases: o Before operating under the mower deck or near the ejection opening.
- Page 5 Residual risks Even if you use this product in compliance with all safety requirements, the potential risks of injury and damage remain. The following hazards may arise in the structure and design of this product: There are risks of injury and property damage due to attachments or broken the sudden impact of hidden objects when using cutting.
- Page 6 Cutting diameter Danger! Keep your hands and feet away. Guaranteed sound power level Stop the device: release the security bar Driving wheels on: pull the training bar Fuel filling Warning! Check the oil level before starting. Oil filling Warning symbol Forbidden symbol Information symbol...
- Page 10 2. YOUR PRODUCT 1） Description (figure 1 upper handlebar 2 Self-propeller bars 3 Operator control lever 4 star rope 5 lower bars 6 flap 7 fuel tank 8 grass catcher 9 oil tank 10 rear wheel 11 air filter (not visible) 12 Side discharge with flap 13 front wheel 14 cutting height adjustment lever...
- Page 11 3. ASSEMBLY a. Front wheel (figure From the rear, insert the screws through the recesses (the longer screws must penetrate the lower hole) and immobilize the front wheel linkage with the nuts Secure the cowling against the lower protruding lower screws. b.
- Page 12 c. Bars assembly ( figure Fasten the lower handlebar (4) with the fixing screws of the latter and with the wing nuts. To determine the desired inclination, choose one of the two possible screw positions. Fold down the upper handlebar (1) (small image) and press the lock lever (20) in the direction of the bar.
-
Page 13: Oil Filling
4. OIL AND FUEL FILLING a. Oil filling Unscrew the oil tank cap with dipstick and pour oil into the tank. The oil tank has a capacity of 500 ml. Use a brand name oil (SAE 30 for example). To check the oil level, wipe the dipstick with a clean cloth and put it back into the tank. Read the oil level on the dipstick after pulling it out. -
Page 14: Work Instructions
safety lever a little until the self-propelled mechanism disengages. Pull the safety lever back towards the handle and continue to mow without the self-propelled mechanism. Work instructions Mow dry grass as much as possible to save grass. Adjust the cutting height so that the machine is not overworked. Drive the machine at moderate speed (walking) along the belt as straight as possible. - Page 15 (fig. O) c. Spark plug Worn spark plugs or an excessive ignition interval lead to a decrease in engine performance. Remove the spark plug by pulling and rotating the spark plug at the same time. Screw the spark plug counter clockwise with the spark plug wrench provided with the appliance.
- Page 16 To remove the blade, loosen the screw, check the blade bracket, and replace all parts if they are worn or damaged. To sharpen the blade, place it in a clamp and file the sharp edges evenly, checking the balance of the blade. When reassembling the blade, make sure that the cutting edges are in the same direction as the direction of rotation of the motor.
-
Page 17: Declaration Of Conformity
32, rue Aristide Bergès -Z1 31270 Cugnaux - France Tel. +33 (0) 5.34.502.502 Fax: +33 (0) 5.34.502.503 Declares that the machine named below PETROL LAWN MOWER RAC511BSRP-1 Serial number: 20201132222-20201132531 Complies with the following European Directives: Machinery Directive 2006/42/EC EMC Directive 2014/30/EU... -
Page 18: Warranty
10. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 19: Product Failure
11. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 20: Warranty Exclusions
12. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
