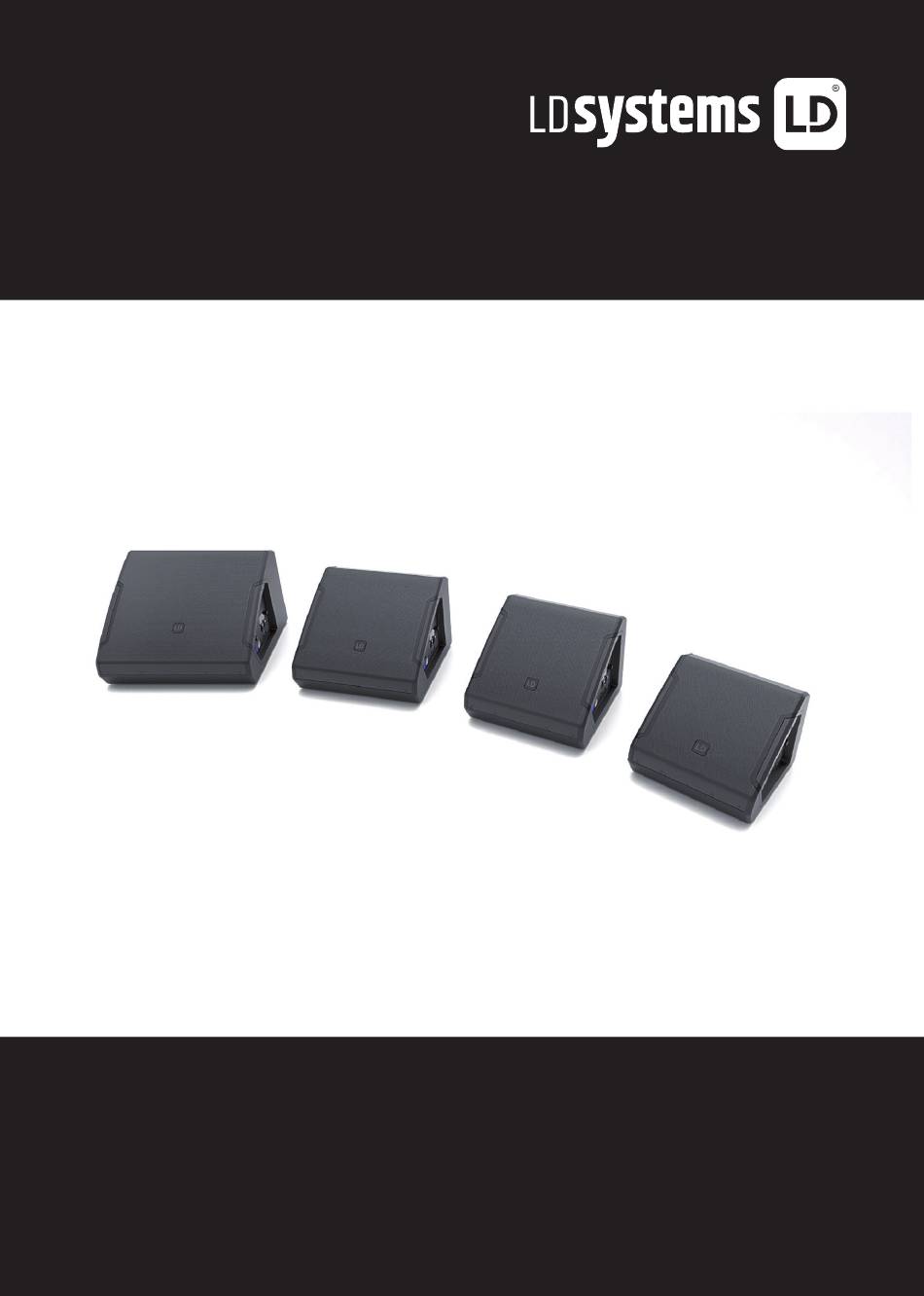

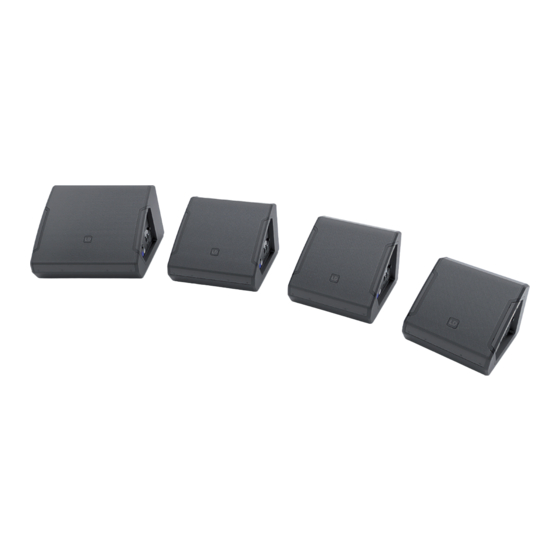

- Page 1 USER'S MANUAL ENGLISH MON G3 SERIES POWERD COAXIAL STAGE MONITOR LDMON8AG3 / LDMON10AG3 / LDMON12AG3 / LDMON15AG3...
-
Page 2: Table Of Contents
CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TREŚĆ / CONTENUTO ENGLISH ABOUT THIS MANUAL INTENDED USE DEFINITIONS AND SYMBOL EXPLANATIONS SAFETY INSTRUCTIONS PACKAGING CONTENT INTRODUCTION ASSEMBLY DEVICE COMPONENTS WIRING EXAMPLES CONNECTIONS, OPERATING AND DISPLAY ELEMENTS OPERATION CARE, MAINTENANCE AND REPAIR OPTIONAL ACCESSORIES DIMENSIONS TECHNICAL DATA... -
Page 3: About This Manual
This device has been developed and manufactured to the highest quality standards to ensure many years of problem-free operation. This is what LD Systems stands for with its name and many years of experience as a manufacturer of high-quality audio products. Please read these operating instructions carefully so that you can quickly get the most out of your new LD Systems product. -
Page 4: Safety Instructions
This symbol indicates hazards caused by hot surfaces. This symbol indicates dangers due to high volume levels. This symbol indicates additional information on the operation of the product. This symbol denotes a device that does not contain any user-serviceable parts. This symbol indicates electrical equipment designed primarily for indoor use. - Page 5 ATTENTION: 1. Do not operate the unit if it has been exposed to large temperature fluctuations (for example, after transport). Moisture and condensation can damage the device. Switch on the device only when it has reached room temperature. 2. Make sure that the voltage and frequency of the mains supply correspond to the values indicated on the unit.
-
Page 6: Packaging Content
ATTENTION: 1. Do not install or use the device in the vicinity of radiators, accumulators, stoves, or other heat sources. Ensure that the device is always installed in such a way that it is sufficiently cooled and cannot overheat. 2. Do not place ignition sources such as burning candles near the device. 3. -
Page 7: Introduction
This thought guided our developers as they completely reimagined the concept of our MON stage monitor series to create the perfect package. A harmonious blend of advanced acoustics, clever features, intuitive operation, durable materials and the elegant LD Systems design propels the new MON G3 Series one step beyond. -
Page 8: Assembly
MON 12 A G3 • Compact high-performance stage monitor with top-of-the-range technologies • Class-D power amplifier with 300 W RMS/1200 W peak and 127 dB max. SPL • Coaxial design for true point source with a 1.75“ titanium-diaphragm HF driver •... -
Page 9: Device Components
DEVICE COMPONENTS RECESSED GRIP One ergonomically shaped recessed grip each is located on the left and right below the front grille. STAND FLANGE A 35 mm flange is located on the left side of the housing. Only use suitable speaker stands! RUBBER FEET Four non-slip rubber feet are located on the underside of the cabinet. -
Page 10: Wiring Examples
AUX SEND (pre fader) WIRING EXAMPLES AUX SEND (pre fader) INPUT OUTPUT AUX SEND (pre fader) OUTPUT INPUT AUX SEND (pre fader) -
Page 11: Connections, Operating And Display Elements
CONNECTIONS, OPERATING AND DISPLAY ELEMENTS The connection and control panels of the MON 8 A G3 to MON 15 A G3 active monitors are identical and are located on the right-hand side of the corresponding enclosure. POWER IN Blue Power Twist mains input socket for the power supply of the active monitor (PowerCON compatible). A suitable power cable is included. -
Page 12: Operation
OPERATION NOTES As soon as the monitor is correctly connected to the mains and switched on, the LD Systems logo appears on the display for a short time. All settings, such as preset, EQ and delay are loaded as they were before the monitor was switched off. - Page 13 AUDIO SETTINGS (AUDIO) Press the rotary-push encoder to enter the main menu and then select the AUDIO menu item by turning the encoder (dark background). Press the encoder again to enter the sub-menu and select the desired sub-menu item by turning the encoder. Confirm your entry by pressing the encoder. Change a value or status by turning the encoder, confirm the value or status change by pressing the encoder.
-
Page 14: Care, Maintenance And Repair
SYSTEM SETTINGS (SETTINGS) Press the rotary-push encoder to enter the main menu and then select the SETTINGS menu item by turning the encoder (dark background). Press the encoder again to enter the sub-menu and select the desired sub-menu item by turning the encoder. Confirm your entry by pressing the encoder. Change a value or status by turning the encoder, confirm the value or status change by pressing the encoder. -
Page 15: Optional Accessories
CARE (CARRIED OUT BY USER) WARNING! Before carrying out any maintenance work the power supply and if possible all device connections must be unplugged. NOTE! Improper care can lead to impairment or even destruction of the unit. 1. Housing surfaces must be cleaned with a clean, damp cloth. Make sure that no moisture can penetrate the device. -
Page 16: Dimensions
DIMENSIONS MON 8 A G3 MON 10 A G3 MON 12 A G3 MON 15 A G3... -
Page 17: Technical Data
TECHNICAL DATA Item number LDMON8AG3 LDMON10AG3 LDMON12AG3 LDMON15AG3 Product type Stage monitor Stage monitor Stage monitor Stage monitor Type Powered Powered Powered Powered Color Black Black Black Black System output (RMS) 300 W 300 W 300 W 300 W System output (Peak) 1200 W 1200 W 1200 W... - Page 18 Item number LDMON8AG3 LDMON10AG3 LDMON12AG3 LDMON15AG3 Horn CD Horn CD Horn CD Horn CD Horn Tweeter dimensions 1" 1" 1" 1" Tweeter dimensions 25.4 mm 25.4 mm 25.4 mm 25.4 mm (mm) Tweeter magnet Ferrite Ferrite Ferrite Ferrite Tweeter brand Custom-made Custom-made Custom-made...
-
Page 19: Disposal
DISPOSAL Packaging: 1. Packaging can be fed into the reusable material cycle using the usual disposal methods. 2. Please separate the packaging in accordance with the disposal laws and recycling regulations in your country. Device: 1. This device is subject to the European Directive on Waste Electrical and Electronic Equipment, as amended. - Page 20 CE CONFORMITY Adam Hall GmbH hereby confirm that this product meets the following guidelines (where applicable): R&TTE (1999/5/EC) or RED (2014/53/EU) from June 2017 Low-Voltage Directive (2014/35/EU) EMC Directive (2014/30/EU) RoHS (2011/65/EU) The full declaration of conformity can be found at: www.adamhall.com. You can also request it via info@adamhall.com.
- Page 21 This page has been intentionally left blank...
- Page 22 LD-SYSTEMS.COM Adam Hall GmbH | Adam-Hall-Str. 1 | 61267 Neu-Anspach | Germany Phone: +49 6081 9419-0 | adamhall.com Adam Hall Ltd. | The Seedbed Business Centre | SS3 9QY Essex | UK REV: 01...
