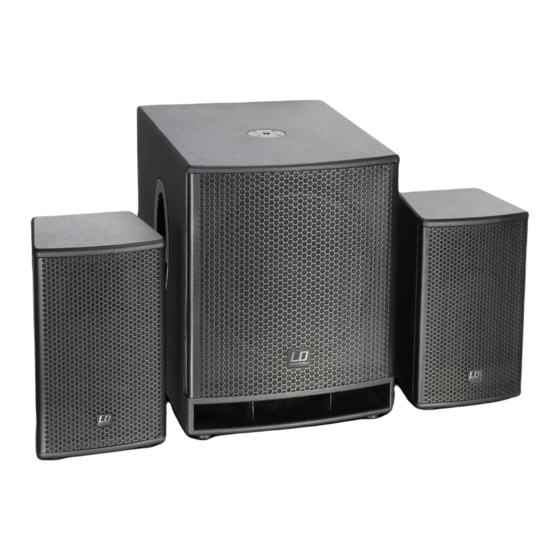

  • Page 1 USER´S MANUAL BEDIENUNGSANLEITUNG MANUEL D`UTILISATION MANUAL DE USUARIO INSTRUKCJA OBSŁUGI MANUALE D‘ USO LD DAVE G³ SERIES ACTIVE 2.1 DSP BASED PA SYSTEM LDDAVE18G3...
  • Page 2 You‘ve made the right choice! We have designed this product to operate reliably over many years. LD Systems stands for this with its name and many years of experience as a manufacturer of high-quality audio products. Please read this User‘s Manual carefully, so that you can begin making optimum use of your LD Systems product quickly.

  • Page 4: Preventive Measures

    PREVENTIVE MEASURES: 1. Please read these instructions carefully. 2. Keep all information and instructions in a safe place. 3. Follow the instructions. 4. Observe all safety warnings. Never remove safety warnings or other information from the equipment. 5. Use the equipment only in the intended manner and for the intended purpose. 6.
  • Page 5 SAFETY: to clean the equipment. Always unplug the power cord and power adapter from the power outlet at the plug or adapter and not by pulling on the cord. Never touch the power cord and power adapter with wet hands. 27.

  • Page 6: Connections, Controls, And Indicators

    CONNECTIONS, CONTROLS, AND INDICATORS: LINE INPUT LEFT / RIGHT Unbalanced line input (left / right) with 2 RCA jacks. LINE INPUT LEFT / RIGHT Balanced line input with 2 XLR / 6.3 mm jack (combo jack). LINE OUTPUT LEFT / RIGHT Balanced line output with 2 male XLR connectors.

  • Page 7: Main Level

    SUB LEVEL controller. SAT POWER OUT LEFT / RIGHT Speakon compatible outputs (left / right) for the satellite speakers of the LD DAVE18G3 system. IEC VOLEX POWER SOCKET WITH INTEGRAL FUSE HOLDER Used to power the device. An appropriate power cord is included in the delivery. To unlock, please press the spring-loaded button on the connector.

  • Page 8: Connecting The Satellite Speakers

    CONNECTING THE SATELLITE SPEAKERS: The satellite speakers of the LD DAVE18G3 system each have a Speakon compatible speaker connection. Establish the connection between the subwoofer (SAT POWER OUT LEFT / RIGHT) and the satellites using a suitable cable (2-wire speaker cable, min. 2 x 1.5 mm², with Speakon compatible connectors.) Allocation: 1+ / 1-).
  • Page 9 SPEAKER FLANGE WITH VARIABLE TILT ANGLE: The satellites of the LD DAVE18G3 system are equipped with the patented SM707 speaker flange with variable tilt angle (0°, +/- 4.5°, +/- 9°, +/- 13.5°). To change the tilt angle, please follow these steps: Mount the speaker on a suitable speaker stand, as usual.
  • Page 10 LD SYSTEMS LECC DSP: WHAT DOES LD SYSTEMS LECC DSP STAND FOR? DSP stands for Digital Signal Processing (Digital Signal Processing), LECC for limiter, EQ, Compressor and Crossover. The digital signal processing ensures maximum audio performance with maximum clarity and protects the PA system from overload.
