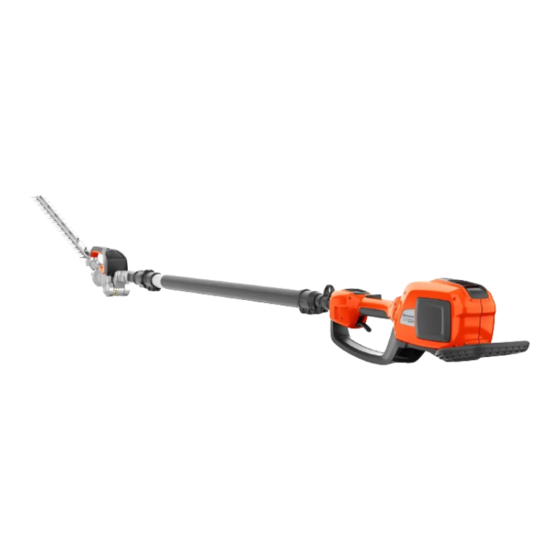

Husqvarna 520iHT4 Operator's Manual

Hide thumbs Also See for 520iHT4:
Table of Contents

Advertisement

Quick Links

Download this manual
520iHT4
EN
Operator's manual
2-20

Advertisement

Table of Contents
loading

Related Manuals for Husqvarna 520iHT4

Summary of Contents for Husqvarna 520iHT4

  • Page 1 520iHT4 Operator's manual 2-20...

  • Page 2: Table Of Contents

    Troubleshooting............15 Introduction Product description Intended use Husqvarna 520iHT4 is a battery telescopic pole hedge Use the product to cut branches and twigs. Do not use trimmer. the product for other tasks. Work is constantly in progress to increase your safety and efficiency during operation.
  • Page 3 Overview 1. Blade 14. Warning indicator 2. Transport guard 15. Rear handle 3. Handle 16. Impact guard 4. Gearbox 17. Harness 5. Position adjustment handle 18. Battery indicator button 6. Telescopic function 19. Battery status 7. Shaft 20. Battery 8. Harness support hook 21.
  • Page 4 Symbols on the product This product does not have insulation. If the product touches or comes near WARNING! This product is dangerous. high-voltage power lines, it can cause Injury or death can occur to the operator death or bad injury. The current can or bystanders if the product is not jump from one point to other points by used carefully and correctly.

  • Page 5: Safety

    • the product is incorrectly repaired. • the product has an accessory that is not from the manufacturer or not approved by the manufacturer. • the product is repaired with parts that are not from the manufacturer or not approved by the •...
  • Page 6 connected and properly used. Use of dust collection of battery pack may create a risk of fire when used can reduce dust-related hazards. with another battery pack. • Do not let familiarity gained from frequent use of • Use power tools only with specifically designated tools allow you to become complacent and ignore battery packs.
  • Page 7 power tool ” live” and could give the operator an • Never use the product if you are fatigued, while electric shock. under the influence of alcohol or drugs, medication or anything that could affect your vision, alertness, • Keep cable away from cutting area. During operation coordination or judgment.
  • Page 8 This field may under some a combination of noise level and long usage. circumstances interfere with active or passive Husqvarna recommends that operators use hearing medical implants. To reduce the risk of serious or protectors when using products for a longer coherent fatal injury, we recommend persons with medical time of a day.
  • Page 9 • Keep first aid equipment close at hand. a) The product is switched on when the LED (2) is lit. b) The product is switched off when the LED (2) is out. 2. See Keypad on page 15 if the warning indicator (3) is lit or flashes.
  • Page 10 Use the BLi200 battery that is rechargable as a • Only charge the battery indoors in a location with power supply for the related Husqvarna products good airflow and away from sunlight. Do not charge only. To prevent injury, do not use the battery as a the battery outdoors.

  • Page 11: Operation

    Safety instructions for maintenance • Special training is necessary for all servicing and repair work, especially for the safety devices on the product. If not all checks in this operator's manual WARNING: Read the warning are approved after you have done maintenance, turn instructions that follow before you do to your servicing dealer.
  • Page 12 To connect the battery to the product 2. Push the power trigger to adjust the speed. WARNING: Only use Husqvarna To operate the product original batteries with the product. • Start near the ground and move the product up 1.
  • Page 13 2. Pull down the position adjustment handle. 3. Tighten the knob. To use the SavE function 3. Tilt the cutting attachment with the handle to the This product has a power saving function, SavE. The applicable position. SavE function decreases the speed of the cutting equipment and gives the longest operation time from the battery.

  • Page 14: Maintenance

    To stop the product 3. Push the release buttons on the battery and pull the battery out. 1. Release the power trigger. 2. Push the start/stop button until the green LED goes out. Maintenance Introduction Maintenance schedule WARNING: Read and understand the WARNING: Remove the battery before safety chapter before you do maintenance...

  • Page 15: Troubleshooting

    Maintenance Before Weekly Monthly Do a check of the connections between the battery and the product. Do a check of the connection between the battery and the battery charger. To examine the battery and the battery To clean and lubricate the cutter blade charger 1.

  • Page 16: Transportation, Storage And Disposal

    Battery Problem Possible faults Possible solution Green LED flashes. Low battery voltage. Charge the battery. Red error LED flashes. The battery is empty. Charge the battery. Temperature deviation. Use the battery in temperatures between -10°C (14°F) and 40°C (104°F). Overvoltage. Remove the battery from the battery charger.

  • Page 17: Technical Data

    The symbol shows on the product or package of the product. Speak to local authorities, domestic waste service or your dealer for more information. Technical data Technical data 520iHT4 Motor Motor type BLDC (brushless) 36 V Weight Weight without battery, kg...

  • Page 18: Accessories

    Nominal voltage, V Weight, kg Approved battery chargers Battery charger QC330 Input voltage, V 100-240 Frequency, Hz 50-60 Power, W The Husqvarna Handheld Battery products marked with IPX4 fulfils these requirements on product approval level 1266 - 003 - 23.09.2022...

  • Page 19: Ec Declaration Of Conformity

    EC Declaration of Conformity EC Declaration of Conformity We, Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel: +46-36-146500, declare on our sole responsibility that the product: Description Battery-operated Pole Hedge Trimmer Husqvarna Brand Type / Model 520iHT4 Identification Serial numbers dating from 2022 and onwards...
  • Page 20 Declaration of Conformity We, Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel: +46-36-146500, declare on our sole responsibility that the product: Description Battery-operated Pole Hedge Trimmer Husqvarna Brand Type / Model 520iHT4 Identification Serial numbers dating from 2022 and onwards complies fully with the following EU directives and...
  • Page 21 1266 - 003 - 23.09.2022...
  • Page 22 1266 - 003 - 23.09.2022...
  • Page 23 1266 - 003 - 23.09.2022...
  • Page 24 Original instructions 1143239-26 2022-10-03...
