BEGA 98 019 Installation And Technical Information

BEGA
Installation and Technical Information

Tools Required:

• 5mm Hex key
• 6mm Hex key
• 8mm Hex key

Overview:

LED Watts: 35.7 W
System Watts: 39.7 W
Controllability:
0-10V, TRIAC, and ELV dimming to 1%
Weight: 33.0 lbs.
Protection Class: IP65

Notice to Installer:

1. Do not open luminaire.
2. For pole top applications only.
3. Slip fits 3" O.D. pole top or tenon.
4. Luminaire requires at least 3-1/2" of straight diameter pole or tenon.
5. LEDs are high-quality electronic components! Please avoid touching diode of LED
module when installing.

Pole top reflector assembly:

1. Loosen the (2) 8mm hex screws at the top of the support rods and remove
screws and fixing plates.
2. Attach the reflector disk to the support rods by positioning the joint shells over the
joint bearings. Make sure the drip edges are oriented downwards.
3. Replace the fixing plates and screws.
4. Tilt the reflector to the desired orientation (0-30 degrees).
5. Tighten the (2) 8mm hex screws to secure in place.

98 019 Installation:

1. Route luminaire wiring down to base of pole.
2. Make supply wiring connections:
MAIN VOLTAGE SUPPLY WIRE TO BLACK WIRE
NEUTRAL (COMMON) SUPPLY WIRE TO WHITE WIRE
GREEN GROUND SUPPLY WIRE TO GREEN WIRE
Dimming (if applicable):
DIMMING CONTROL SUPPLY WIRE (+) TO POSITIVE DRIVER DIM
CONTROL WIRE
DIMMING CONTROL SUPPLY WIRE (-) TO NEGATIVE DRIVER DIM
CONTROL WIRE
4. Slip luminaire over the top of the pole.
5. Tighten the (6) 5mm set screws evenly to secure to pole.

Accessories

Please refer to the appropriate accessory installation
sheet for further instruction when applicable.
BEGA 1000 Bega Way, Carpinteria, CA 93013 (805)684-0533 © copyright BEGA 2021
Due to the dynamic nature of lighting products and the associated technologies, luminaire data on this sheet is subject to change at the discretion of BEGA North America. For the most current technical data, please refer to bega-us.com

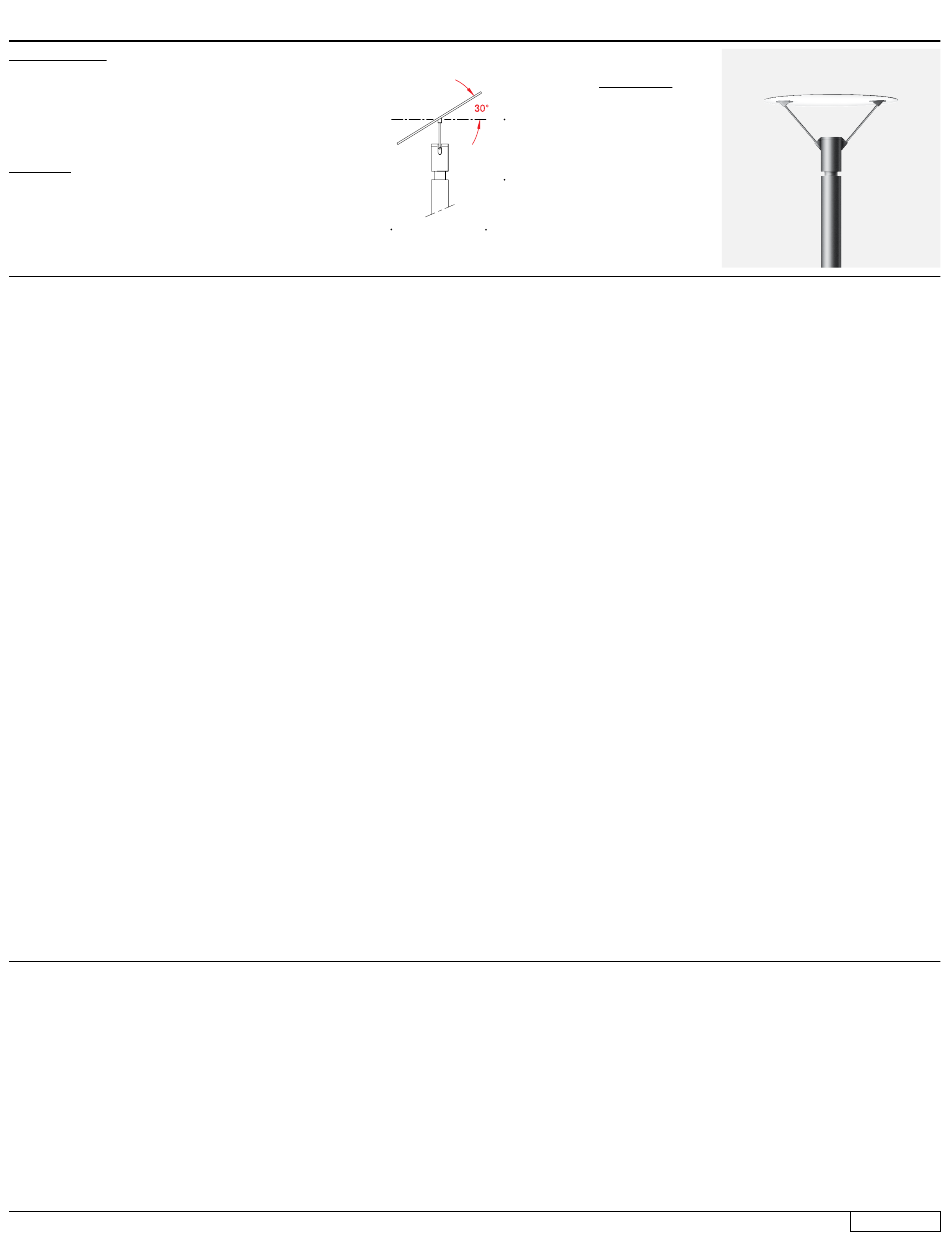

Indirect pole-top luminaire - Adjustable with cut-off optics
B
A

Dimensions

A: 31-1/2''
B: 21-1/4''

Maintenance:

Clean regularly with solvent-free cleaner
removing dirt and debris. Do not use high
pressure cleaners.

Replacement Parts

See label inside of fixture for LED replacement
part number.
Consult factory for all other replacement
components.
98 019
Updated: 03/30/21
98 019 1 of 2
