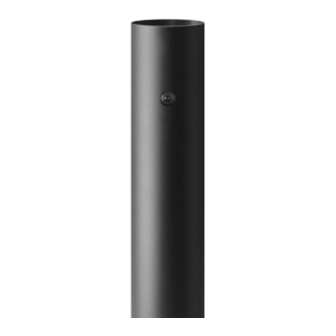

Bollard tube with integrated motion sensor

Advertisement

Quick Links

BEGA
Installation and Technical Information
Tools Required:
5mm hex key
Drill
Special tool (provided)
Protection Class: IP 65
Weight: 18.7 lbs
Notice to Installer for 99 658:
1. See page 3 for specific product safety warnings.
2. Fixture may be damaged if connected to conduit systems that contain water
- Article 300-5G of the National Electric Code requires that "Conduits or
raceway through which moisture may contact energized live parts shall be sealed
or plugged at either or both ends."
3. For proper installation, an accompanying bollard head must be selected with the
bollard tube.
4. 79 818 anchorage kit (included) must be installed in concrete pad/foundation.
5. It is recommended that when installing in planting areas the bollard base be
slightly elevated to avoid prolonged submerging during heavy rains.
6. Wet location listing does not imply suitability for exposure to standing water for
long periods of time.
7. LEDs are high-quality electronic components! Please avoid touching the light
output opening of the LED directly during installation.
8. Leave 5-pin connectore cap engaged if pairing BEGA System Bollard tube with
non-illuminated System Bollard head or if energizing System Bollard tube without
head attached.
79 818 anchorage installation:
1. Provide means to bring supply wiring to the bollard in accordance with local code.
The template has a 3" conduit hole for conduit entry.
2. Assemble anchorage kit. Unscrew the (3) hex bolts from the female couplers.
Remove each hex bolt and washer. Align each anchor bolt with the hole in the
template. Attach each anchor bolt to the template by replacing the washer and
hex bolt and tightening.
3. Determine the finished grade for the application. Use leveling hardware to adjust
template to desired finished height after pouring.
4. Install anchorage kit using either method:
A. Attach template to forming or cross bracing using the (2) nail holes
provided in the template. Level template properly. Pour concrete.
B. Insert anchorage assembly into poured concrete. Concrete must be
vibrated to ensure proper anchorage setting. Level template properly.
Relamping/Maintenance
No relamping required.
In the interest of product improvement, BEGA reserves the right to make technical changes without notice.
BEGA 1000 Bega Way, Carpinteria, CA 93013 (805)684-0533 Fax (805)566-9474 www.bega-us.com © Copyright BEGA-US 2019
Accessories
Please refer to the appropriate
accessory installation sheet for
further instruction when applicable.
Anchorage
79 818
Bollard Tube with integrated motion sensor
Dimensions
A:
7-1/2"
B:
32"

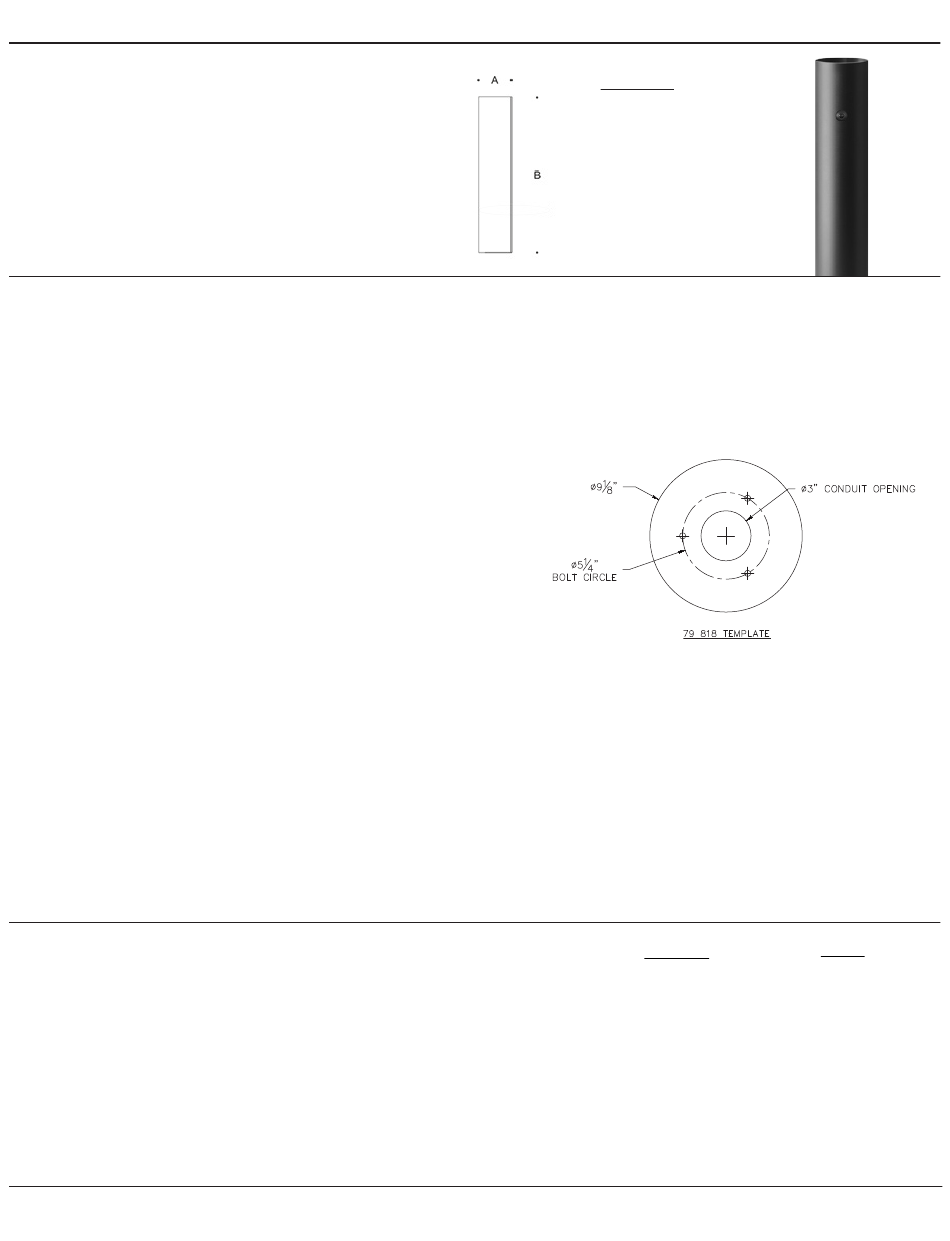

Figure 1: Anchorage Template
Replacement Parts
Description
Consult Factory
99 658
Part No
99 658
03/26/2019
1 of 4
