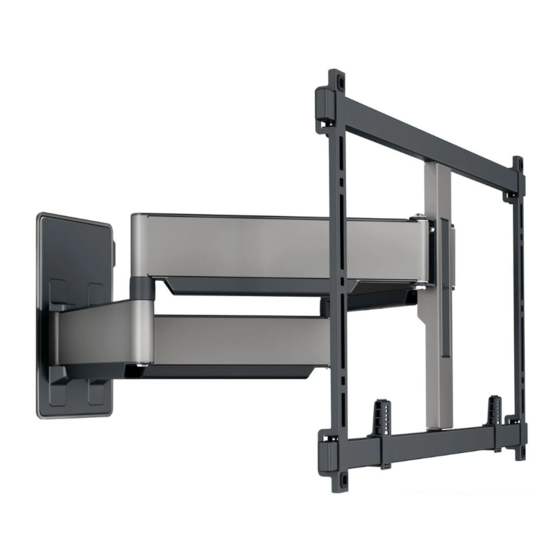

TVM 5855 Series
Full Installation Guide
Everything you need to get your TV safely on the wall, in no time
Before you start
...we just wanted to say thanks for choosing Vogel's. Smart choice.
And you're already making another smart choice – reading the manual! Keep reading to learn all about
safe, efficient installation, and how to use your new mount.
TVM 5855 Series - English
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for vogel's TVM 5855 Series
Summary of Contents for vogel's TVM 5855 Series
- Page 1 …we just wanted to say thanks for choosing Vogel’s. Smart choice. And you’re already making another smart choice – reading the manual! Keep reading to learn all about safe, efficient installation, and how to use your new mount. TVM 5855 Series - English...
- Page 2 Always store the product in a dry and safe place with a temperature between -10°C to +50°C. Handle and transport the product with care. Repack the product when transporting or not using it for a longer period of time. Lifting your TV is a two-person job. Don’t be bold! TVM 5855 Series - English...
-
Page 3: What's In Your Box
G. Washers Ø 18 mm H. Screws I. Plugs (fischer© DuoPower) J. Washers Ø 26 mm K. Covers L. Protective TV patches M. Cable fingers O. Spirit level P. Washers Ø 16 mm Q. Interface bolts R. Strip covers TVM 5855 Series - English... - Page 4 Don’t start without all the necessary tools: Crosshead screwdriver Drilling machine 10 mm or 25/64” concrete / brick drill (for concrete / brick walls only) 5 mm or 13/64” concrete / brick drill (for concrete / brick walls only) TVM 5855 Series - English...
- Page 5 5 mm or 13/64” wood drill (for wooden walls only) Stud finder (optional) Socket wrench Pencil M4 (4mm) Allen key Take care of your safety Who cares about looking cool? Always wear personal protective equipment: Eye protection Ear protection Safety shoes TVM 5855 Series - English...
- Page 6 4. Loosen the interface bars Ⓑ. Are you missing any bolts? Or need different ones? The friendly team at Vogel’s Consumer Care are waiting to help: vogels.com/contact Make sure bolts and spacers are positioned correctly. TVM 5855 Series - English...
- Page 7 5. Slide the interface bars Ⓑ through the interface strips Ⓒ. 6. Tighten the bars Ⓑ. 7. Attach the strip covers Ⓡ. 8. Put the interface bolt Ⓠ in the upper interface bar. Make sure you don't screw it in completely, yet. TVM 5855 Series - English...
- Page 8 1. Find the perfect spot for drilling with our DrillRight™ AR app and the included drilling template. 2. Drill the holes. How deep do you drill? Check the length of the screw (not the plug!) to find the right depth – this stops things from breaking. TVM 5855 Series - English...
- Page 9 3. Attach the wall mount Ⓐ to the wall with the screws Ⓗ, washers Ⓙ and plugs Ⓘ. Use the spirit level to level the wall mount. Make sure that you insert the two centre screws into the wall first. Lubricate the screws for easy screwing in. TVM 5855 Series - English...
- Page 10 2. Find the perfect spot for drilling with our DrillRight™ AR app and the included drilling template. Don’t destroy your belongings! The wall mount must always be attached to the studs. 3. Now for the fun part… drilling the holes. TVM 5855 Series - English...
- Page 11 Ⓐ. Make sure that you insert the two centre screws into the wall first. Lubricate the screws for easy screwing in. 5. Click the cover Ⓚ into place. Simple! TVM 5855 Series - English...
- Page 12 If your wall is a little special – for example, hollow bricks, metal stud walls, wood panels or plasterboard – or you simply aren’t sure, don’t worry! Just ask your installer, specialist supplier or the Vogel’s Consumer Care team at www.vogels.com/contact . TVM 5855 Series - English...
- Page 13 Lifting your TV is a two-person job. Don’t be bold! 3. Guide the cables through the cable arm covers, put them into the arms, and slide into a locked position. 4. Guide the cables with the cable fingers. TVM 5855 Series - English...
- Page 14 Job done now! Enjoy watching your TV! Handy features Having a cable mess? Do you need inspiration about how to hide and guide your cables or how to place other TV accessories? Take a look at our website vogels.com ! TVM 5855 Series - English...
- Page 15 TV. 2. Unplug the cables from your TV. 3. Lift your TV off of the interface bracket, and put it down somewhere safe. Again, lifting your TV is a two-person job. Always get help. TVM 5855 Series - English...
- Page 16 Share your feedback, and sign up to win Vogel’s products! Simply visit vogels.com/review for sharing or the Terms and Conditions. Confused? Unsure? Going crazy? There’s plenty of help waiting for you, online: info@vogels.com www.vogels.com/contact facebook.com/ VogelsForSure/ instagram.com/ vogels_official/ www.youtube.com/ c/VogelsForSure TVM 5855 Series - English...
-
Page 17: Simple Troubleshooting
If the space between your Push a small screwdriver between wall and wall and your wall mount is wall mount to push the snap hooks down to a little too tight, things can release. get tricky to reach. TVM 5855 Series - English... - Page 18 ‘Where can I request the correct bolts for my Whatever you need, simply contact your local TV (a service kit)?’ Vogel's dealer or Vogel's. Click here to contact Vogel's Consumer Care. ‘Where can I find installation videos?’ Click or tap the button on the front page of this manual.
- Page 19 Go green! We care about the planet. If you’re getting rid of the packaging or the TV mount itself, please visit your local recycling facility, or contact your municipal office. Recycling matters! TVM 5855 Series - English...
- Page 20 If the product is used for different equipment than is mentioned on or in the packing. Vogel’s Products BV - Hondsruglaan 93 - 5628 DB Eindhoven - The Netherlands Vogel’s Products BV 2022 © All rights reserved. TVM 5855 Series - English...
