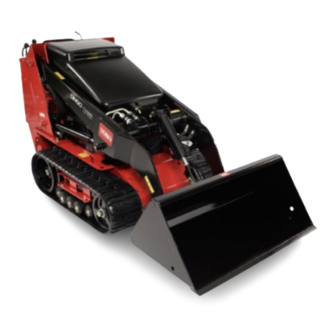

- Page 1 Form No. 3430-867 Rev A Loose Materials Bucket Compact Tool Carrier Model No. 22410—Serial No. 403154786 and Up *3430-867* A Register at www.Toro.com. Original Instructions (EN)
-
Page 2: Table Of Contents
Figure 2 1. Safety-alert symbol The bucket is a load-bearing attachment intended to be used on a Toro tool carrier. It is designed primarily for moving rock, dirt, sand, or other materials. Using This manual uses 2 words to highlight information. -
Page 3: Safety
Safety distribution changes with attachments. An empty load-bearing attachment makes the rear of the machine the heavy end, and a full load-bearing attachment makes the front of the machine the DANGER heavy end. Most other attachments make the front There may be buried utility lines in the work of machine the heavy end. -
Page 4: Bucket Safety
Bucket Safety Safety and Instructional Decals • Wear gloves, eye protection, long pants, substantial slip-resistant footwear, and hearing protection during operation or while adjusting or Safety decals and instructions are repairing the machine. easily visible to the operator and are located near any area of potential •... -
Page 5: Product Overview
1510 kg/m (94 lb/ft To ensure optimum performance and continued safety Wet, packed 1600 kg/m (100 lb/ft certification of the machine, use only genuine Toro Loam 1250 kg/m (78 lb/ft replacement parts and accessories. Replacement Granite, broken or large 1660 kg/m... -
Page 6: Operation
Operation Determine the left and right sides of the machine from the normal operating position. Installing and Removing the Attachment Refer to the Operator’s Manual for the traction unit for the installation and removal procedure. Important: Before installing the attachment, position the machine on a level surface, ensure that the mount plates are free of any dirt or debris, and ensure that the pins rotate freely. -
Page 7: Storage
Storage Before long-term storage, wash the attachment with mild detergent and water to remove dirt and grime. Paint all scratched or bare metal surfaces. Note: Paint is available from your Authorized Service Dealer. Store the attachment in a clean, dry garage or storage area. - Page 8 While the exposure from Toro products may be negligible or well within the “no significant risk” range, out of an abundance of caution, Toro has elected to provide the Prop 65 warnings. Moreover, if Toro does not provide these warnings, it could be sued by the State of California or by private parties seeking to enforce Prop 65 and subject to substantial penalties.
