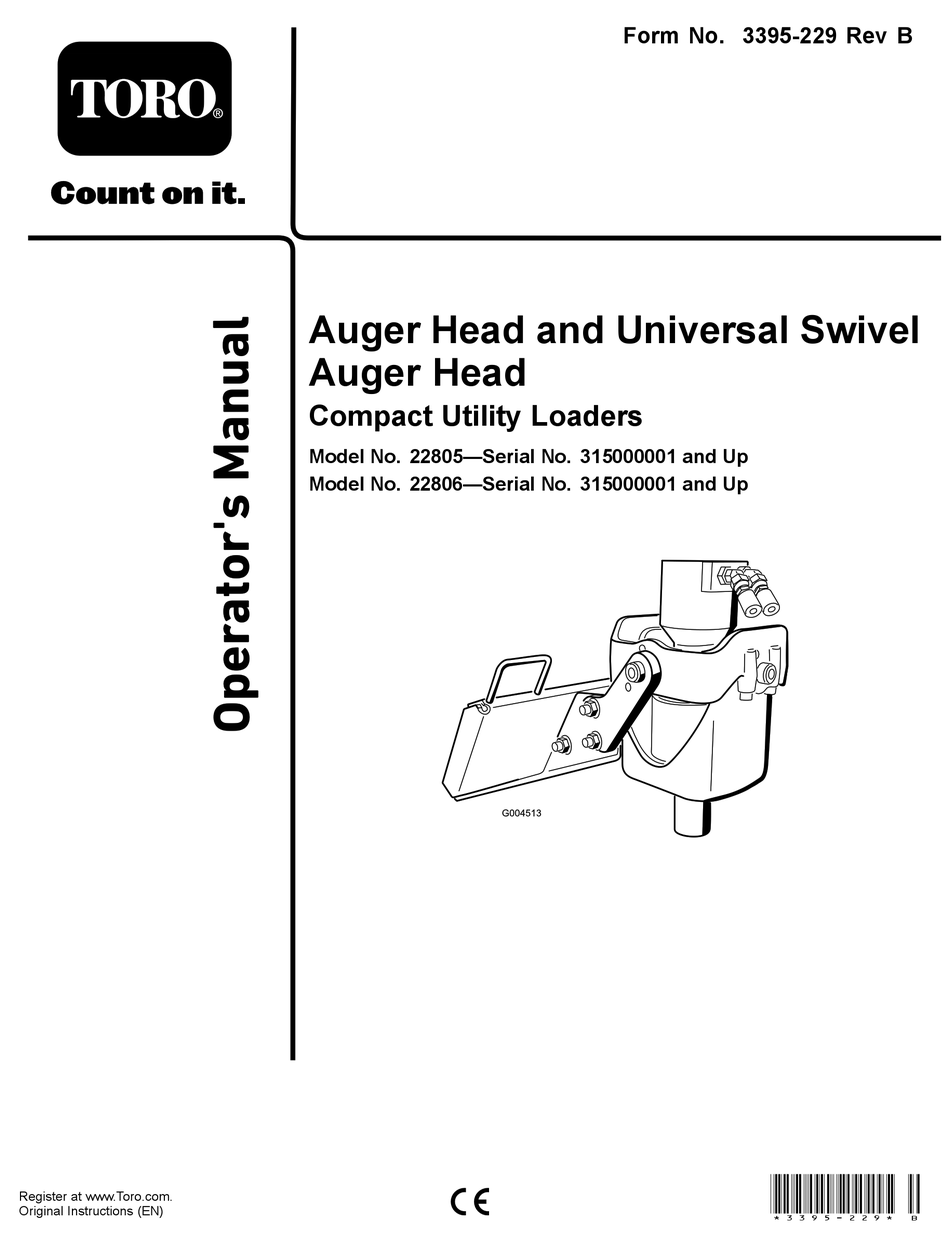

- Page 1 Form No. 3395-229 Rev B Auger Head and Universal Swivel Auger Head Compact Utility Loaders Model No. 22805—Serial No. 315000001 and Up Model No. 22806—Serial No. 315000001 and Up *3395-229* B Register at www.Toro.com. Original Instructions (EN)
- Page 2 The machine is a hydraulically powered auger attachment for Serial No. Toro compact utility loaders. It is designed to dig vertical holes in the earth for the installation of posts, plants, and This manual identifies potential hazards and has safety other construction and landscaping needs.
-
Page 3: Table Of Contents
Contents Safety Safety ................3 Improper use or maintenance by the operator or owner Stability Ratings............4 can result in injury. To reduce the potential for injury, Safety and Instructional Decals ......... 5 comply with these safety instructions and those in the Product Overview ............ -
Page 4: Stability Ratings
Stability Ratings WARNING If you do not fully seat the attachment locking To determine the degree of slope you can traverse with the pins in the attachment mount plate holes, the trencher installed on a traction unit, find the stability rating for the hill position you want to travel in the appropriate table attachment could fall off the traction unit severely below, then find the degree of slope for the same rating and... -
Page 5: Safety And Instructional Decals
Model 22805 Width 62 cm (24 inches) Length 40 cm (16 inches) Height 59 cm (23 inches) Weight 83 Kg (182 lb) Model 22806 Width 62 cm (24 inches) Length 42 cm (17 inches) decal105-0326 105-0326 Height 59 cm (23 inches) -
Page 6: Operation
3. Bolt and flange nut arms. 2. Cradle arm 1. If you are installing an auger on model 22806 drive 5. If using an extension with the auger, insert the end of head, position the drive head vertically, slide a bolt (1/2... -
Page 7: Digging A Hole
13. When the auger is vertical, tilt the attachment plate rearward, until the drive head contacts the attachment DANGER plate to stabilize the auger and keep it from swinging If you are using model 22806, excessive downward freely (Figure force may cause the bit to wobble uncontrollably which could tip the traction unit. -
Page 8: Removing An Auger
Removing an Auger 1. Raise the loader arms so the auger comes out of the hole. Note: If you have a 24-inch extension installed between the drive head and the auger, it may be necessary to raise the auger as high as possible and then move the traction unit backward to pull the auger the rest of the way out of the hole. -
Page 9: Maintenance
Maintenance Recommended Maintenance Schedule(s) Maintenance Service Maintenance Procedure Interval • Change the planetary gear case oil. After the first 50 hours • Grease the cradle arm pivot points. (Grease all fittings immediately after every washing.) Before each use or daily •... -
Page 10: Storage
Storage 1. Before long term storage, wash the attachment with mild detergent and water to remove dirt and grime. 2. Check and tighten all bolts, nuts, and screws. Repair or replace any damaged or worn part. 3. Ensure that all hydraulic couplers are connected together to prevent contamination of the hydraulic system. -
Page 11: Troubleshooting
Troubleshooting Problem Possible Cause Corrective Action The drive head does not operate. 1. Hydraulic coupler not completely 1. Check and tighten all couplers. connected 2. Defective hydraulic coupler 2. Check couplers and replace any that are defective. 3. An obstruction in a hydraulic hose 3. - Page 12 Notes:...
- Page 13 Notes:...
- Page 14 The method of transmission shall be electronic transmittal. This machinery shall not be put into service until incorporated into approved Toro models as indicated on the associated Declaration of Conformity and in accordance with all instructions, whereby it can be declared in conformity with all relevant Directives.
- Page 15 The Way Toro Uses Information Toro may use your personal information to process warranty claims, to contact you in the event of a product recall and for any other purpose which we tell you about. Toro may share your information with Toro's affiliates, dealers or other business partners in connection with any of these activities. We will not sell your personal information to any other company.
- Page 16 If for any reason you are dissatisfied with your Underground Dealer’s service or have difficulty obtaining guarantee information, contact the Toro importer. Australian Consumer Law: Australian customers will find details relating to the Australian Consumer Law either inside the box or at your local Toro Dealer.
