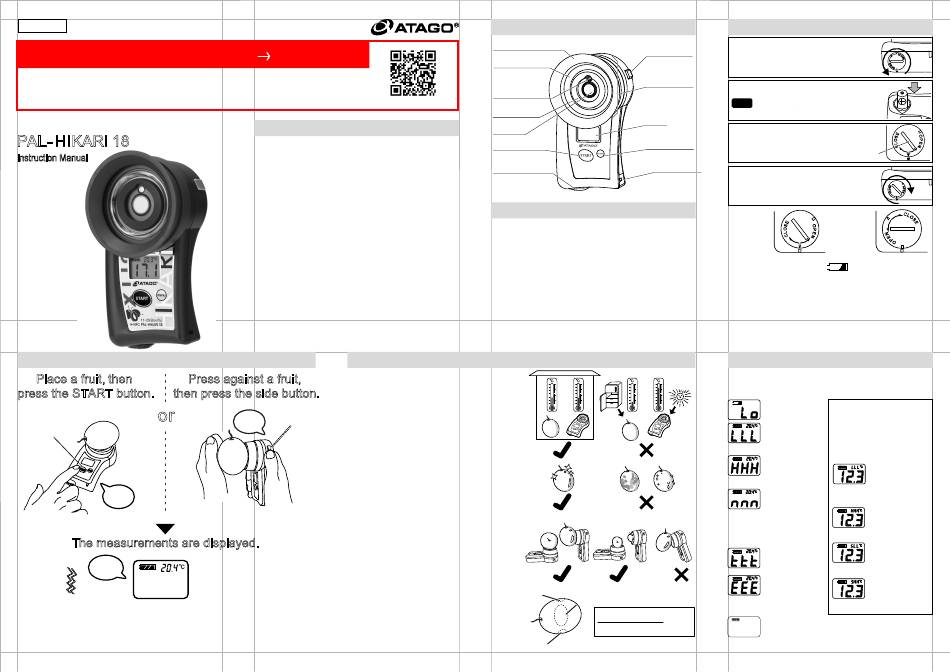

ATAGO 5468 Instruction Manual

5468-E02
The warranty period extension method 1 year 2 years
The warranty period will be extended from 1 year to 2 years when you register customer information.
ATAGO Logger NFC can also be downloaded at the same time.
https://www.atago.net/ur/index.php?l=en
Trouble scanning the code? Access this link

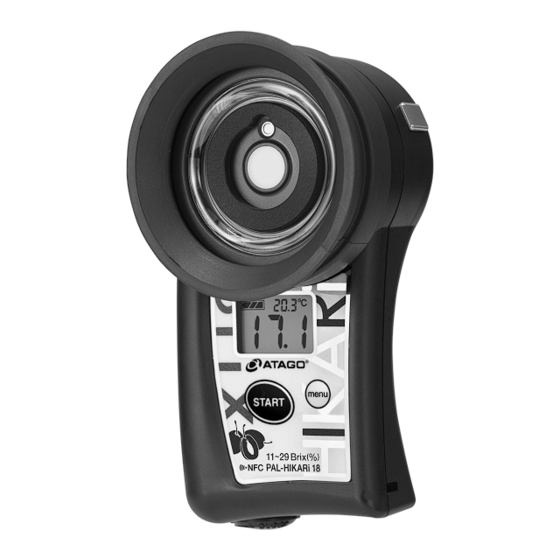

Digital Hand-held "Pocket" IR Brix Meter
PAL- HIKARi 18
Instruction Manual
Cat.No.5468
Measurement
Place a fruit, then Press against a fruit,
press the START button. then press the side button.
or
Press the
START button
Beep
Touch the fruit and do not move.
The measurements are displayed.
Beep
18.3
Depending on the variety, there may be a difference between the refractometer
(sugar meter) and the measured value. Please confirm the difference from the value
measured with your refractometer (PAL - 0 of the set when purchasing IR Brix Meter
x Brix Meter) and use the offset function as necessary. (Refer to "Offset Function" )
Introduction
Thank you for purchasing the instrument.
Read and follow all safety instructions
before operating the instrument.
Fairure to comply with the following instruc-
tions may result in personal injury or property
damages.
This instrument measures amount of light
absorbed by shining the near infared light to
the fruit then converts to Brix (sugar level) to
display.
Brix (sugar level) can be measured with no
need to cut and squeeze the fruits.
Measurment variance may be seen depending
on the variety and harvest timing. This instru-
ment is equipped with offset function to match
the value in such cases.
Acclimate the fruit and this instrument
●
to ambient temperature.
The temperature difference between
the surface and the inside of the fruit,
Press the
and temperature difference between
Beep
side button
this instrument and the fruit may affect
the measurement values.
Especially when measuring refrigerated
fruits, be sure to let the fruits acclimate
to the ambient temperature.
Clean the surface of the fruits.
●
Do not measure the spoiled spots.
T h e i n s t r u m e n t m a y n o t m e a s u r e
correctly when there is water droplets,
dust or scar, and bruising soft spots.
● Place the sample stage to the fruit.
Be sure to avoid any spacing between
the fruit and the outer cushion to avoid
the external light interference. If the
＜LCD Auto Shut-off＞
cushion is deteriorated, please replace
The instrument will turn itself off
it with a brand new cushion. (Refer to
after 30 seconds of inactivity.
"How to change the cushion")
To manually turn it off, hold down
the START button for more than
Sugar level varies depending on
●
3 seconds.
the measured area.
Example for measurement value: Take
few measurements from the same fruit,
then compute and use the average.
Silicon cushion R
Light emitting part
Radiation
temperature
sensor
QR code
Cushion RS
Receiver
START button
Battery compartment
Contents
・Main unit (with silicone cover)
・Instruction Manual(this book)
・Inspection Report
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・Cushion RS (for replacement)
・AAA alkaline batteries
※AAA alkaline batteries are included.
Measurement tips and precautions
17.7
18.4
18.2
Parts
1. Insert a coin in the groove on the battery
Side button
compartment cover. Turn the coin
counterclockwise to remove the cover.
Sample stage
2. Insert two batteries
Observe the correct polarity.
Note
LCD
3. Align the cover and push it down.
Menu button
Lanyard hole
4. Close the battery compartment cover by
pushing the cover in with a coin in the groove
and turning it clockwise until it stops.
When the
cover is
1
・・・・・・・・・・・・・・・・・・・・
open
1
・・・・・・・・・・・・・・・・・・・・・
1
3
・・・・・・・・・・・・・・・・・・・・
・ About battery indicator
2
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
When the battery icon indicates the low power
level , replace both batteries with a brand new
set of AAA alkaline batteries (1.5V).
* Check the expiration dates on batteries before
purchase.
When there is an operation error or malfunction, the
below error message will show with alarm sound or alarm
vibration can for warning.
contact with fruit.
When correct measurements are
not achievable due to interference
from external light.
Replace the batteries. Contact
ATAGO if this error persists.
17.7+18.2+18.4
＝ 18.1
3 Full
（Example）
Replacing the Batteries
Groove
When the
cover is
closed
Error Meassages
The battery is low.
When it is outside of temperature
compensation range.
Main unit' s temperature
Measurement was
※
error will preferentially
taken for fruits with Brix
display when the main unit's
l o w e r t h a n t h e
and fruits' temperatures are
measurement range.
both out of range.
Measurement was
taken for fruits with
Measurement
Brix highter than the
was taken when
measurement range.
the unit' s
temperature was
Measurement was
4˚C or lower.
taken while the sample
s t a g e w a s n o t i n
Measured when
the main unit's
temperature is
exceeding 45℃.
Measurement was
There is a temperature
taken when the
difference between the
fruit' s temperature
fruit and the main unit.
was 4˚C or lower.
The instrument is
Measured when
faulty.
t h e f r u i t ' s
temperature is
exceeding 45℃.
When the history of measured data reaches
100. Turn OFF the NFC Function or Delete
Data History.
