Summary of Contents for ATAGO DR-M2

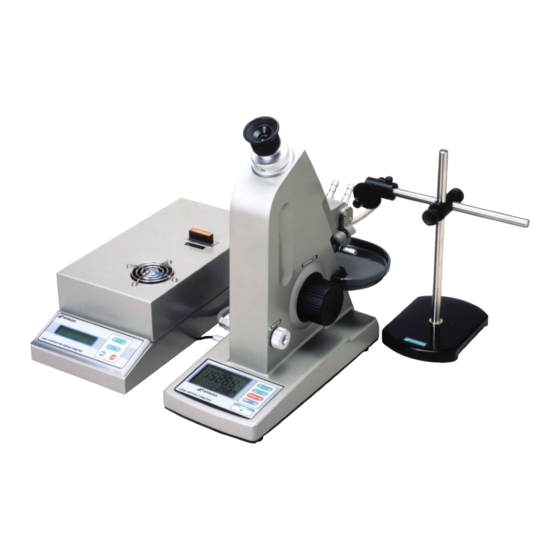

- Page 1 1410-E21 Multi-wavelength Abbe Refractometer Cat.No.1410 Instruction Manual Cat.No.1414 PRODUCT REGISTRATION & WARRANTY CARD https://www.atago.net/registration/ english/registration.php...
- Page 8 Do not use the power cable if damaged or broken. If used, fire, electrical shock, or burns may result. For a new power cable, contact your ATAGO distributor. CAUTION When disconnecting the power cable from When connecting the power cable to a mains...
- Page 9 Handling of plug CAUTION Do not insert or disconnect the power plug with wet hands. Connection of circulating constant temperature bath WARNING Pay careful attention to hot circulating For connecting a circulating constant temperature bath with the refractometer, water. make sure to use the elicon tube made of vinyl chloride .
-
Page 14: Unpacking And Setup
3. Unpacking and setup (1) Unpacking ① Take the DR-M2/DR-M4 out of the packing case and check to see whether there is any external damage observed or not. ② Make sure that the following things have been contained in the packing case. -
Page 16: Names And Functions Of Main Parts
4. Names and functions of main parts (1) Refractometer (Figures 4-1,4-2 and 4-3) Eyepiece For observing the boundary line between light and shade refraction field in the vision. On observing the eyepiece, turn it to bring the cross hairs into focus. The boundary line cannot be seen without sample on the prism. - Page 31 *Setting the reference point for the DR-M2 Setting of the reference point for the DR-M2 should be made with purified water. In function mode 4 the mode on setting of the reference point , make the boundary line of the purified water meet at the intersection point of the cross hairs and press the SET key.
- Page 33 (Figure 9-6). (5) Adjusting boundary line Figure Press the LAMP key of the light source unit. The "LAMP" indication on the ATAGO display of the light source unit becomes "ON". (Figure 9-7) LAMP LIGHTSOURCE FOR REFRACTOMETER...
- Page 34 ① panel of the refractometer. SELECT ℃ Such the indications as shown in Figure 9-12 appear on the display. PRINT ATAGO ABBE REFRACTOMETER Press the ∨∧ key so that the display ② shows [4] as the selected function Figure 9-12 mode number.
- Page 35 The fourth decimal place of the refractive ① index blinks (Figure 9-16). SELECT ℃ Set the indicated refractive index to the ② PRINT ATAGO value "Refractive index of distilled water" ABBE REFRACTOMETER with the ∧, ＜, and ＞ keys. ∨, Figure 9-15 Press the SET key on the display of the ③...
- Page 67 RE-8100 Test piece A RE-1195 nD : 1.516( ), with monobromonaphthalene as contact liquid For practicing solid matter measurement (For DR-M2) Test piece C RE-1197 nD : 1.620( ), with monobromonaphthalene as contact liquid For setting reference point (For DR-M4)
- Page 69 (2) Replacement of desiccant The green color of the desiccant gradually fades as it gets close to saturation. Check the desiccant regularly through the glass window on the left side of the main unit. When it becomes pale green, replace the desiccant according to the following procedure.
- Page 71 Transient overvoltage is the Categoryll according to the Installation Categories Overvoltage Categories Power consumption 160VA Dimensions Refractometer:13 29 31 cm Light source unit:15 33 11 cm Refractometer: 6kg Light source unit: 3.0kg Weight Measurement range of refractive index of DR-M2, DR-M4 varies depending on wavelength.
- Page 73 ATAGO CO.,LTD. Service Center ATAGO has Authorized Service Centers around the world. Below is the list of countries where you can find an ATAGO Authorized Service Center. If your ATAGO instrument requires servicing please contact ATAGO at the following e-mail address.
- Page 74 Headquarters : The Front Tower Shiba Koen 23rd Floor 2-6-3 Shiba-koen, Minato-ku Tokyo 105-0011, Japan TEL: 81-3-3431-1943 FAX: 81-3-3431-1945 overseas@atago.net http://www.atago.net/ 14432 SE Eastgate Way Suite 450 Bellevue, WA 98007 U.S.A. TEL: 1-425-637-2107 FAX: 1-425-637-2110 customerservice@atago-usa.com TEL: 91-22-28544915 / 40713232 customerservice@atago-india.com TEL: 66-21948727-9 ,66-21171549 customerservice@atago-thailand.com...
