Summary of Contents for Hunter Thaden

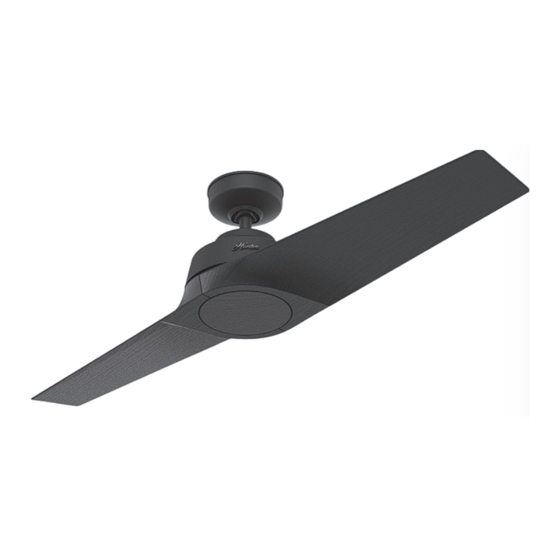

- Page 1 Thaden Installation Manual Model: 50025 Matte Black 50026 Matte White Fan weight ±2 lbs: 15.9 lbs (7.2 kg) ©2020 Hunter Fan Co. PG3855 r042420...
- Page 2 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualified electrician. c.2 - Use only Hunter replacement parts. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 3 We recommend that you pull everything out of the box and lay it out. We have grouped the drawn components below with the hardware you’ll need for those Hunter Pro Tip: parts. The screws below are drawn to scale to make it easier to identify what piece of hardware is needed to install each component.
-
Page 4: Choosing The Right Installation Location
A little more information on Angled Mounting: For optimum performance and appearance, a longer downrod should be used with your Hunter ceiling fan when installing on high or angled ceiling. If your ceiling is angled greater than 34° you will also need an Angled Mounting Kit. -
Page 5: Installing The Ceiling Bracket
You have two options for installation. Pick which one works best for your location. Remove any existing Hunter Pro Tip: bracket prior to installation. Only use the provided Hunter ceiling bracket that came in your fan’s box. The machine screws are the ones that came with your outlet box. -
Page 6: Installing The Blades
1886 Installing the Blades: 5 of 11 Blade Screw IMPORTANT NOTE: Make sure blade assembly is installed to the right holes. Installing it incorrectly could result in your fan not functioning. Rotate the fan motor upside down and place into one of the cavities in the Rotate the blade assembly and align with the motor.There are five pairs of holes in packaging. -
Page 7: Hanging The Fan
Follow below if you are using the downrod that came pre-assembled in your box. Need to install a longer or shorter downrod? Check out the guide at the end of this manual. Hunter Pro Tip: The ground wire attached to the downrod is approximately 8 inches. -
Page 8: Wiring The Fan
Follow these steps to get your fan wired quickly and safely. Follow the route below that best matches your wall switch setup. If you are unfamiliar with wiring or uncomfortable doing it yourself, please contact a qualified electrician. Hunter Pro Tip: Here is how to connect the wires: Push the bare metal ends of the wires together and slide a wire nut over them. -
Page 9: Installing The Canopy
1886 Installing the Canopy Insert the two canopy screws found in the hardware bag. Canopy Screw Lift the canopy into place so that the screw holes are aligned. Installing the Cap Notch Attach the cap by lifting and turning clockwise one third of a full turn of the cap until it stops. -
Page 10: Preparing The Remote
1886 Preparing the Remote For your convenience, a remote function card The remote transmitter is already is packed in with your remote. paired to the receiver and ready to use. Dimming mode is off by default. Note: If you need to pair your remote, To access the battery compartment, turn fan power off and back on at the remove the the battery door to the... -
Page 11: Troubleshooting
• Turn the power off, support the fan carefully, and check that the hanger ball is properly seated. • If wobble persists please contact customer support. Do not use the Hunter balance kit due to the unique design of the blades. Noisy Operation •... -
Page 12: Limited Lifetime Warranty
Hunter instructions, accidental damage caused by the fan owner or related parties, Please do not ship your fan or any fan parts to Hunter. Delivery will be refused. modifications to the fan, improper or incorrectly performed maintenance or repair,...
