Mounting Requirements - M-system R7I4DML3-DC32A Instruction Manual

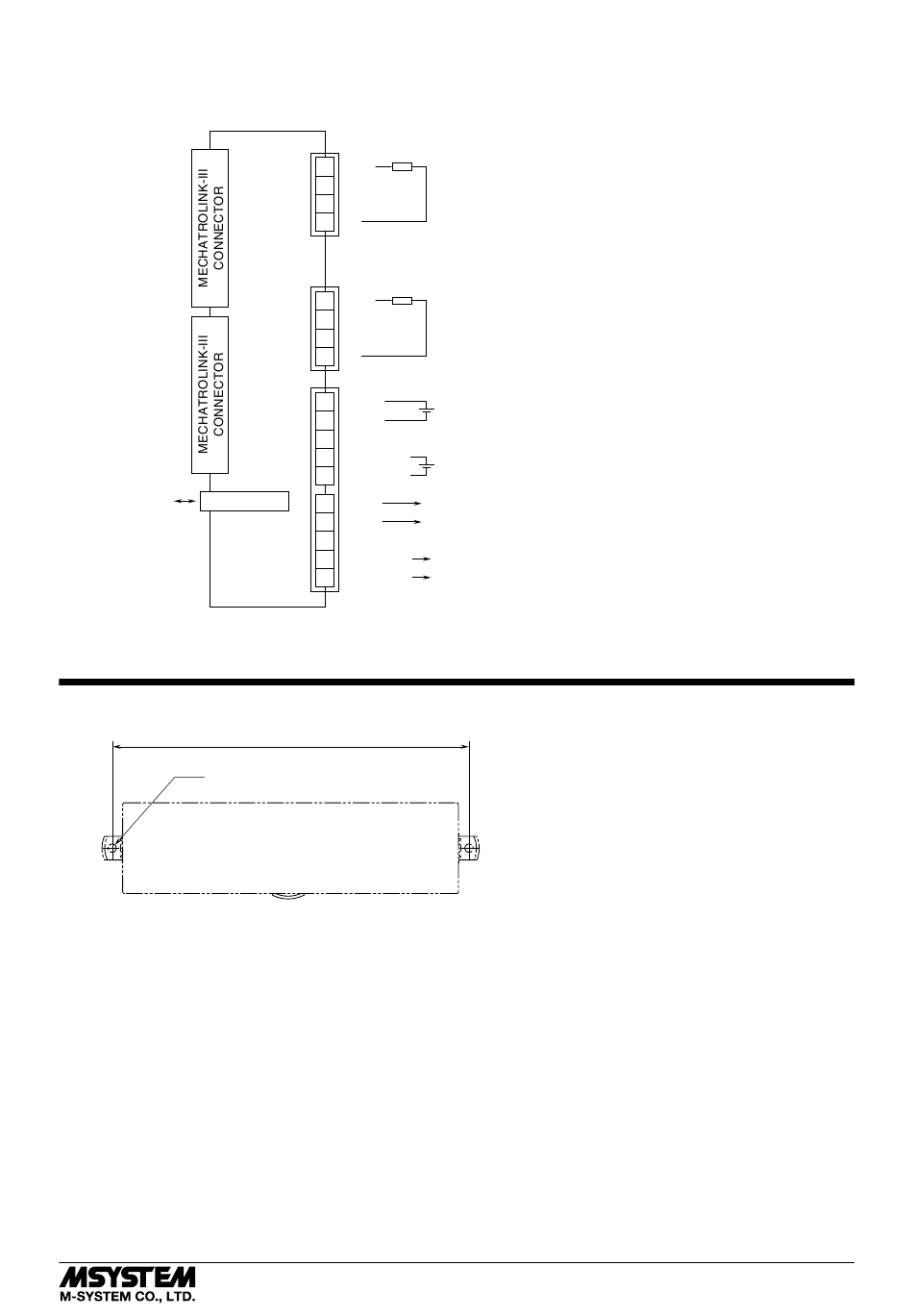

■ CONNECTION DIAGRAM
Note: In order to improve EMC performance, bond the FE terminal to ground.
Caution: FE terminal is NOT a protective conductor terminal.
*1
*1
CONFIGURATION
USB Connector
CONNECTOR
*1. The network cable can be connected to either one.

MOUNTING REQUIREMENTS

2−M4
1
+24V
2
NC
OUTPUT Y0
3
NC
4
Y0
1
+24V
2
NC
OUTPUT Y1F
3
NC
4
YF
1
PWR+
2
PWR–
3
FE
4
SNSR.EXC+
5
SNSR.EXC–
1
PWR+
POWER SUPPLY (OUT)
2
PWR–
3
FE
4
SNSR.EXC+
5
SNSR.EXC–
unit: mm [inch]
175 (6.89)
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
•
•
•
•
•
POWER SUPPLY (IN)
SENCOR EXCITATION
(IN)
SENCOR EXCITATION
(OUT)
R7I4DML3-DC32A
