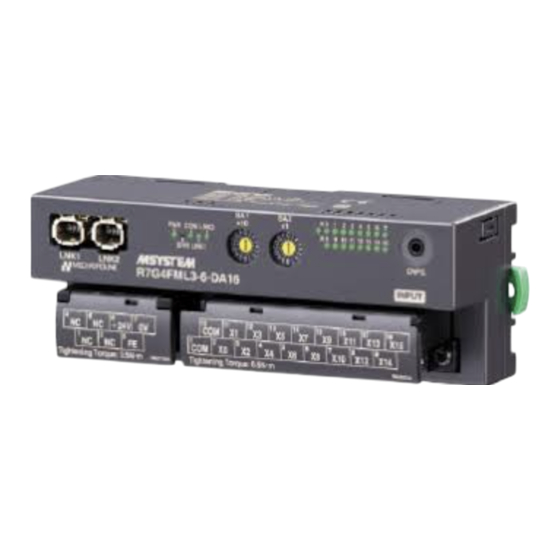

M-system R7G4FML3-6-DA16 Instruction Manual

Pnp/npn discrete input module

Advertisement

Quick Links

INSTRUCTION MANUAL
PNP/NPN DISCRETE INPUT MODULE
(16points, MECHATROLINK-III)
BEFORE USE ....
Thank you for choosing M-System. Before use, please check
contents of the package you received as outlined below.
If you have any problems or questions with the product,
please contact M-System's Sales Office or representatives.
The unit is for use in general industrial environments,
therefore may not be suitable for applications which require
higher level of safety (e.g. safety or accident prevention sys-
tems) or of reliability (e.g. vehicle control or combustion con-
trol systems).
For safety, installation and maintenance of this unit must
be conducted by qualified personnel.
■ PACKAGE INCLUDES:
Discrete input module .................................................. (1)
DIN rail mounter slider ............................................... (2)
■ MODEL NO.
Confirm that the model number described on the product is
exactly what you ordered.
■ INSTRUCTION MANUAL
This manual describes necessary points of caution when
you use this product, including installation, connection and
basic maintenance procedures.
■ SYMBOLS USED ON THE PRODUCT
Functional earth symbol is marked on terminal cover of
Power Supply Terminals for UL.
POINTS OF CAUTION
■ CAUTION
• If the unit is not used in a manner not specified by M-
system, the protection provided by the equipment may be
impaired.
■ CONFORMITY WITH EU DIRECTIVES OR UL
• The actual installation environments such as panel con-
figurations, connected devices and connected wires may
affect the protection level of this unit when it is integrated
in a panel system. The user may have to review the CE
requirements in regard to the whole system and employ
additional protective measures to ensure CE conformity.
• This unit is suitable for Pollution Degree 2.
• Altitude up to 2000 meters.
• The power supply and the external power supply must
satisfy SELV requirements in accordance with the cur-
rently applicable safety standards. (SELV = Safty Extra
Low Voltage).
• Install inside an industrial control panel or equivalent
for UL.
■ POWER INPUT RATING & OPERATIONAL RANGE
• Locate the power input rating marked on the product and
confirm its operational range as indicated below:
24V DC rating: 24V ±10%, approx. 75mA
■ GENERAL PRECAUTIONS
• Before you remove the unit or mount it, turn off the power
supply and input signal for safety.
• Before you remove the terminal block or mount it, turn off
the power supply and input signal for safety.
■ ENVIRONMENT
• Indoor use
• When heavy dust or metal particles are present in the
air, install the unit inside proper housing with sufficient
ventilation.
• Do not install the unit where it is subjected to continuous
vibration. Do not subject the unit to physical impact.
• Environmental temperature must be within -10 to 55°C
(14 to 131°F) with relative humidity within 30 to 90% RH
in order to ensure adequate life span and operation.
■ WIRING
• Do not install cables close to noise sources (relay drive
cable, high frequency line, etc.).
• Do not bind these cables together with those in which
noises are present. Do not install them in the same duct.
• Be sure to close the terminal cover for safety.
■ AND ....
• The unit is designed to function as soon as power is sup-
plied, however, a warm up for 10 minutes is required for
satisfying complete performance described in the data
sheet.
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
R7G4FML3-6-DA16
R7G4FML3-6-DA16
MODEL
EM-7774-A Rev.2
P. 1 / 10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R7G4FML3-6-DA16 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for M-system R7G4FML3-6-DA16

  • Page 1 (16points, MECHATROLINK-III) BEFORE USE ..POINTS OF CAUTION Thank you for choosing M-System. Before use, please check ■ CAUTION contents of the package you received as outlined below. • If the unit is not used in a manner not specified by M-...
  • Page 2: Front View

    R7CFG, please refer to the R7CFG Users Manual. Input 10 Input 11 (*) Factory setting Input 12 Input 13 Input 14 Input 15 EM-7774-A Rev.2 P. 2 / 10 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 3: Mounting Instructions

    1) Insert the two DIN rail mounter sliders until it clicks once, as shown below. 2) Mount the unit with M4 screws referring the External Dimensions. (Torque: 1.4 N·m) EM-7774-A Rev.2 P. 3 / 10 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 4: External Dimensions

    INPUT CONNECTION EXAMPLES PNP Connection + − NPN Connection + − 24V DC *1. The network cable can be connected to either one. EM-7774-A Rev.2 P. 4 / 10 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 5: Mounting Requirements

    Does nothing except sending back current status BYTE COMMAND RESPONSE REMARKS NOP (00H) NOP (00H) No operation command Not used CMD_CTRL CMD_STAT Refer to CMD_CTRL/CMD_STAT. ≥ 4 Reserve EM-7774-A Rev.2 P. 5 / 10 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 6 Not used CMD_CTRL CMD_STAT Refer to CMD_CTRL/CMD_STAT. 0000H 0000H Clear current alarm or warning. Other than 00H is not available. ≥ 6 Reserve EM-7774-A Rev.2 P. 6 / 10 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 7 CH2 IN HI CH3 OUT LO CH3 IN LO CH3 OUT HI CH3 IN HI Not used Not used Not used Not used EM-7774-A Rev.2 P. 7 / 10 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 8 Alarm 8: FCS error, 9: Command data not received, A: Synchronous frame not received, B: Synchronization time interval error, C: WDT error EM-7774-A Rev.2 P. 8 / 10 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 9 Sub Device 1 Version – Sub Device 2 Name – Sub Device 2 Version – Sub Device 3 Name – Sub Device 3 Version – EM-7774-A Rev.2 P. 9 / 10 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 10 R7G4FML3-6-DA16 I/O DATA DESCRIPTION DISCRETE INPUT Input 0 Input 1 Input 2 Input 3 Input 7 Input 8 Input 15 0:OFF 1:ON EM-7774-A Rev.2 P. 10 / 10 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
