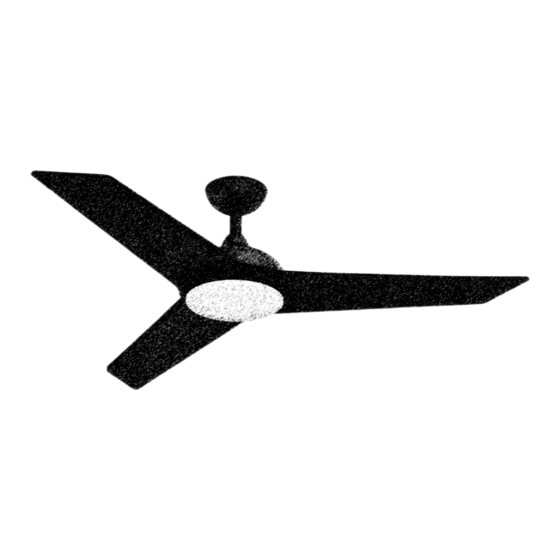

Craftmade Beckham BEK54 Series Installation Manual

Hide thumbs Also See for Beckham BEK54 Series:

Installation manual (39 pages)

Table of Contents

Quick Links

Download this manual

Beckham

Installation Guide

For Model:

BEK54*

*BNK finish is Indoor Use ONLY

WARNING: DC Motor

will not operate until

blades are installed

APPROVED FOR USE

IN DAMP LOCATIONS*

E192641

net weight of fan: 16.10 lb (7.30 kg)

READ THESE INSTRUCTIONS AND

SAVE THEM FOR FUTURE USE

Need help?

Do you have a question about the Beckham BEK54 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Craftmade Beckham BEK54 Series

Page 1: Table Of Contents
READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE Beckham Installation Guide For Model: Table of Contents: BEK54* Safety Tips. pg. 3 Unpacking Your Fan. pg. 4 Parts Inventory. pg. 4 *BNK finish is Indoor Use ONLY Installation Preparation. pg. 5 Hanging Bracket Installation.
Page 2 Activating Your New Smart Fan; Downloading the Bond Home App • Using your smart device, navigate to the application store (Apple App store or Google Play), download the free Bond Home app and create account. • Ensure the fan and receiver are receiving power from the house by supply using the remote control to turn the fan and light ON and OFF.
Page 3: Safety Tips
* Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Distributed by: Craftmade, 3901 S 20 Avenue, DFW Airport, TX, 75261; 1-800-486-4892 NOTE: The important safety precautions and instructions appearing in the manual are not meant to cover all possible conditions and situations that may occur.
Page 4: Unpacking Your Fan
1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs. Check against parts inventory that all parts have been included.
Page 5: Installation Preparation
3. Installation Preparation. blade edge To prevent personal injury and damage, ensure that inches 10 feet the hanging location allows the blades a clearance of (3.05m) (76cm) 10 feet (3.05m) from the floor and 30in. (76cm) from any wall or obstruction. This fan is suitable for room sizes up to 400 square 12ft.
Page 6: Fan Assembly. Pgs
5. Fan Assembly. stop pin set screw Remove hanging ball from downrod provided by loosening set screw on hanging ball. Lower hanging hanging ball ball and remove stop pin and then slide hanging ball off of the downrod. [Refer to diagram 1.] Loosen yoke set screws and nuts at top of motor diagram 1 housing.
Page 7 5. Fan Assembly. (cont.) With the hanging bracket secured to the safety cable loop wood outlet box and able to support the fan, you are ceiling now ready to hang your fan. Grab the fan joist firmly with two hands. Slide downrod through wood screw opening in hanging bracket and let hanging and washer...
Page 8: Wiring
6. Wiring. WARNING: Turn off circuit breakers to white supply wire current fixture from breaker panel and be sure switch is turned to the OFF position. black supply wire ground (green CAUTION: Be sure outlet box is properly or bare) grounded and that a ground wire (GREEN or ground (green or bare) Bare) is present.
Page 9: Canopy Assembly
7. Canopy Assembly. Locate 2 screws on underside of hanging bracket and remove screw closest to the open end of the hanging bracket. Partially loosen the other screw. Lift canopy to hanging bracket hanging bracket. Place rounded part of slotted hole in screw canopy over loosened screw in hanging bracket and push up.
Page 10: Light Kit Assembly
9. Light Kit Assembly. Remove 1 screw from motor plate on motor housing underside of motor housing and partially loosen the other 2 screws. Align slotted holes in fitter plate with loosened screws in motor plate, allowing molex connectors to come through center hole in motor plate fitter plate.
Page 11: Automated Learning Process./Activating Code
10. Automated Learning Process./Activating Code. CAUTION: The remote control transmitter can be programmed to multiple receivers or fans. If this is REMOTE CONTROL (back) not desired, turn wall switch off to any other programmable receiver or fan. Remove battery cover on back side of remote control transmitter.
Page 12: Remote Control Operation
11. Remote Control Operation. REMOTE CONTROL I I I Fan SPEED buttons--1: Use to control ceiling fan speeds 1-6 Fan OFF button--2: Use to turn the fan off REVERSE function button--3: Use to control fan direction LIGHTING button--4: Use to control down-light and up-light (if applicable) IMPORTANT : The Automated Learning Process takes approximately 5 minutes to complete.
Page 13: Smart Ceiling Fan Wi-Fi Control
12. Smart Ceiling Fan Wi-Fi Control (Optional) Without Wi-Fi activation, you will not enjoy the expanded features and functionality of your ceiling fan: Breeze speed setting, Creating Schedules and Voice Activation. To enjoy all the potential of your new device, refer to the following steps to complete Smart setup.
Page 14: Testing Your Fan
13. Testing Your Fan. It is recommended that you test fan before finalizing installation. Restore power from circuit box and wall switch (if applicable). Test fan speeds with the different fan speed buttons (I - VI) on remote control. Test the light ON/OFF function by pressing the button;...
Page 15: Troubleshooting
WARNING: Failure to disconnect power supply prior CRAFTMADE LIMITED LIFETIME WARRANTY: to troubleshooting any wiring issues may result in CRAFTMADE warrants this fan for use as intended serious injury. under the following provision: CRAFTMADE will replace any fan which has faulty performance due to a Problem: Fan fails to operate.
